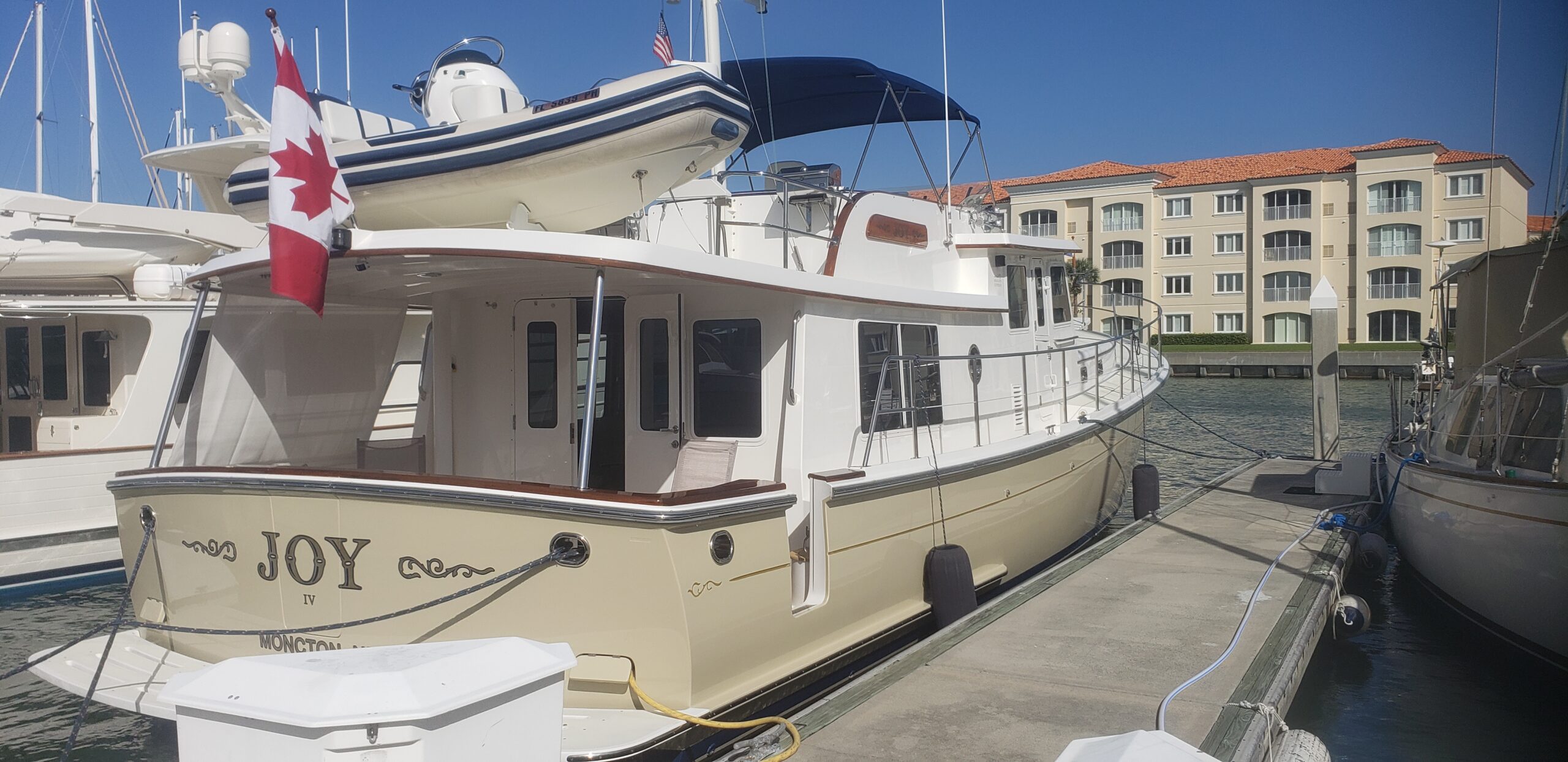

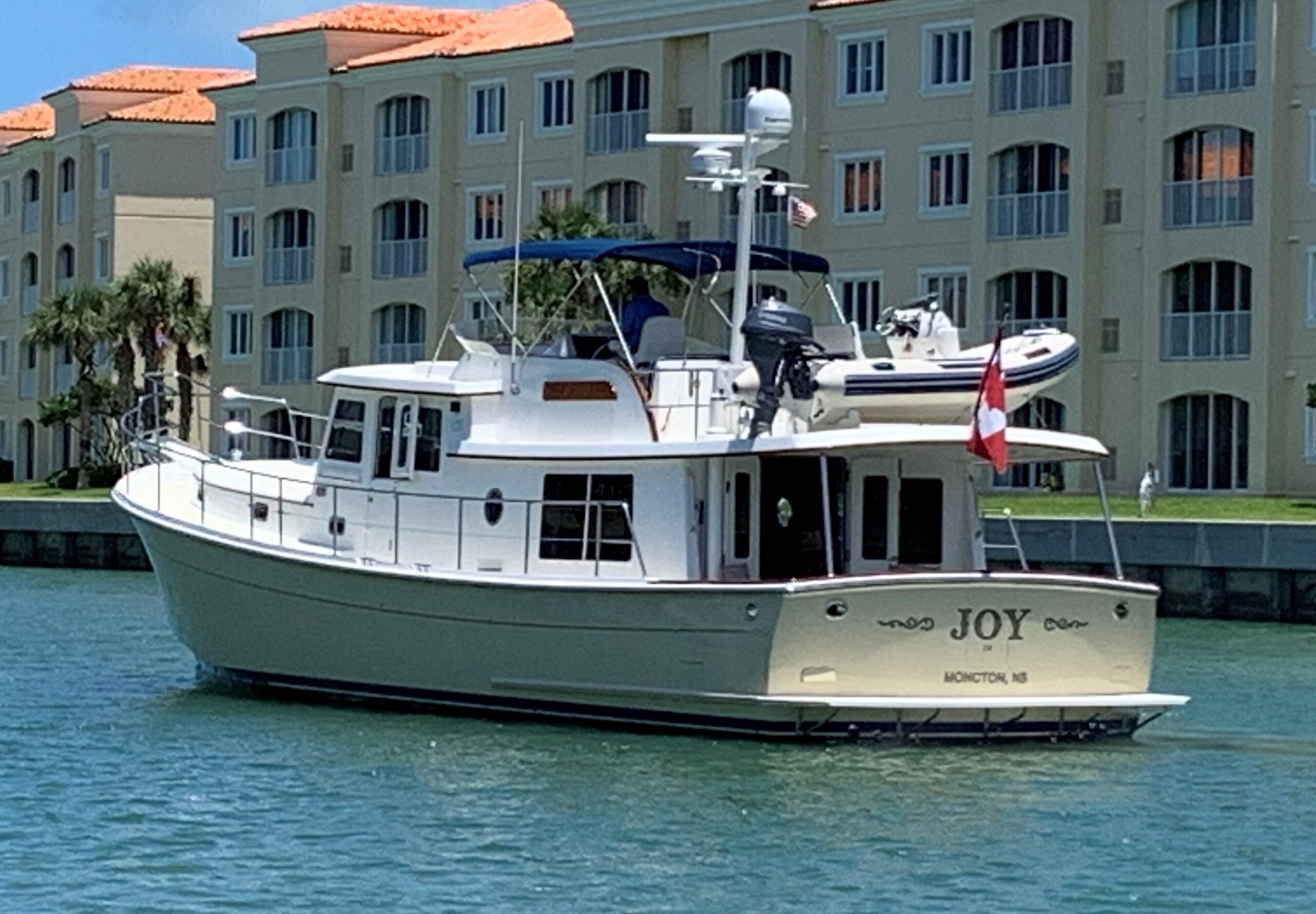

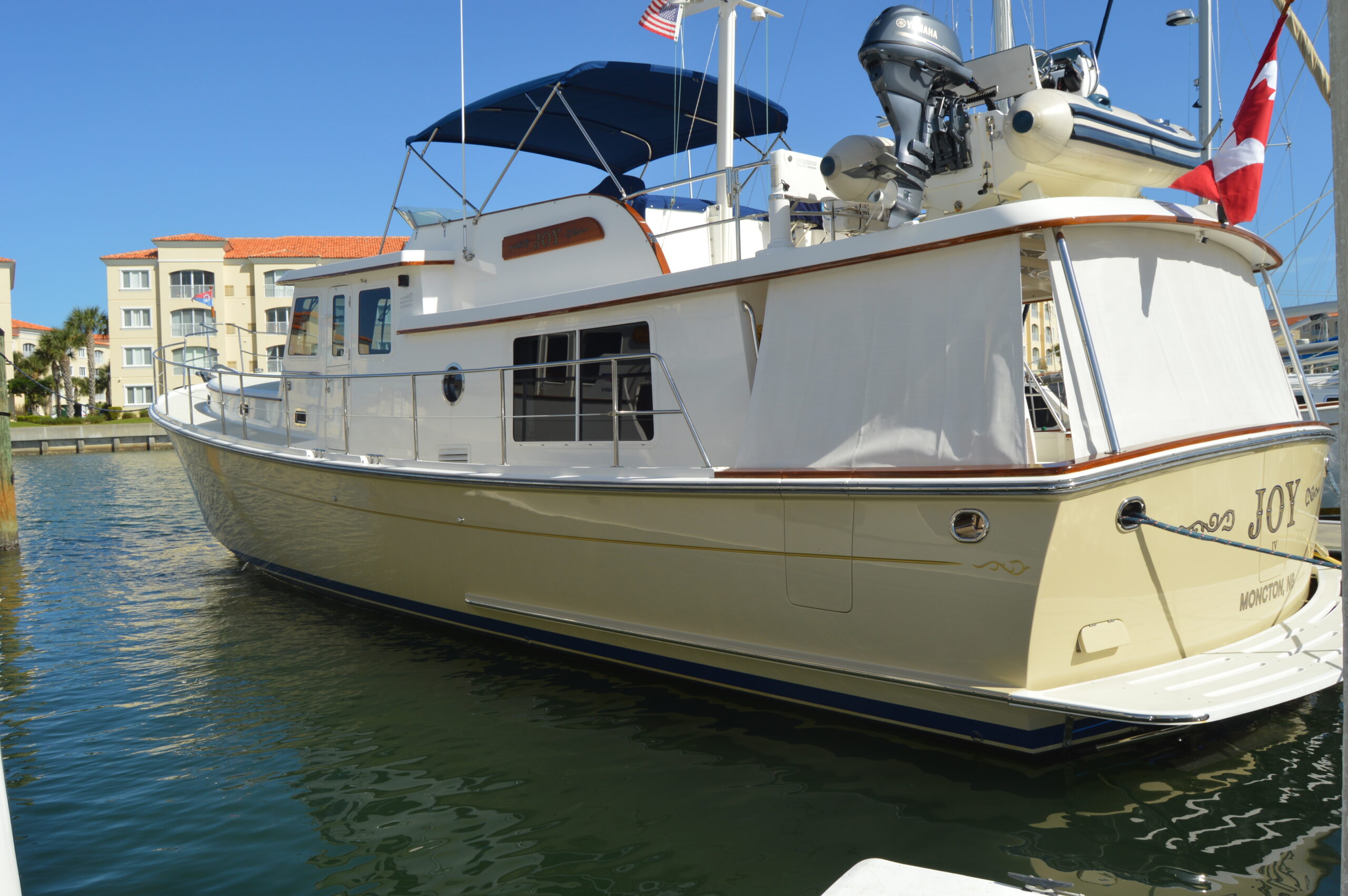

Joy IV is an immaculately maintained, one-owner 2008 Krogen Express 52′ wearing elegant Tan hullsides w/ complementary Royal Blue canvas.  She was commissioned in 2011 and which is reflected in her electronics, tender, etc. As her owners are snowbirds, she’s spent her summers in indoor storage (May through October) so her topsides, brightwork, and canvas are near perfect.  With under 2000 hours, her twin 480 hp Yanmar diesels are barely broken in and ready to provide her captain with mid to upper teen high cruise capabilities or efficient trawler-like cruise speeds between 8 and 9.5 knots.  Powerful Side Power bow and stern thrusters make close quarters handling a breeze.  Her complementary interior appointments, in various shades of Blue, include fabulous Stressless recliners in the salon and custom rugs throughout.  With a spacious, easy to board cockpit, French doors into the salon, galley up layout, plenty of storage, bright windows, and surprising headroom, her legendary Krogen livability is obvious everywhere.  Choose from two well equipped helms and enjoy a walk-in, full stand-up engine room.  This distinctive pilothouse motoryacht will carry you in style to the destinations of your dreams.  Call Bob Loudon today at 404.786.4514 to schedule a personal showing.

Hull Design

Designed by James Krogen, the KE52 combines classic, timeless style with exceptional seakeeping and efficiency.  Her plumb stem, raised bow, and broad beam forward allow her to slice through the waves with ease while providing surprising space in her accommodations.  Her low profile allows her to get under bridges as low as 15′ and with a draft of just 4′, she’ll take you places most 50 footers won’t.  Her semi-displacement hull delivers trawler-like efficiency at displacement speeds with true cruise capabilities in the mid-to-upper teens.  And her generous keel provides stability and protection for her twin 26×25 propellers.

• Semi-displacement hull allows efficient operation at trawler speeds along with mid-to-upper teen cruise speeds
• Plumb stem provides for a long waterline and exceptional volume below decks
• Lengthy, sturdy keel protects the props and adds stability
• 26 x 25 bronze 4-blade props
• 4′ water draft
• Hard height of less than 15′

Krogen Livability

Boarding a Krogen Express couldn’t be easier with a large transom door and wide boarding gates on either side of the spacious, covered cockpit.  Ample storage for lines, fenders, cleaning supplies, and more is provided by the cavernous lazarette below.  Entering the salon through double, watertight aluminum doors, her owners are treated to an inviting cherry wood interior. Along with her sumptuous joinery, old world craftsmanship is obvious with the quality of her appointments and overall fit and finish.  Legendary Krogen livability is evidenced by the large side windows and generous headroom along with the integral galley-up design.

• Large covered aft deck with three full depth boarding gates
• Cavernous lazarette provides ample storage
• Galley up layout
• Double watertight doors
• Large opening windows and port lights with screens
• Surprising headroom stem to stern
• Thoughtful, abundant storage throughout

Aft Deck

The covered aft deck is accessed by wide, full-depth boarding gates on both sides and in the transom.  4 chairs and a table provide for comfortable entertaining.  Steps on either side allow for easy access to the side decks.  Hawse pipes allow for line handling both aft and to the sides.  A Scandvik shower in the transom provides hot and cold water for washing down.  Located in the forward bulkhead to starboard are the 75′ Cablemaster shorepower cord, dockside water and cable TV inlets, freshwater outlet, and 110V receptacle.  Accessed through the generous boarding gate, the fiberglass swim platform allows aft access and can be boarded from the folding ladder beneath.  The spacious lazarette is accessed through a hatch in the teak sole on the centerline.

• Spacious covered cockpit with teak decking
• Generous full depth boarding gates on both sides along with transom door
• 4 chairs and cocktail table
• Scandvik hot/cold shower in transom
• 75′ Cablemaster 50A shorepower cord
• City water inlet
• Freshwater outlet
• Cable TV jack
• 110V receptacle
• Stern camera
• Folding ladder beneath swim platform
• Access port for emergency tiller

Lazarette

Beneath the cockpit sole, accessed through a hatch, is a surprisingly spacious lazarette.  In addition to the stern thruster, steering gear, and davit motor/pump assembly, there is abundant storage available for lines, fenders, cleaning supplies, boat hook, folding bikes, emergency tiller, secondary anchor, and more.

• 12V, 8 hp Sidepower stern thruster
• 2000 gph Rule bilge pump
• Convenient storage shelf forward
• Storage space is segmented with the sturdy stringer system
• Ladder for ease of ingress and egress
• Rudder table supporting steering gear
• Hynautic oil reservoir for hydraulic steering
• Motor/pump assembly for Steelhead davit forward to port

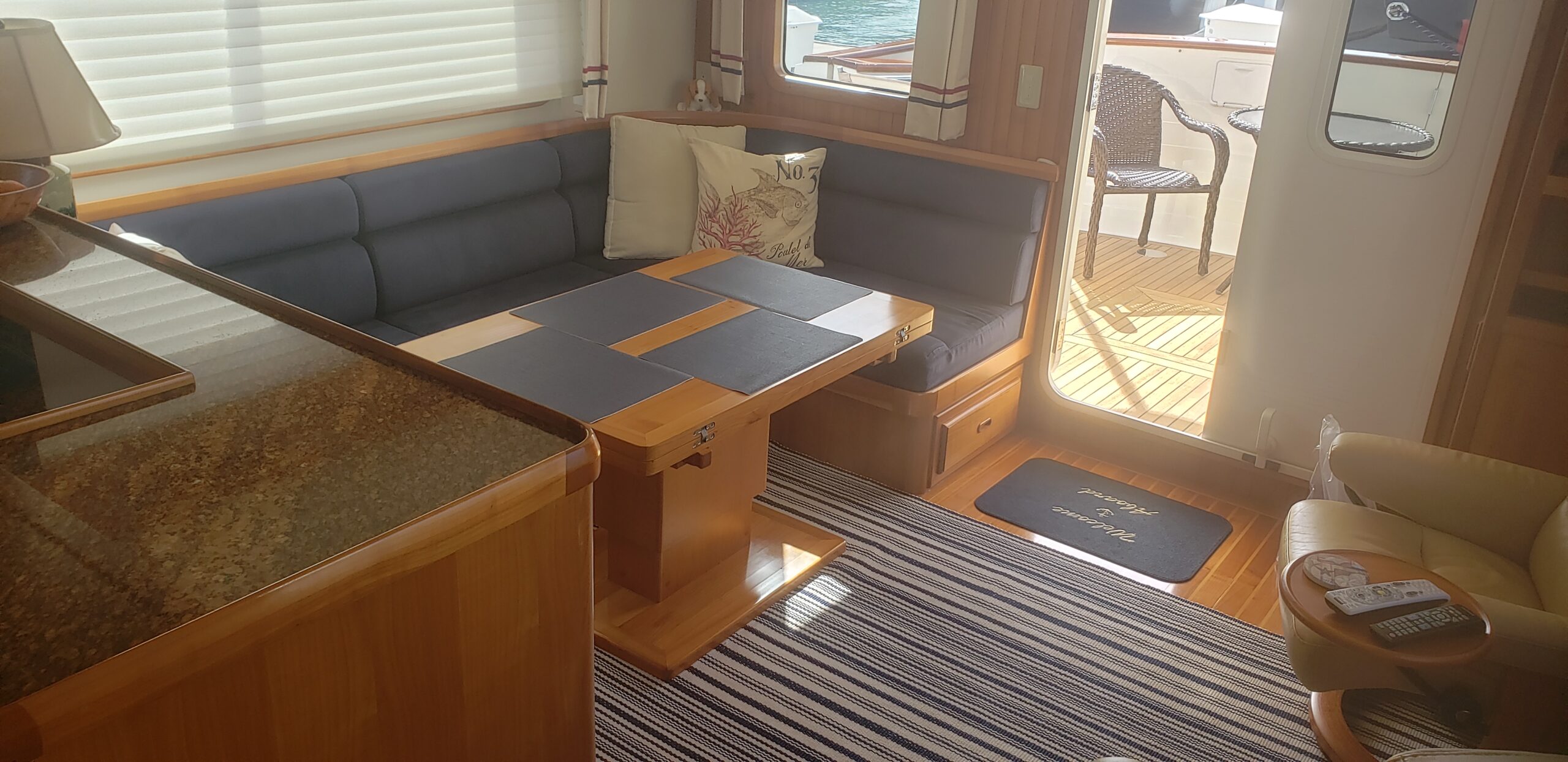

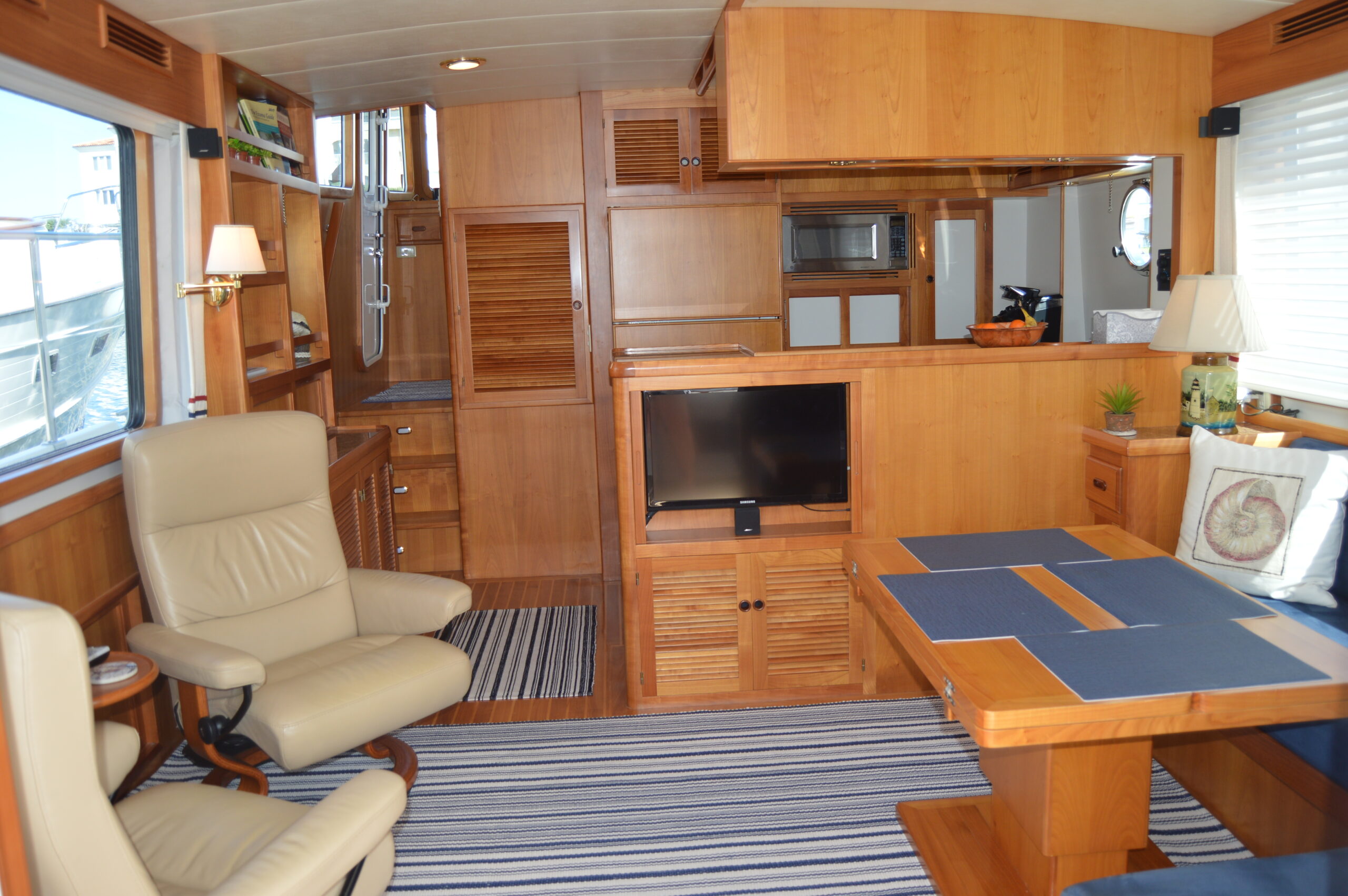

Salon

Located to starboard, the comfortable L-shaped settee, covered in subtle-striped blue fabric, has storage beneath and a nice end table forward.  The cherrywood hi-lo table has leaves that fold out for expanded seating capacity and can be moved outside for dining al fresco.  To port are a pair of comfortable Stressless reclining chairs.  Silhouette shades provide privacy and protection from the sun while custom end panels and tie backs add style.  Inviting Stressless recliners to port and an L-settee to starboard are perfectly situated for enjoying the built-in Samsung LCD TV and Bose surround sound home theater system.  To port is generous additional underdeck storage and a built-in bookcase featuring fiddled shelves and still more lockers.

• Double weather tight aluminum doors
• Port side bookcase with storage beneath
• Storage and side deck access below the L-settee
• Below side deck storage to port

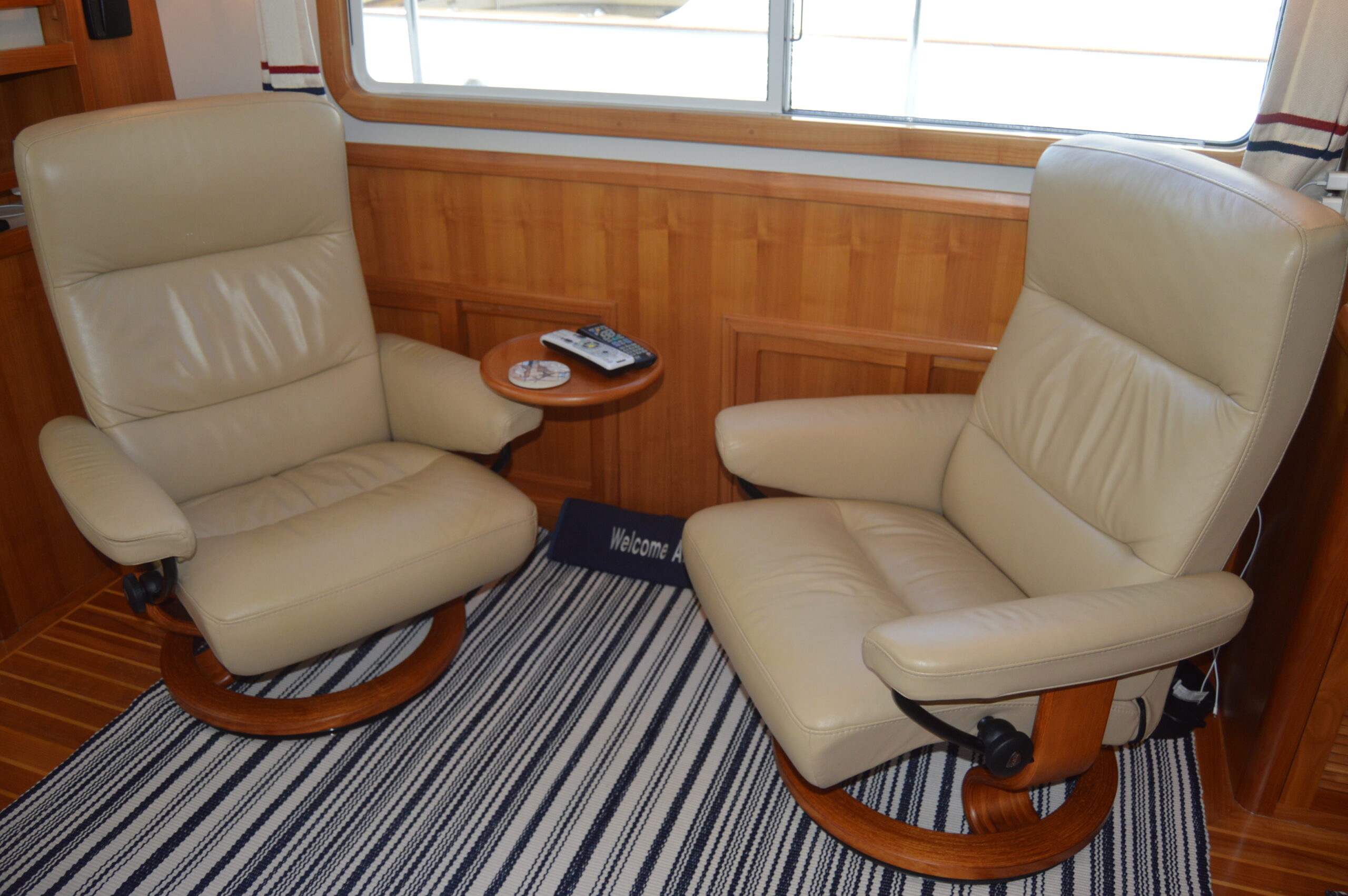

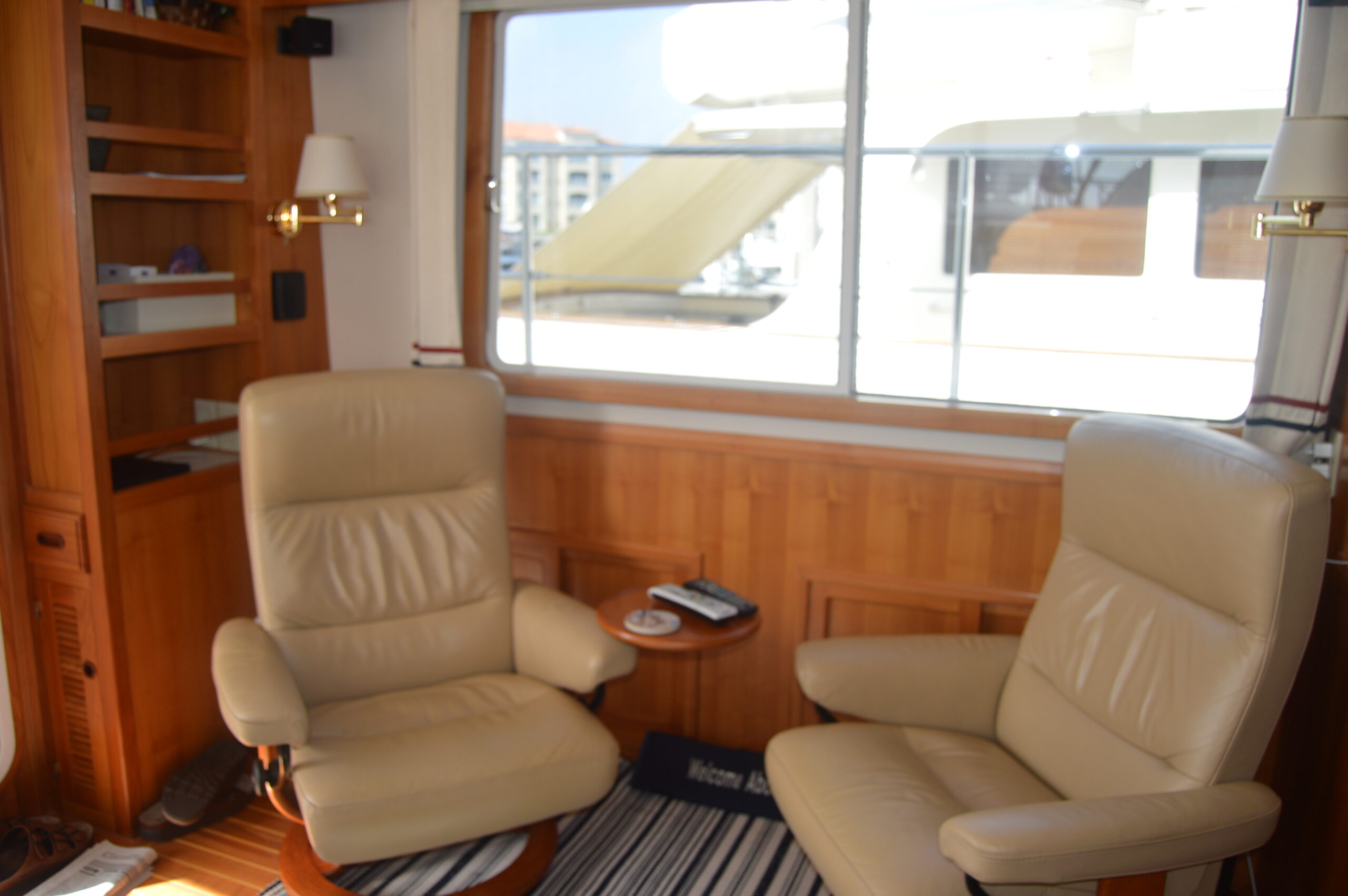

• Ekornes Stressless reclining chairs and ottomans (2)
• L-settee in blue Ultrasuede
• Wall sconces to port (2)
• Silhouette shades supported by cherrywood cornices
• Decorative drapery panels with tie backs
• CruiseAir zone control (SMXir) for two air handlers
• Cherry hi-lo table
• Bose 5+1 surround sound home theater system

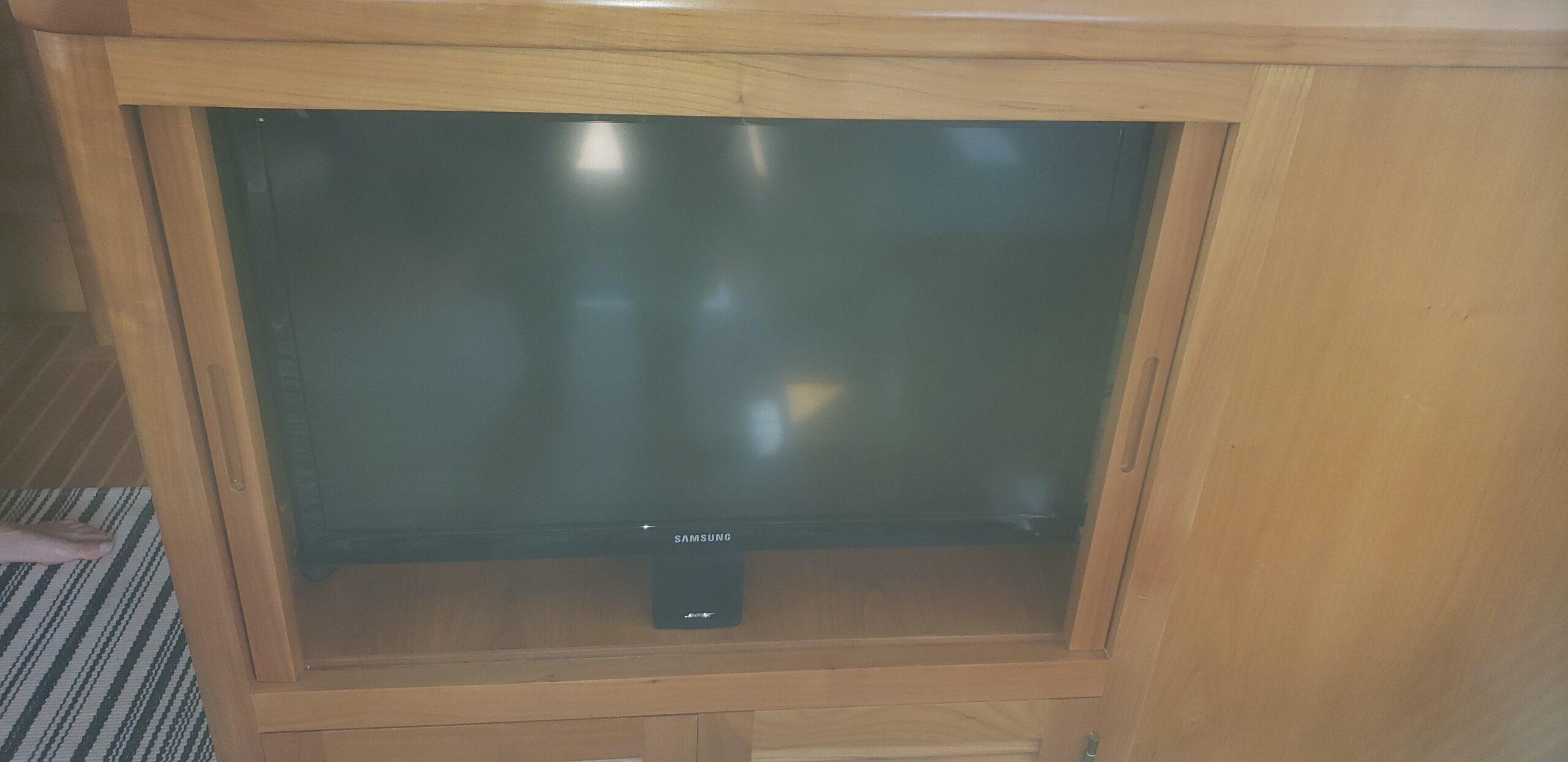

• Samsung LCD TV

Salon Bilge Compartment/Battery Room

Below the salon you’ll find the house battery bank (3 Mastervolt AGM Super 8Ds at 810 Ah total, Cable Master drum (75′ 50 A cord), Mastervolt Combi 4000 Watt inverter / 200 Amp charger, and Sounddown mufflers.  There’s also a 2000 gph Rule bilge pump and the water lift muffler for the Northern Lights genset.  Access is simple with both a day hatch and larger service hatch in support of major mechanical work.

• House battery bank – Three Mastervolt 8D AGM at 270 Ah each, 810 Ah total (Nov 2018)

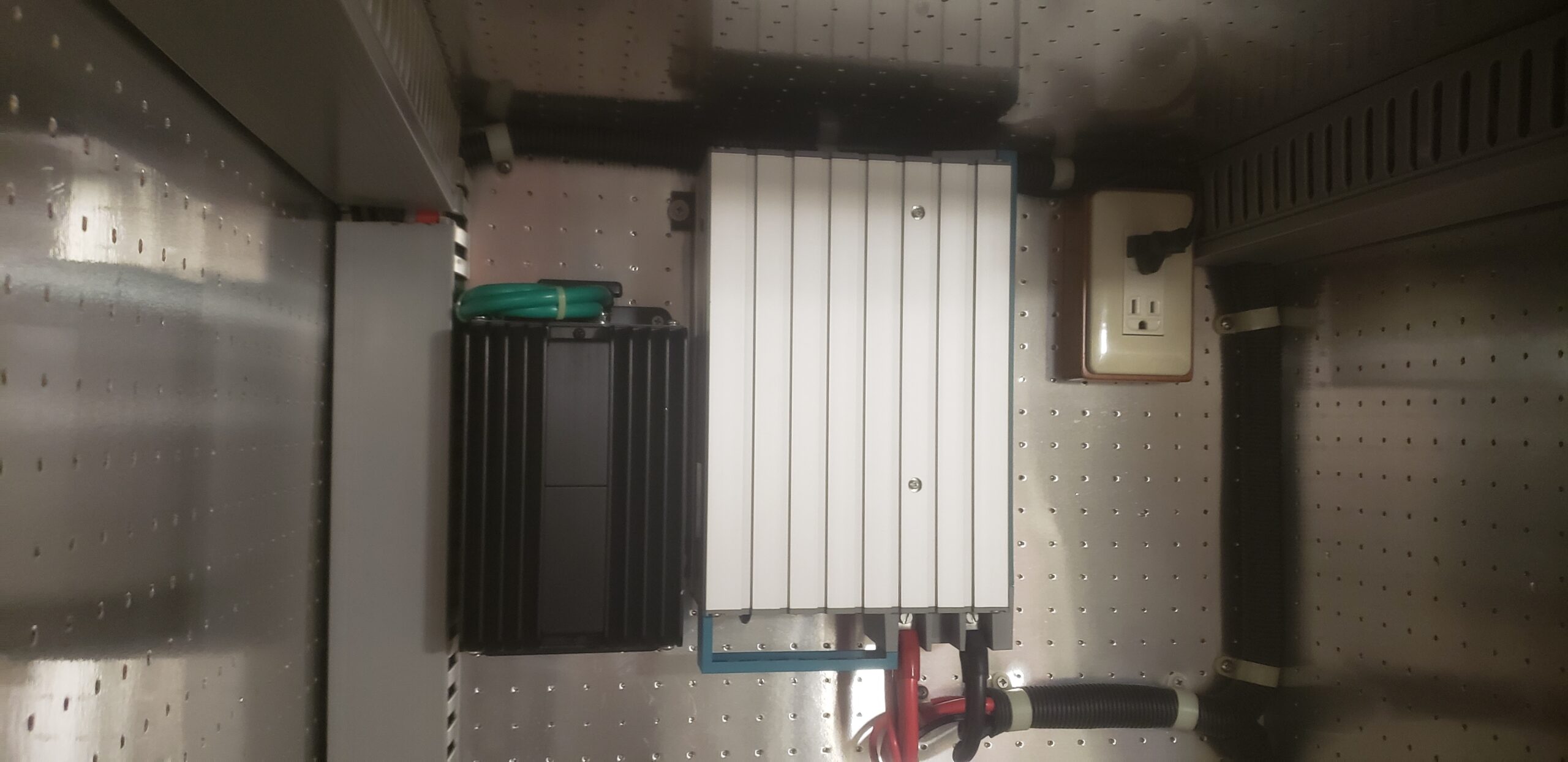

• Mastervolt 12/4000/200 Combi inverter charger – 4000 watt inverter, 200 amp charger
• 75′ 50 amp Cablemaster shorepower cord in storage drum with wirelesss remote control
• 2000 gph Rule automatic bilge pump
• Sounddown main engine mufflers
• Water lift muffler for 12 kw Northern Lights generator

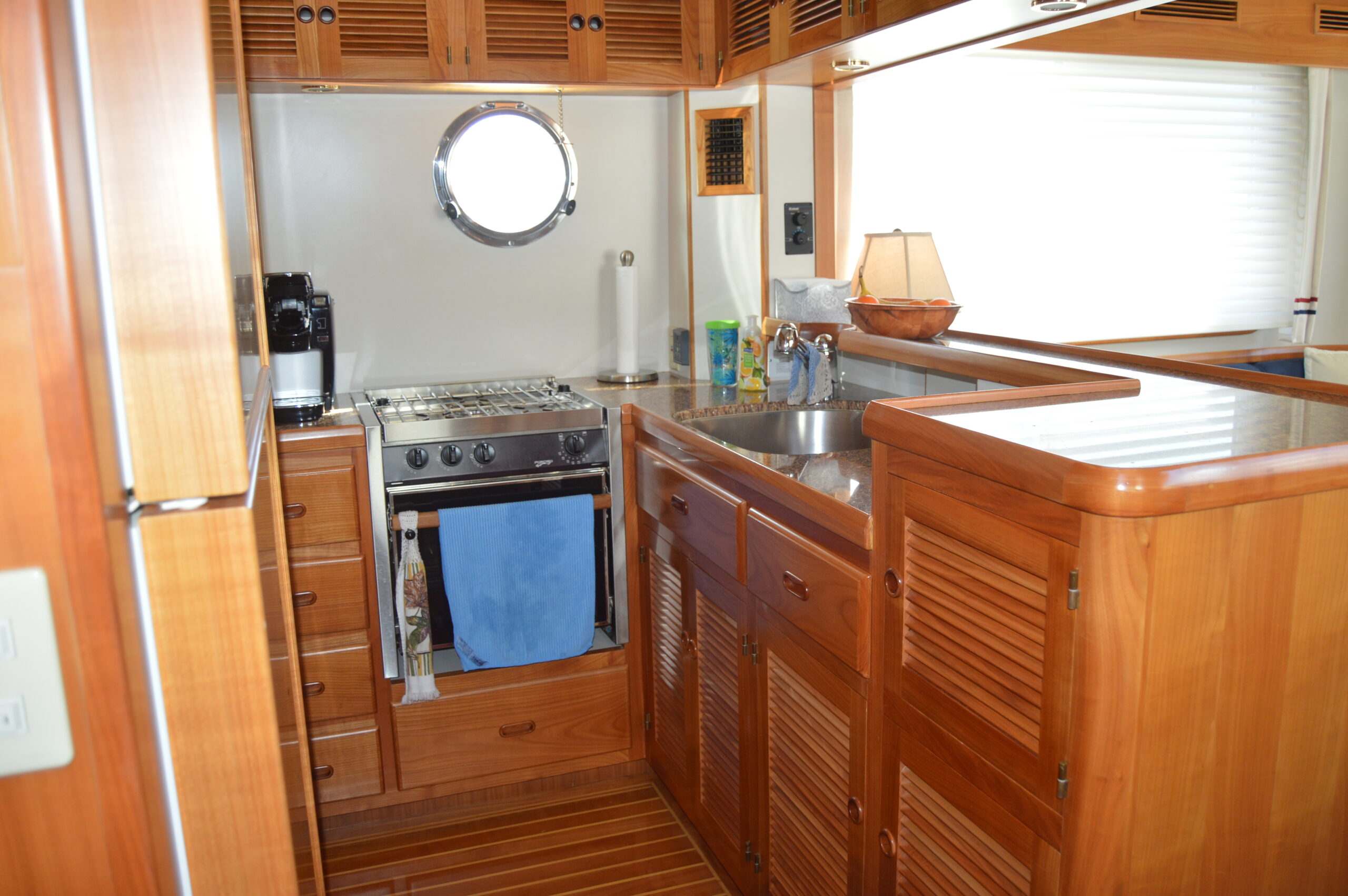

Galley

The gourmet galley is located up where her chef can always be part of the activity.  She’s well equipped for meal preparation with a 3-burner, Force 10 propane range, 14 cu. ft. GE refrigerator/freezer, GE microwave oven, and deep Elkay sink with pullout sprayer faucet. Elegant granite counter tops are easy to maintain and will complement any decor, while the raised section is ideal for serving crew and guests. Traditional round port lights provides ventilation while abundant storage ensures a good home can be found for all provisions. Beneath the starboard side bookcase, the U-line ice maker frees up space in the ice box and ensures drinks will be well chilled.

• Galley up layout

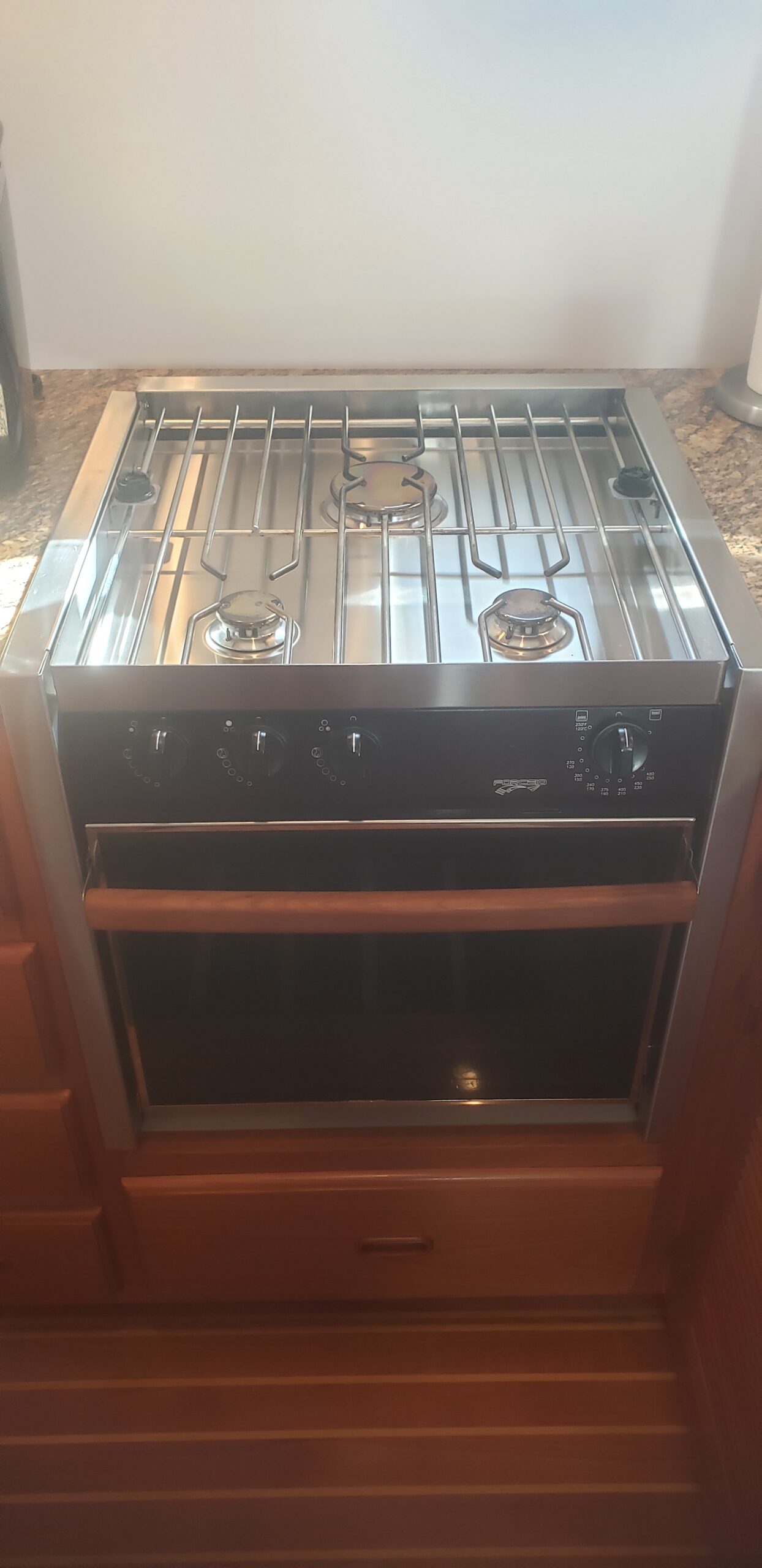

• Force 10, 3-burner propane range
• 14 cu. ft. GE refrigerator

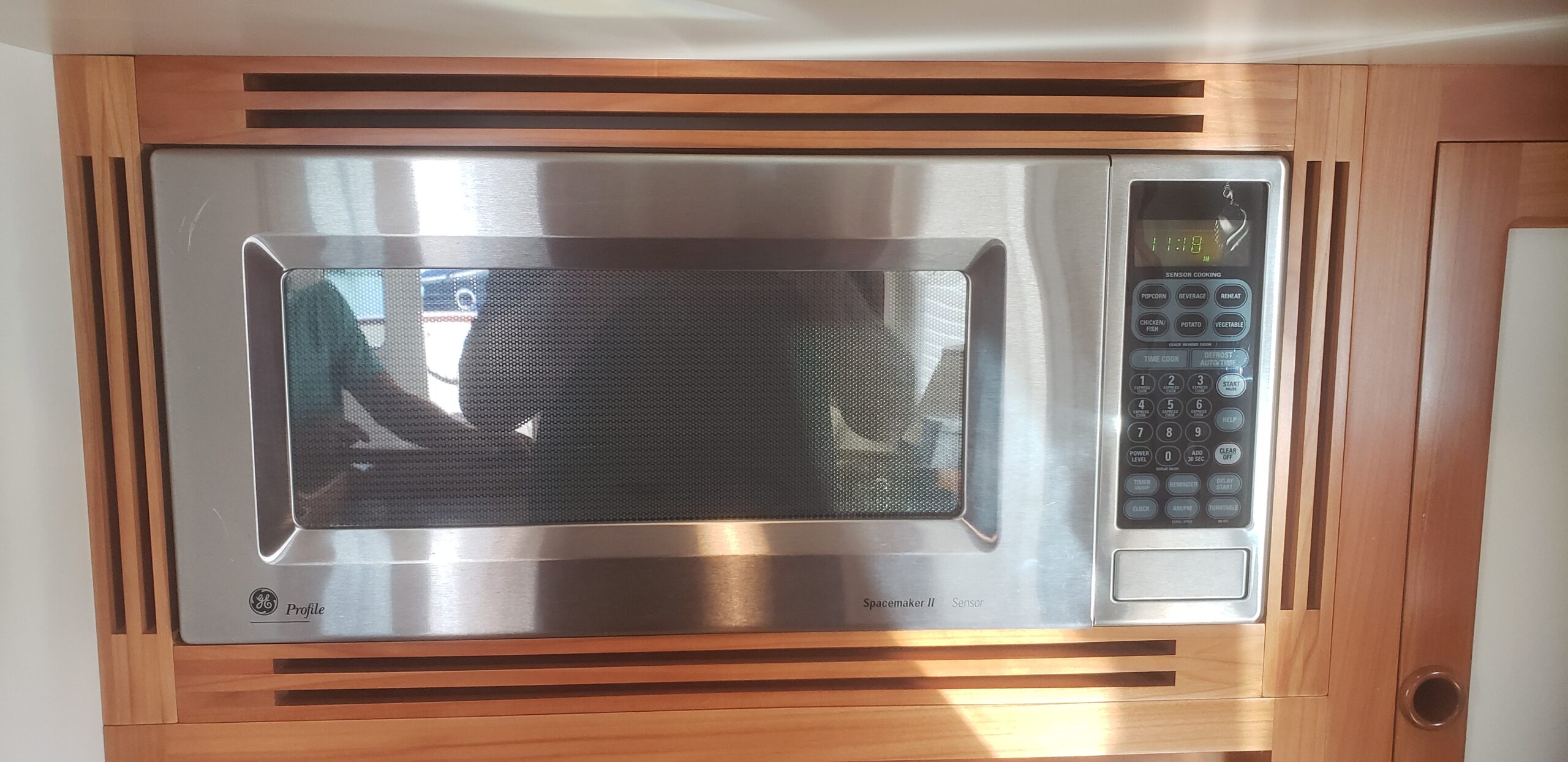

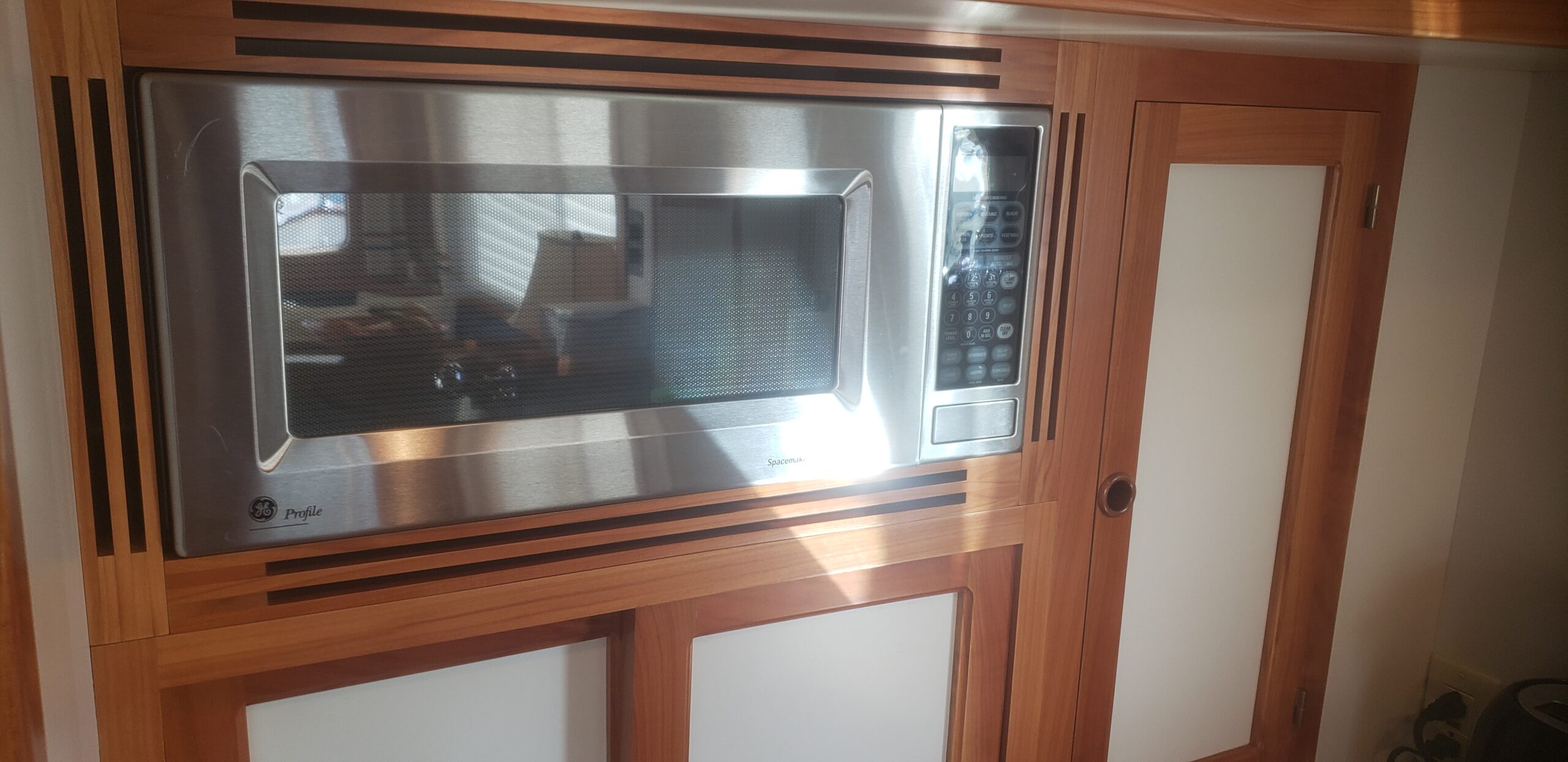

• GE microwave oven, stainless steel

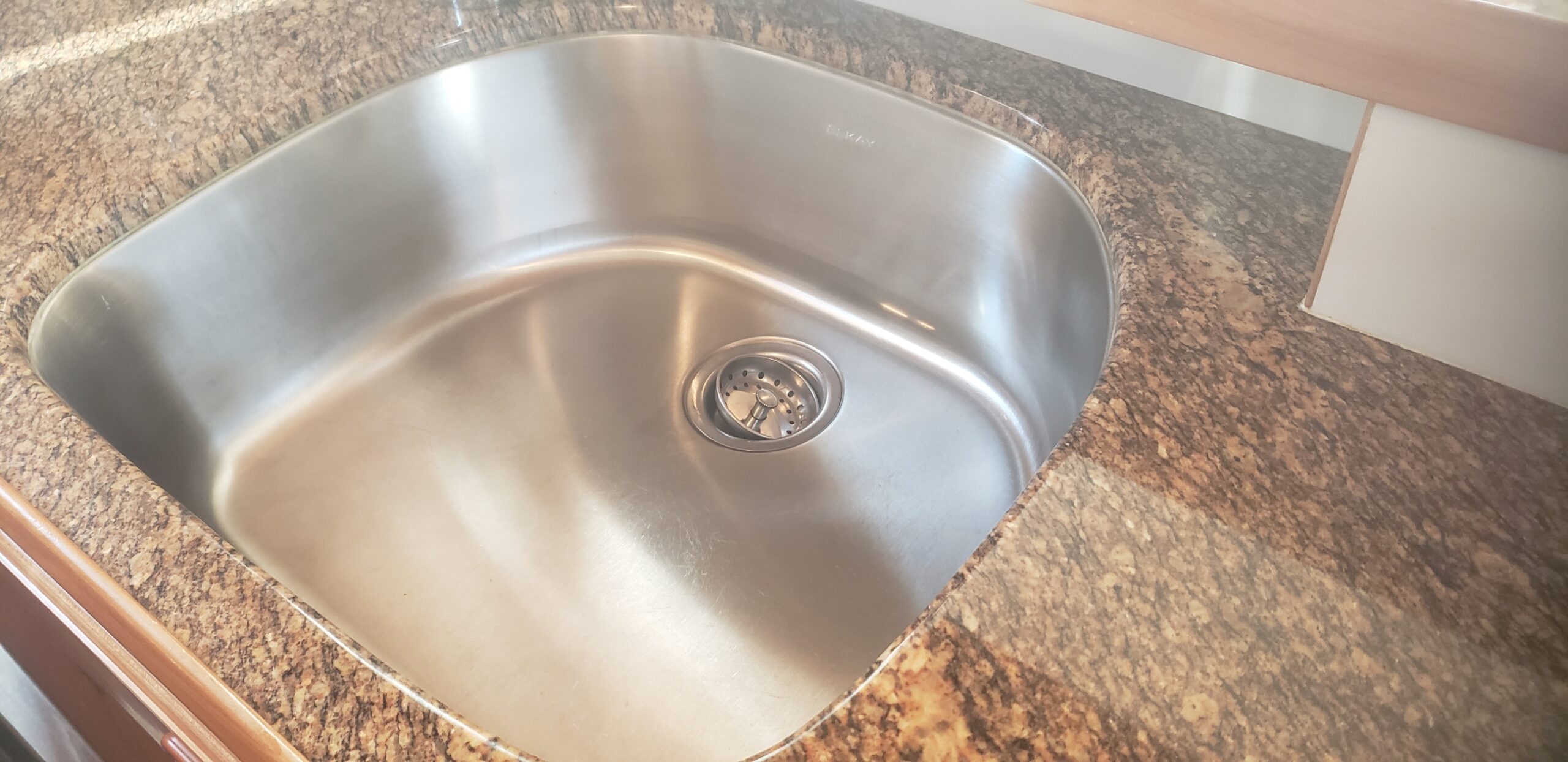

• Elkay stainless steel sink
• Pullout sprayer faucet

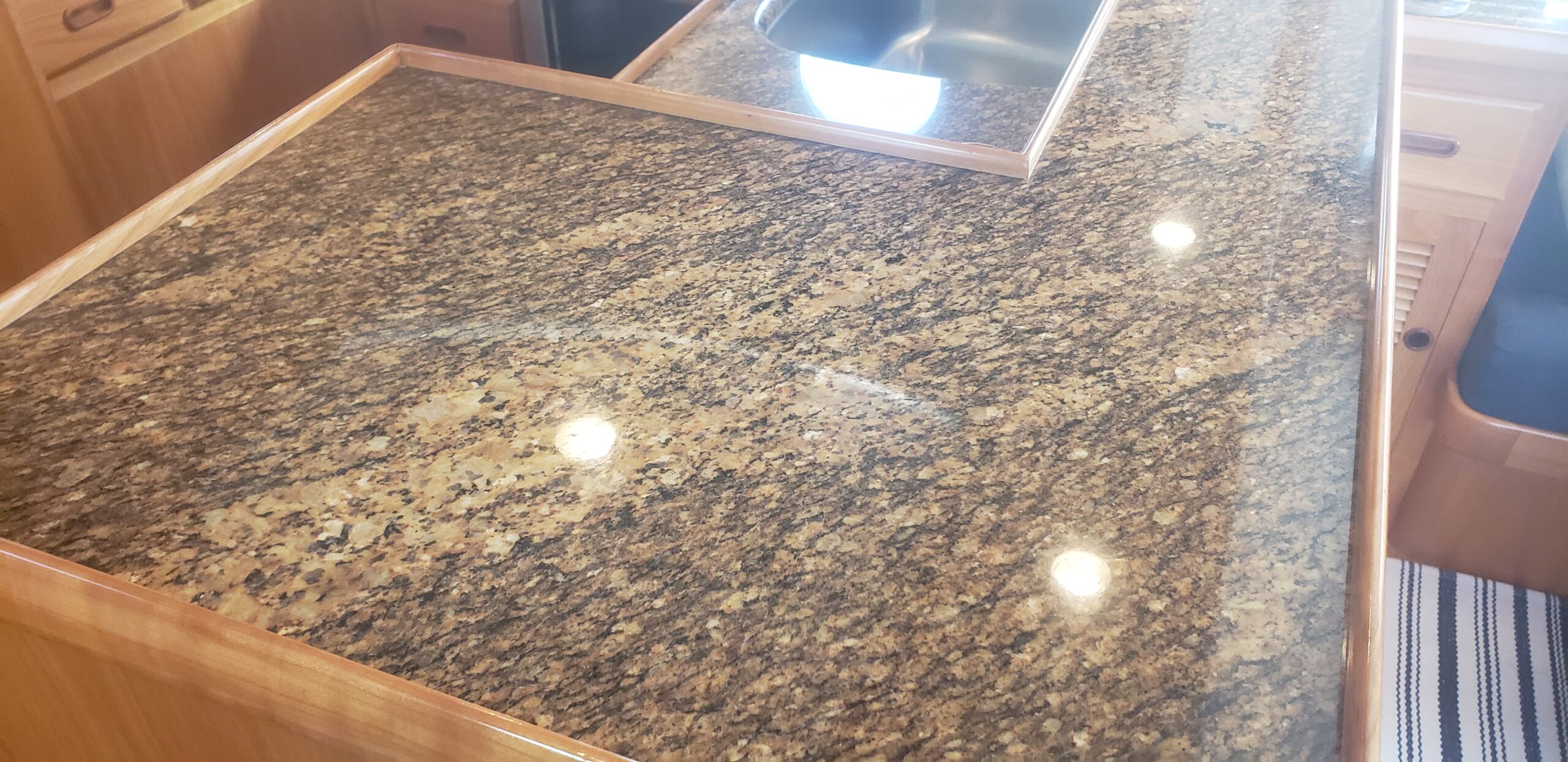

• Granite countertops
• Trident propane control
• Manship round port light (2)

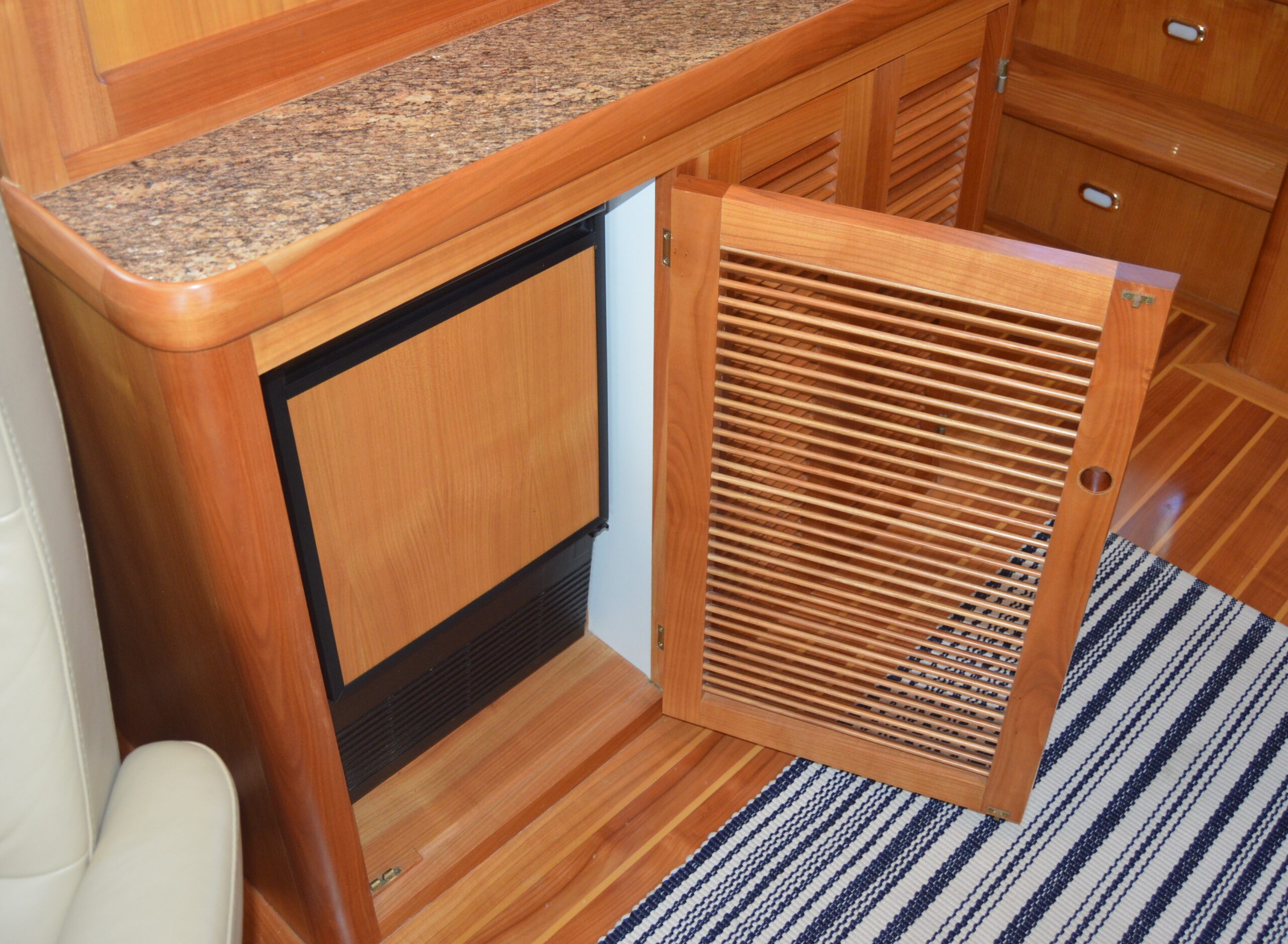

• U-line ice maker
• Fire extinguisher
• Fireboy carbon monoxide detector

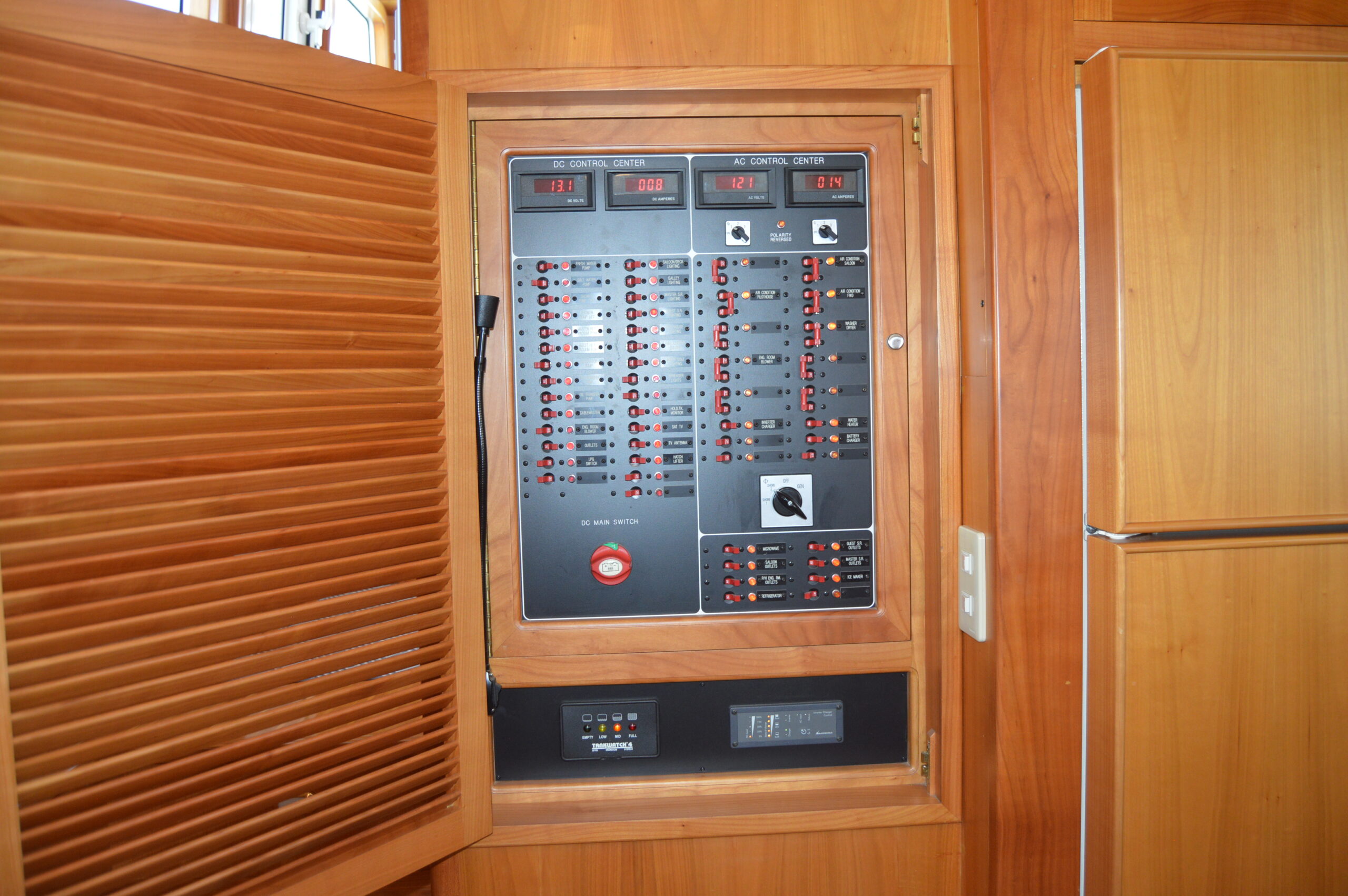

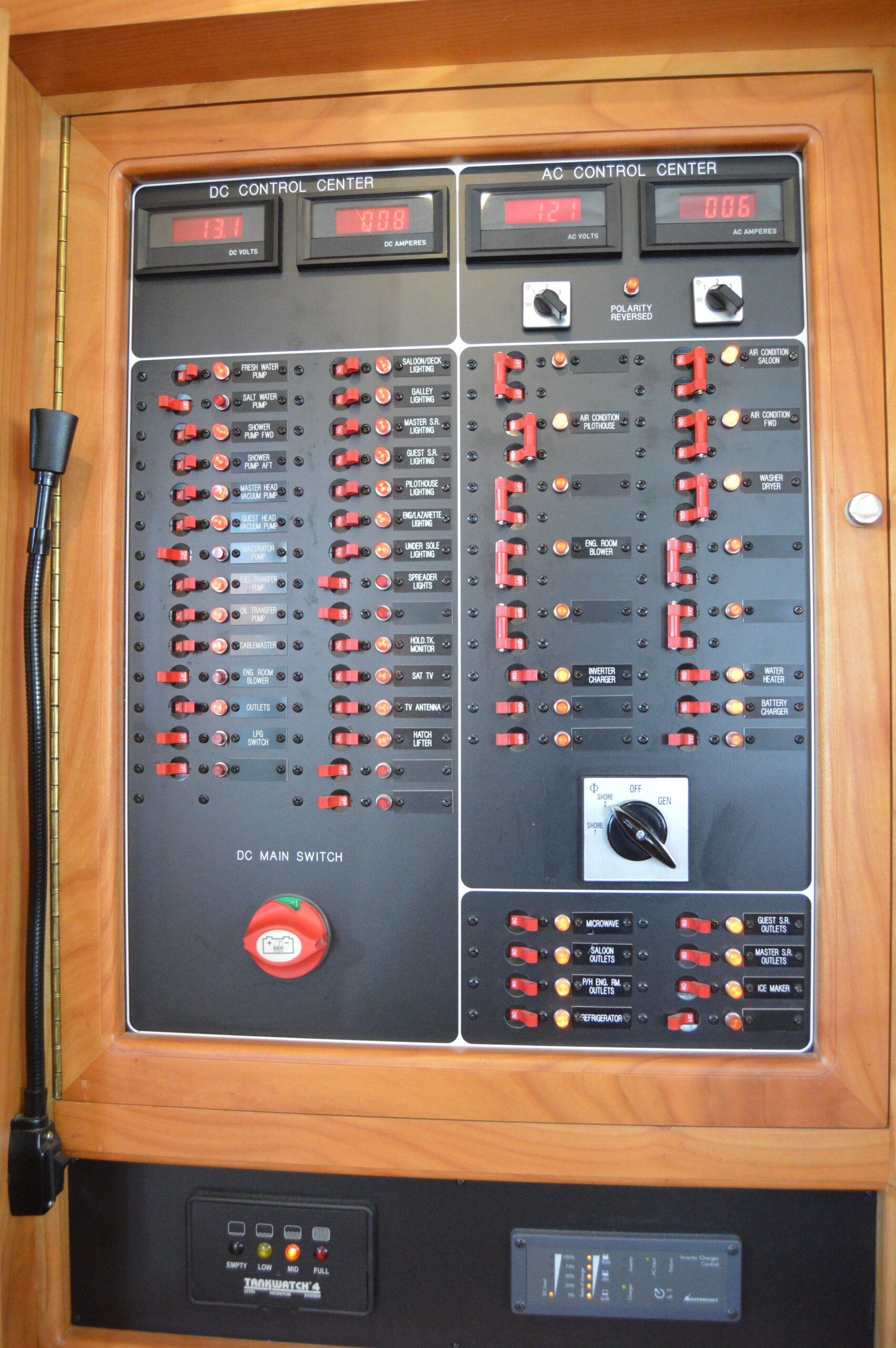

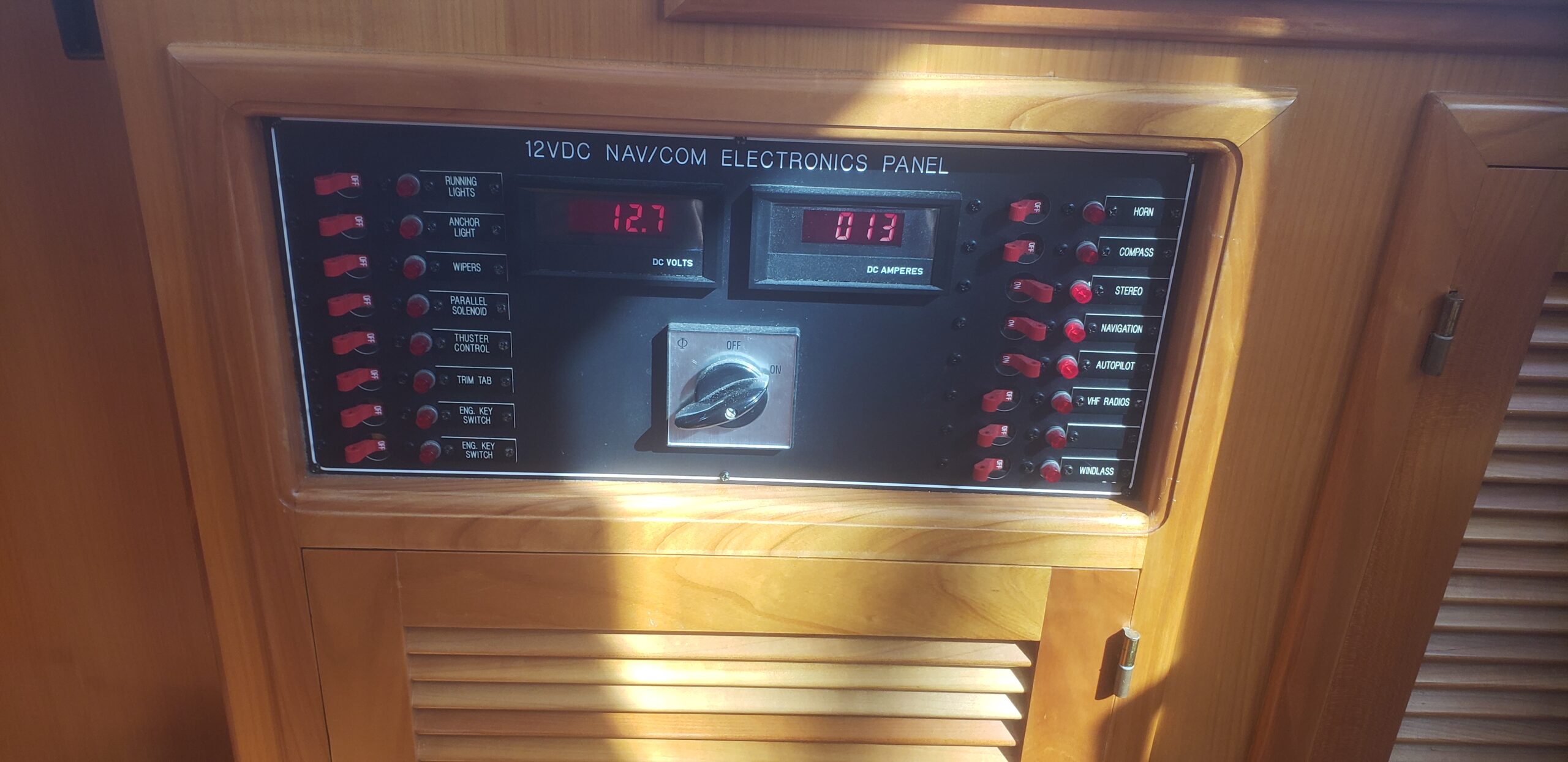

• Electrical panel – 240VAC, 120VAC, 12V, Inverter section
• Mastervolt inverter/charger remote panel
• Floor hatch for secondary engine room access

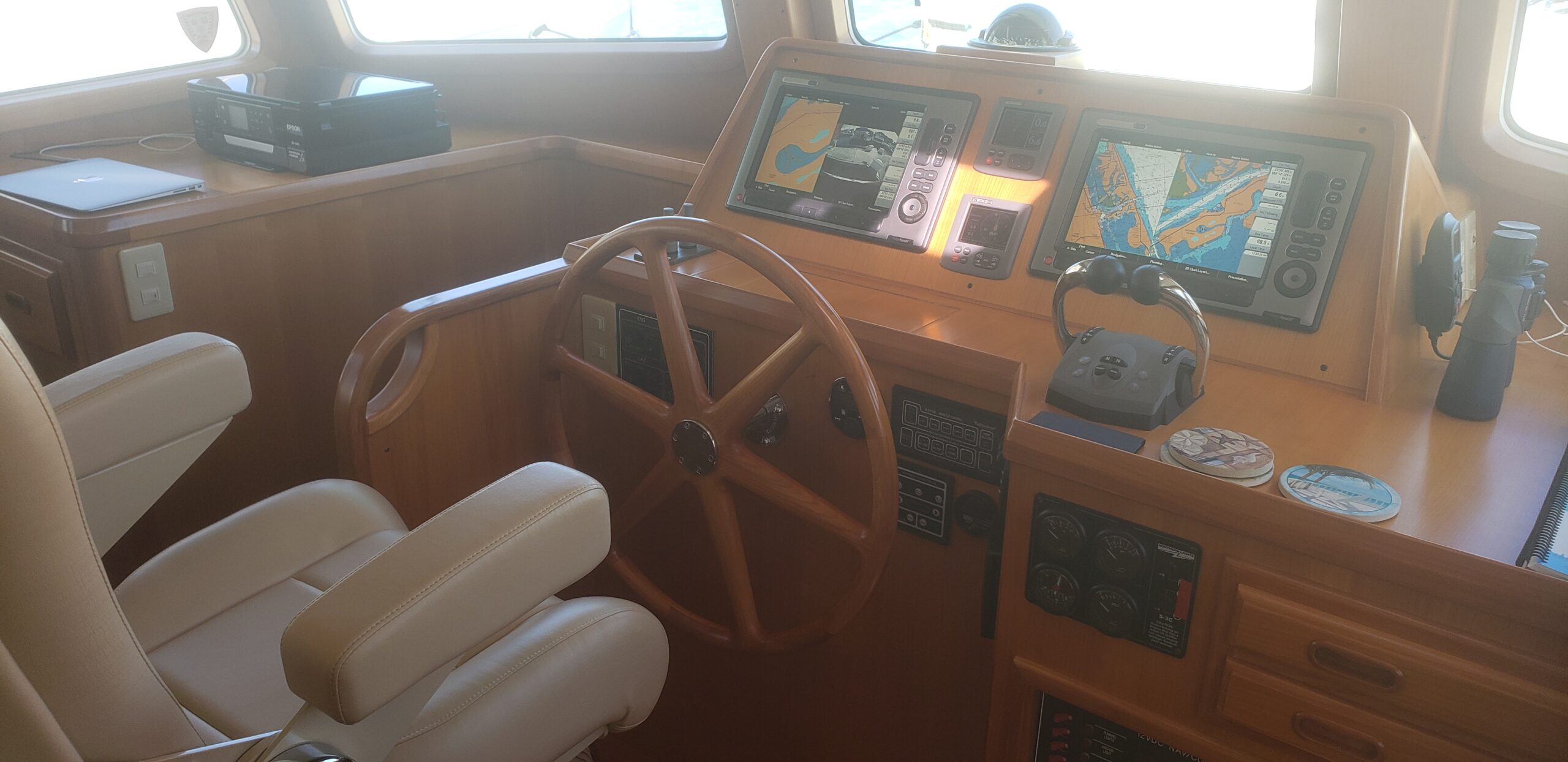

Pilothouse Helm

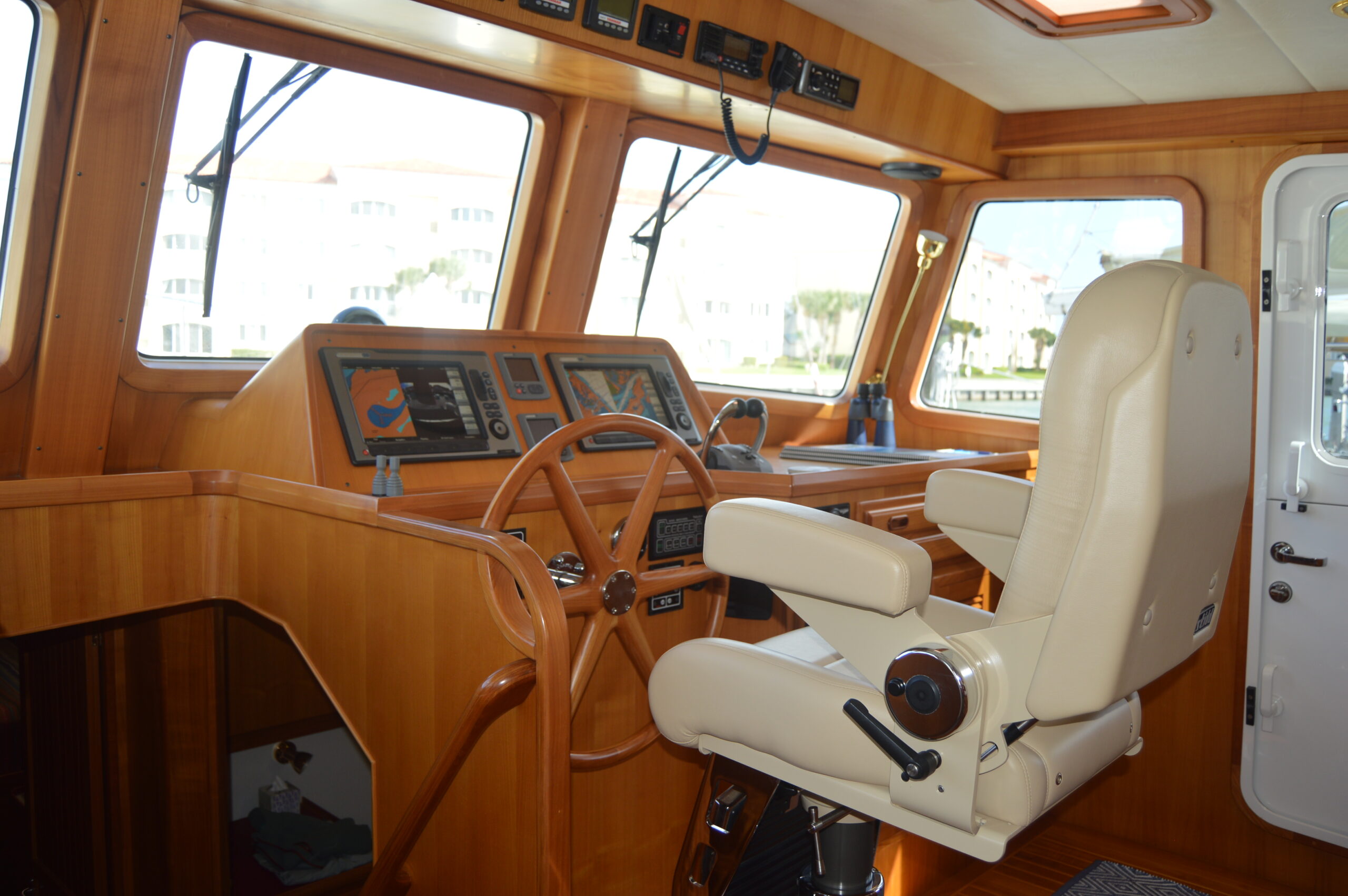

The centerline helm console in the raised pilothouse is equipped with a full complement of Raymarine navigational electronics, all within easy reach of the fine Buff Ultraleather Stidd helm chair.  Precise Teleflex Morse controls allow smooth control of the twin 480hp Yanmar 6-cylinder diesels while her rudders are guided by a custom, handcrafted cherry helm wheel.  Electronics include a pair of 12″ Raymarine E120W Hybridtouch chartplotters, a matched Raymarine autopilot, a dedicated depth display, and a Standard Horizon VHF radio. Two large chart drawers and a wide, lighted table to starboard allow for easy storage and use of paper charts.  Side Power bow and stern thrusters assure confident close quarters handling.  Controls for the dual trumpet Kahlenberg horns, intermittent Exalto wiper/washer system, Maxwell windlass, and Lenco electric trim tabs are all close at hand.

• Centerline helm with Buff Ultraleather Stidd chair
• Custom cherrywood helm wheel

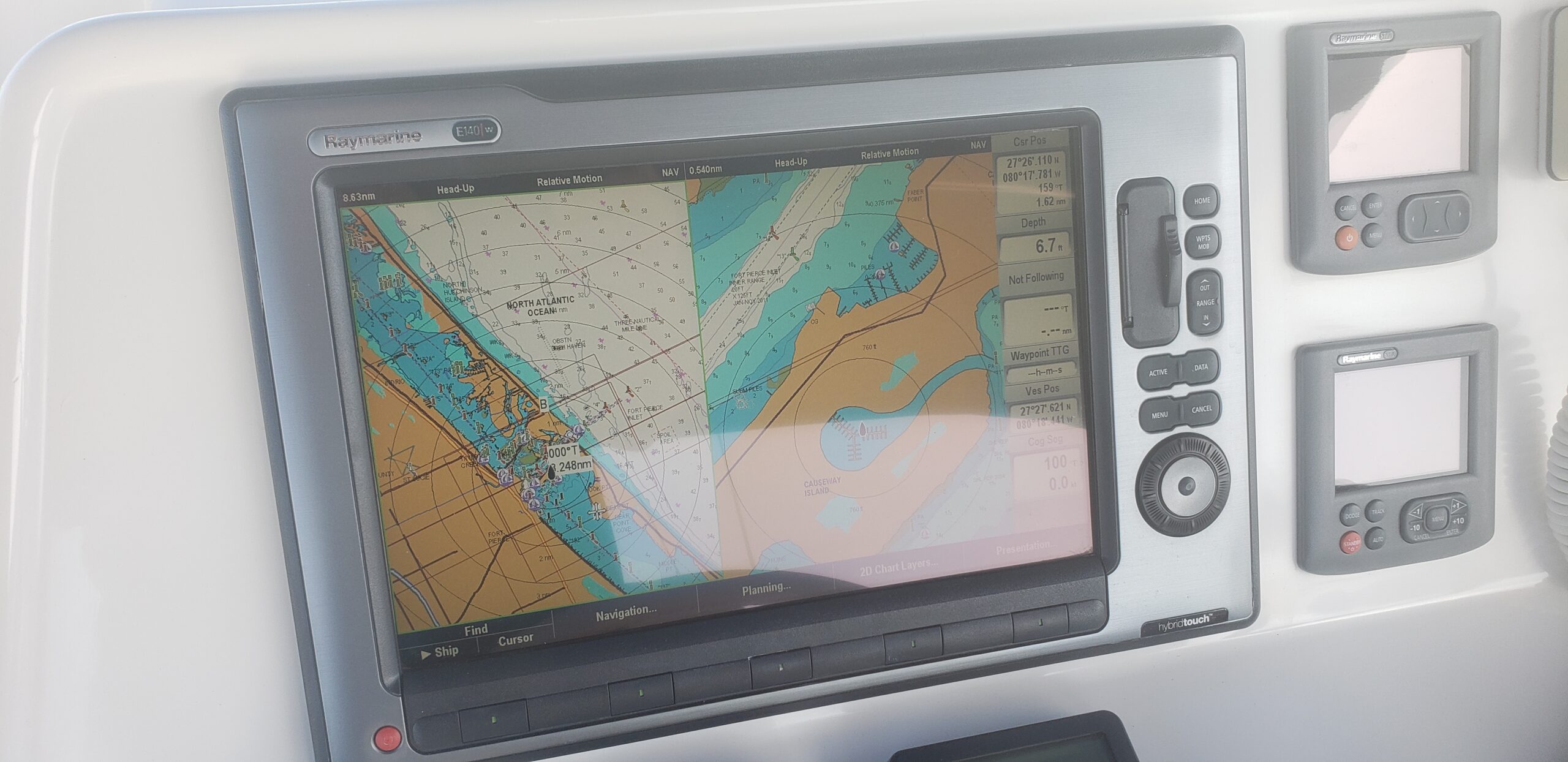

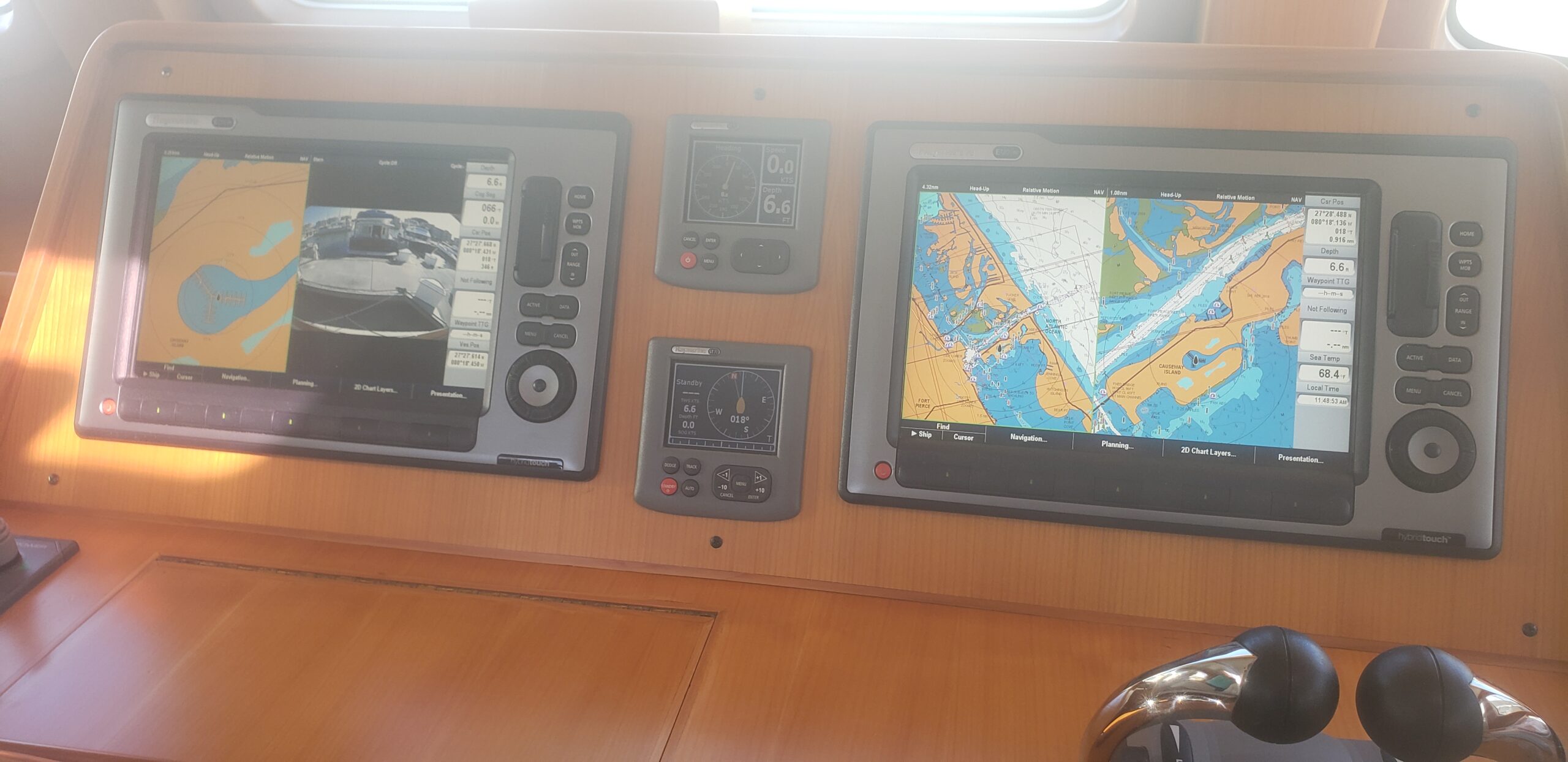

• Raymarine E120W Hybridtouch color radar chartplotters (2)

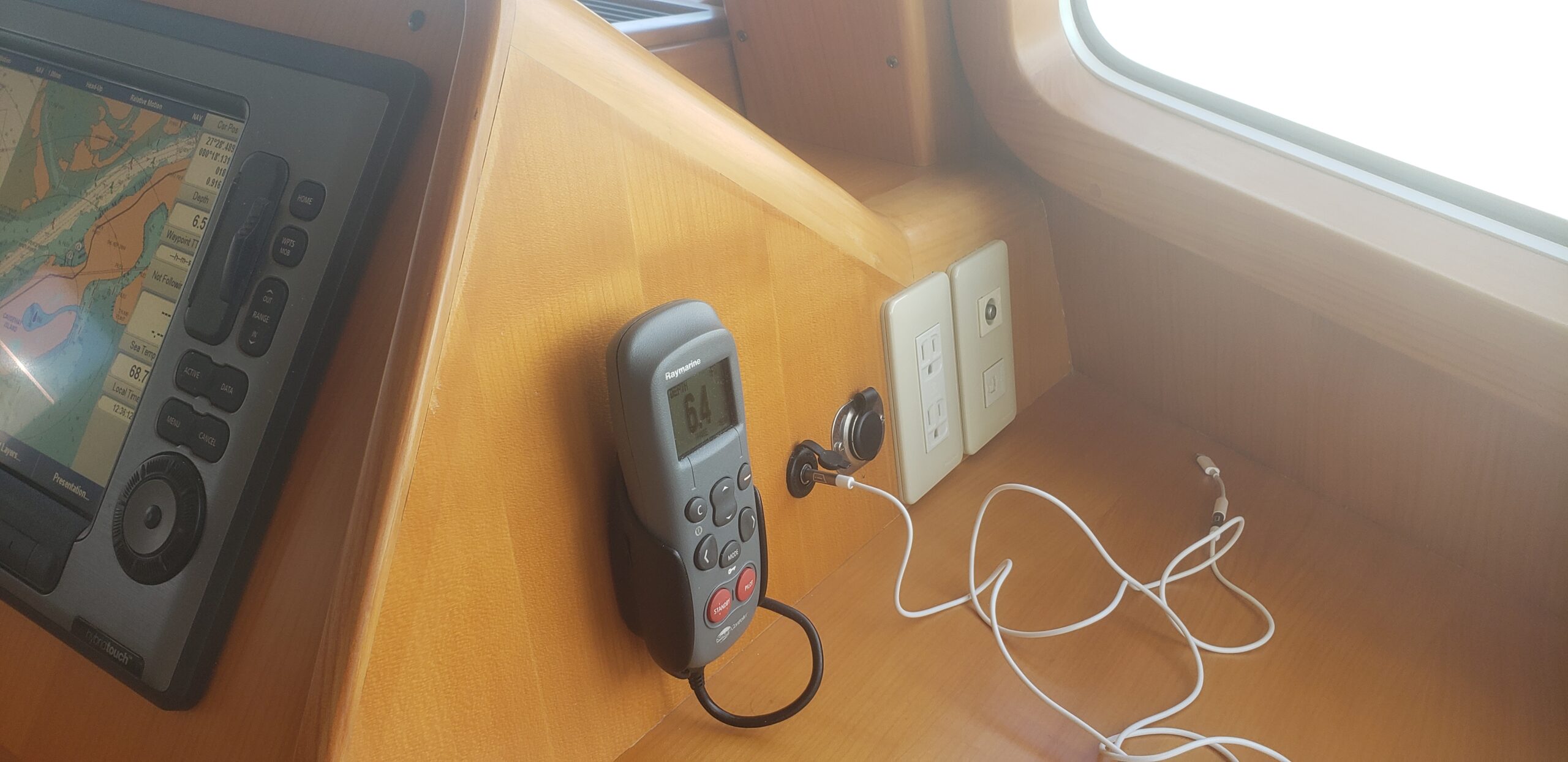

• Raymarine autopilot with wireless remote
• Raymarine MFD dedicated depth display for redundancy
• Standard Horizon GX2000 VHF radio
• Yanmar i560e digital engine displays (2)
• Sidepower joystick controls for bow and stern thrusters with wireless remote

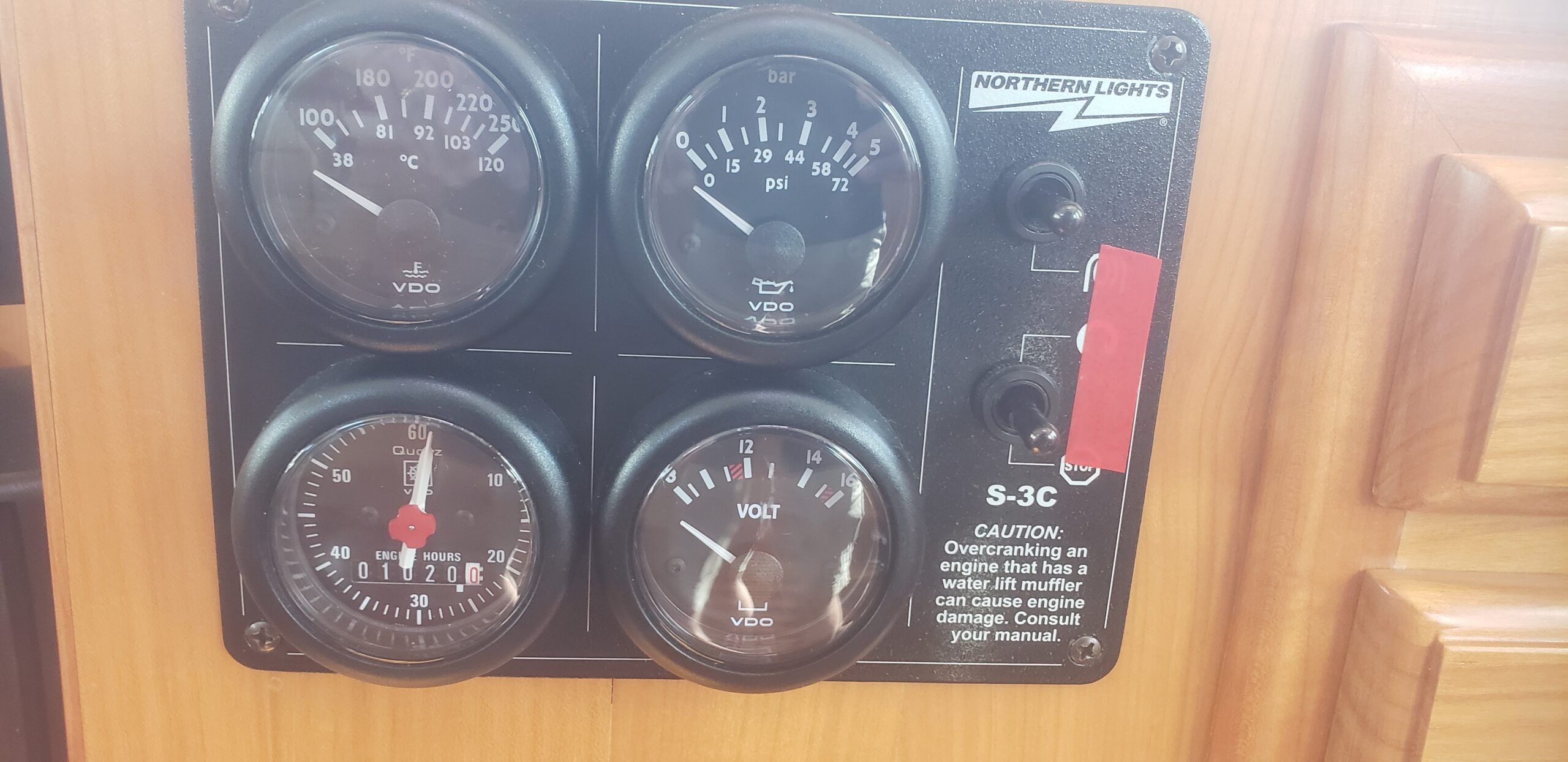

• Northern Lights 12kw genset control panel (1146 hrs.)
• Danforth compass on centerline

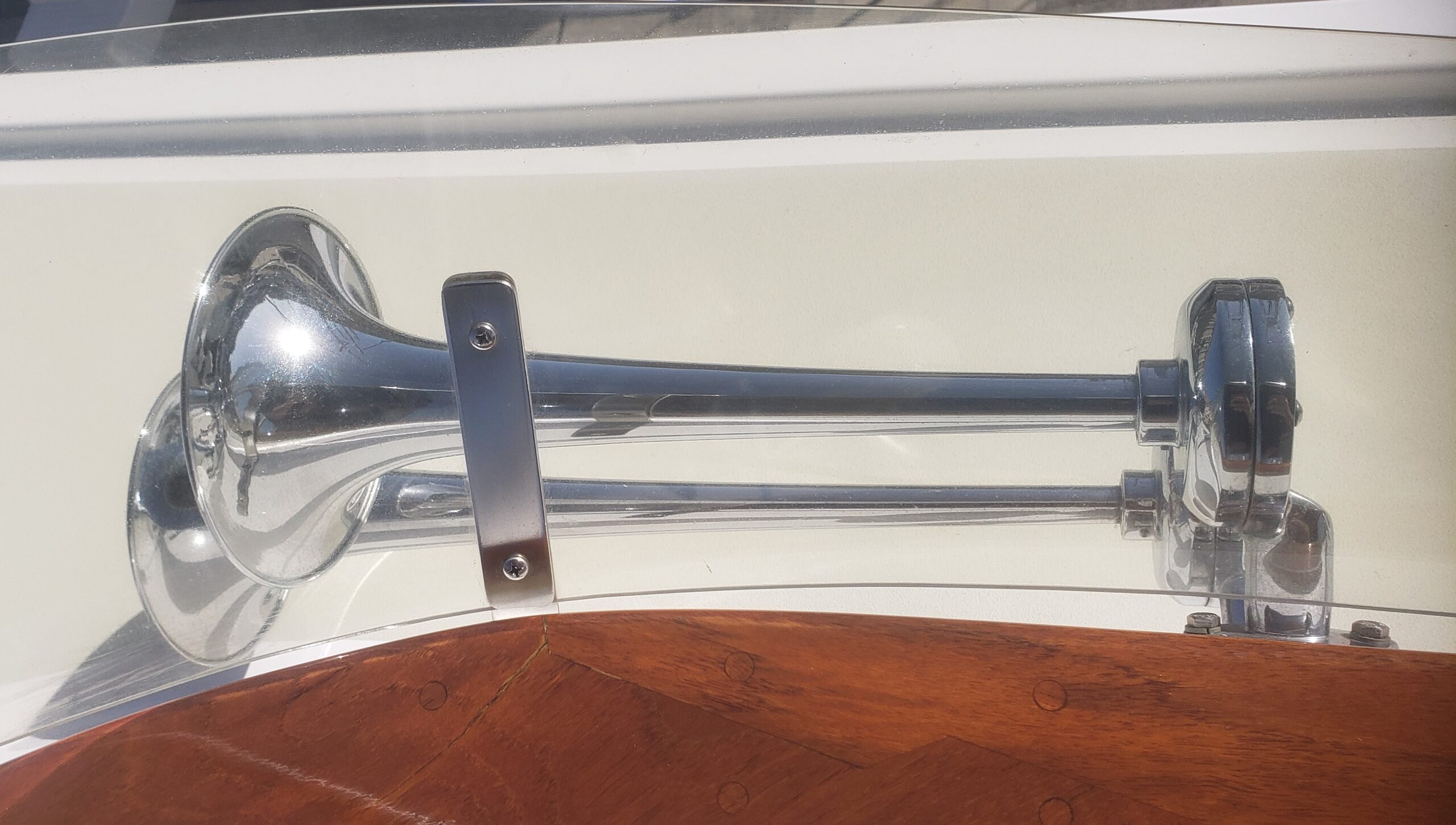

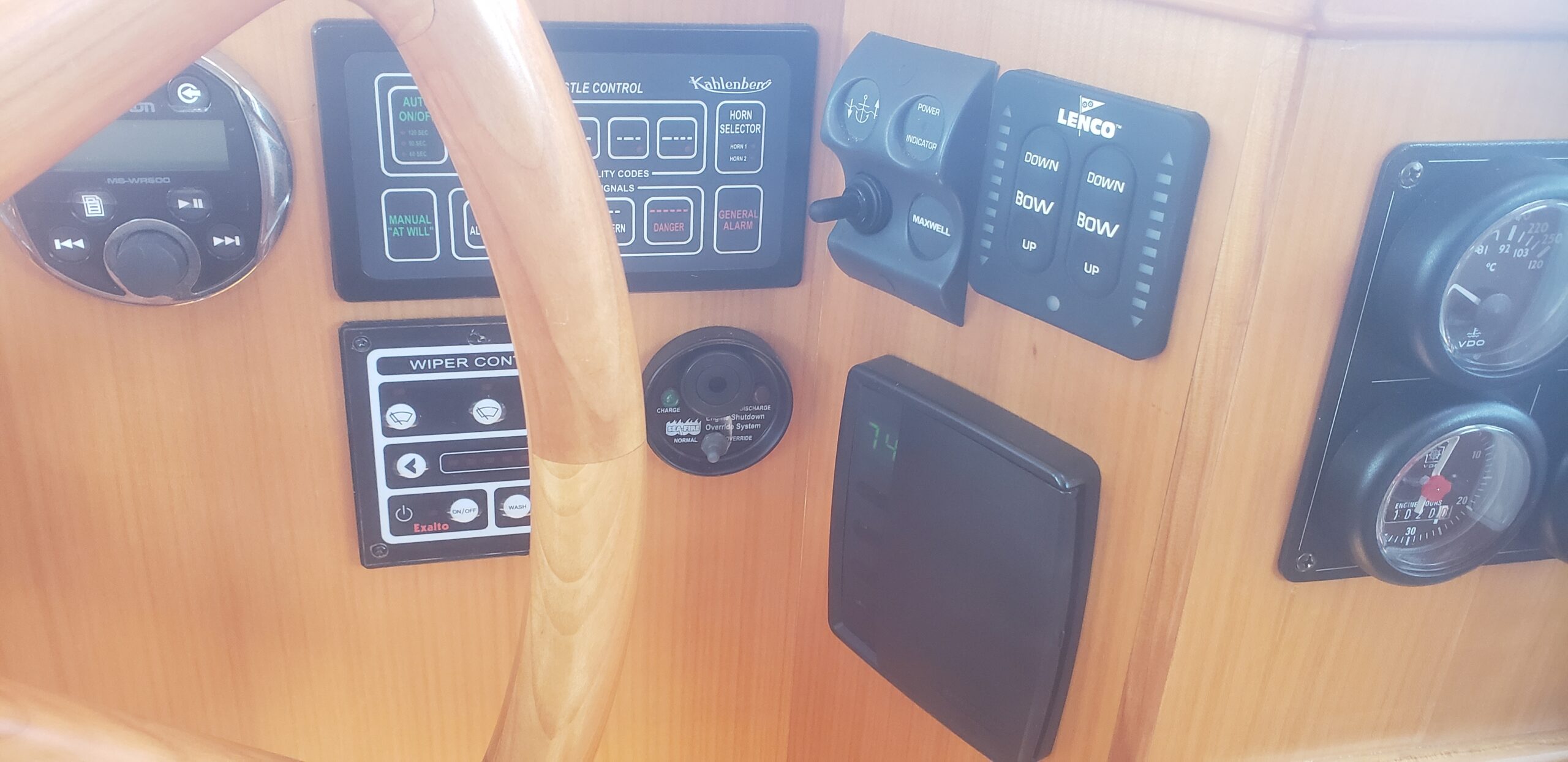

• Kahlenberg M-511A whistle control for dual trumpet horns
• Lenco electric trim tab control (rocker switches and LED indicators)
• Exalto intermittent wiper/washer system
• Maxwell windlass control
• CruiseAir SMXir zone control
• Overhead lighting dims and is switchable to red for nighttime operation
• Fusion MS-CD600 stereo system
• JVC speakers overhead (2)
• Stair access to flybridge (aft) and accommodations (forward)
• Manship overhead hatch with screen
• V-Cool window film for UV and heat reduction
• Northern Lights genset control panel

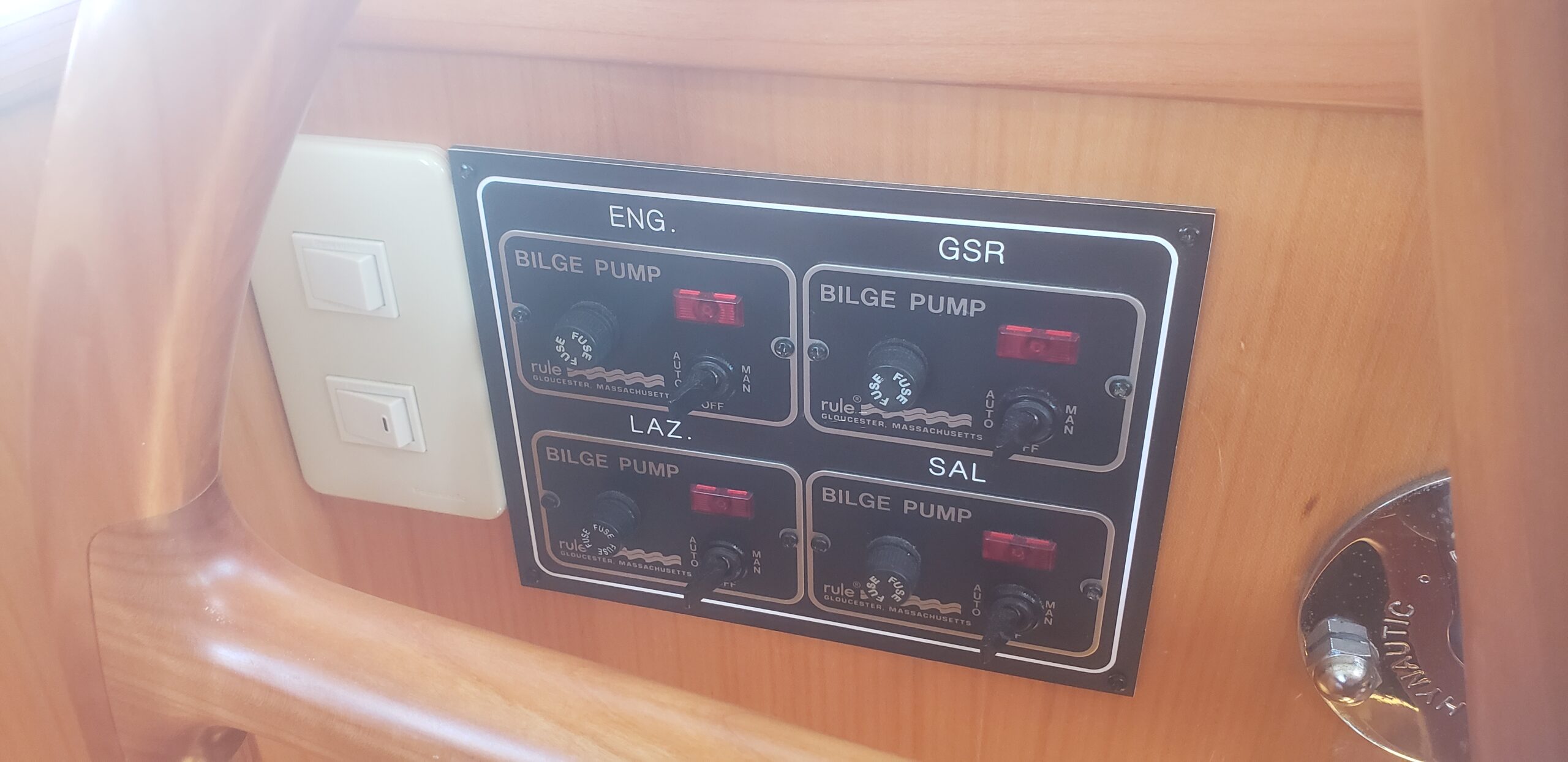

• Bilge pump control panel for bilge pumps (4)

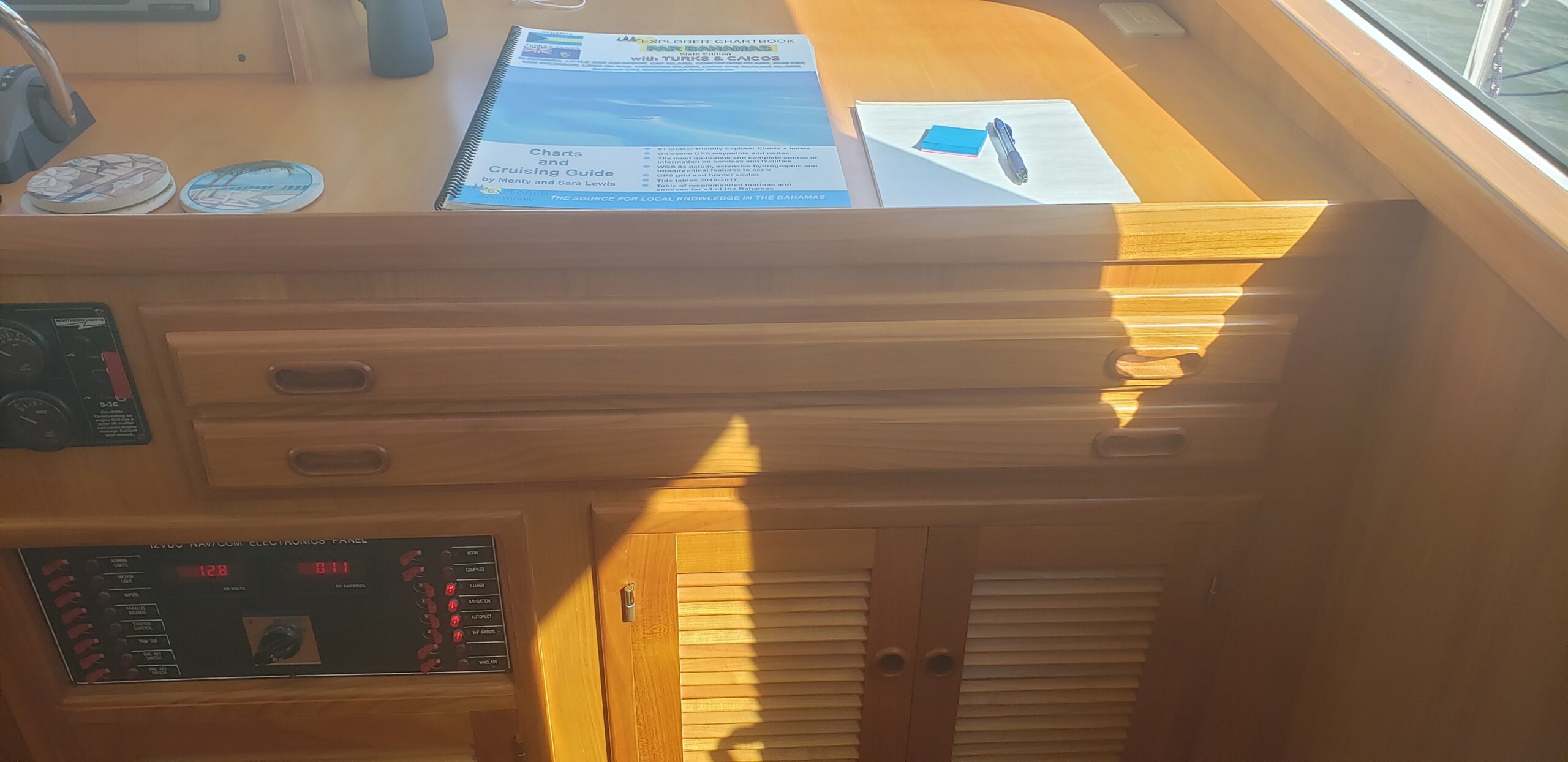

• Chart drawers and chart table with light to starboard
• Small drawers (2) and table to port

Pilothouse Settee

The pilothouse watch berth is elevated for optimal forward visibility, long enough for naps underway, and converts to a 3/4 double berth to accommodat overnight guests.  A table provides a convenient work surface and the wall mounted lamp to starboard makes this an ideal location to retire with a good book.  Above the settee, a color coordinated half hull model showcases her elegant lines and makes for interesting conversation. Beneath the settee are several small lockers for equipment storage.  High quality, weathertight Dutch doors lead directly to the wide side decks while stairs to the port side of the settee provide easy access to the flybridge.  Textilene screens for all pilothouse windows provide sun protection.

• Proper watch berth is elevated for visibility and long enough for sleeping

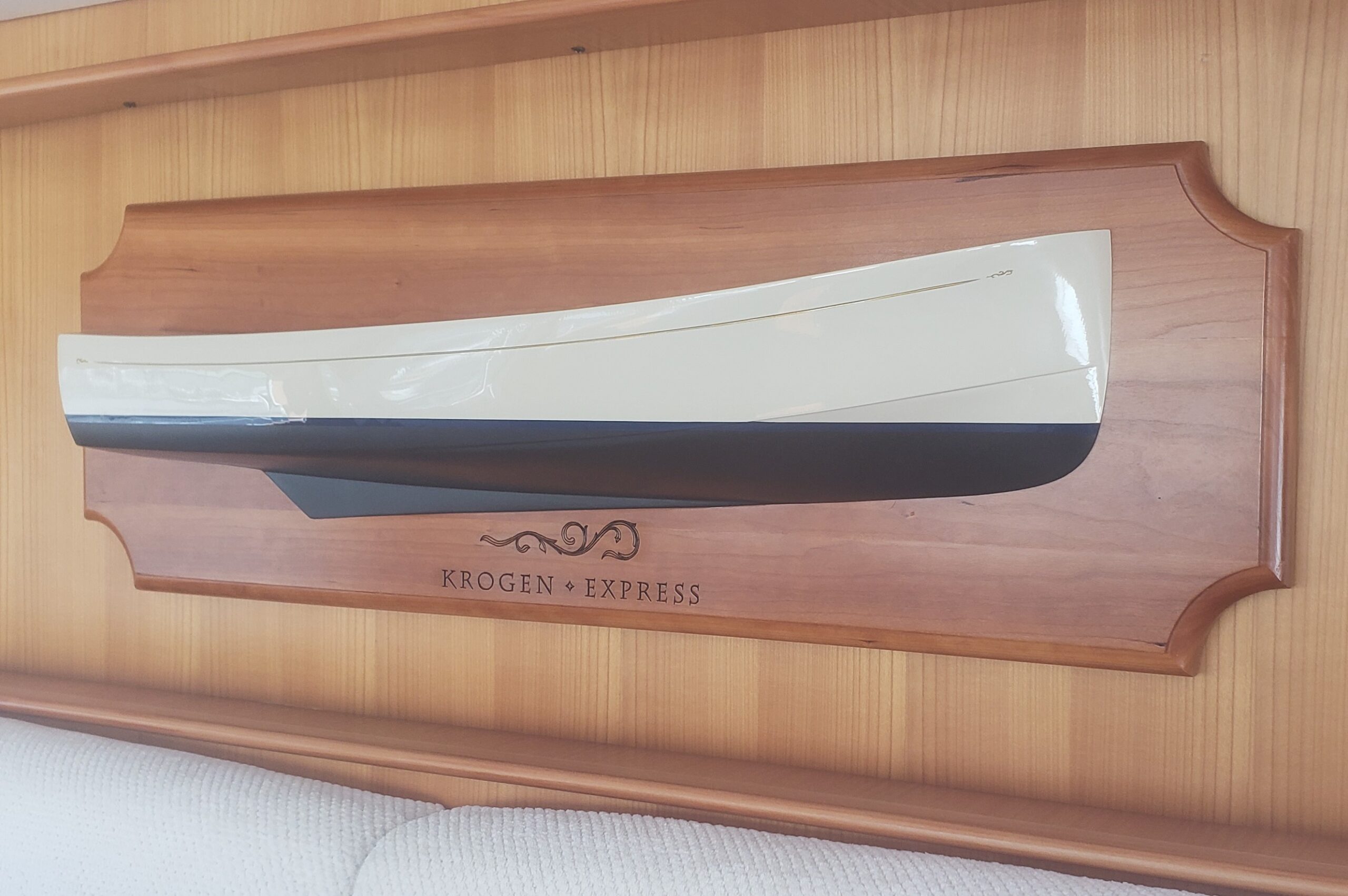

• Half hull model is color coordinated with actual hull
• Reading lights (2) to port and starboard
• Textilene screens for all pilothouse windows
• Lockers beneath settee and first flybridge step
• Weathertight Dutch doors (2) provide access to both side decks
• Inside access to flybridge

Guest Stateroom/Office

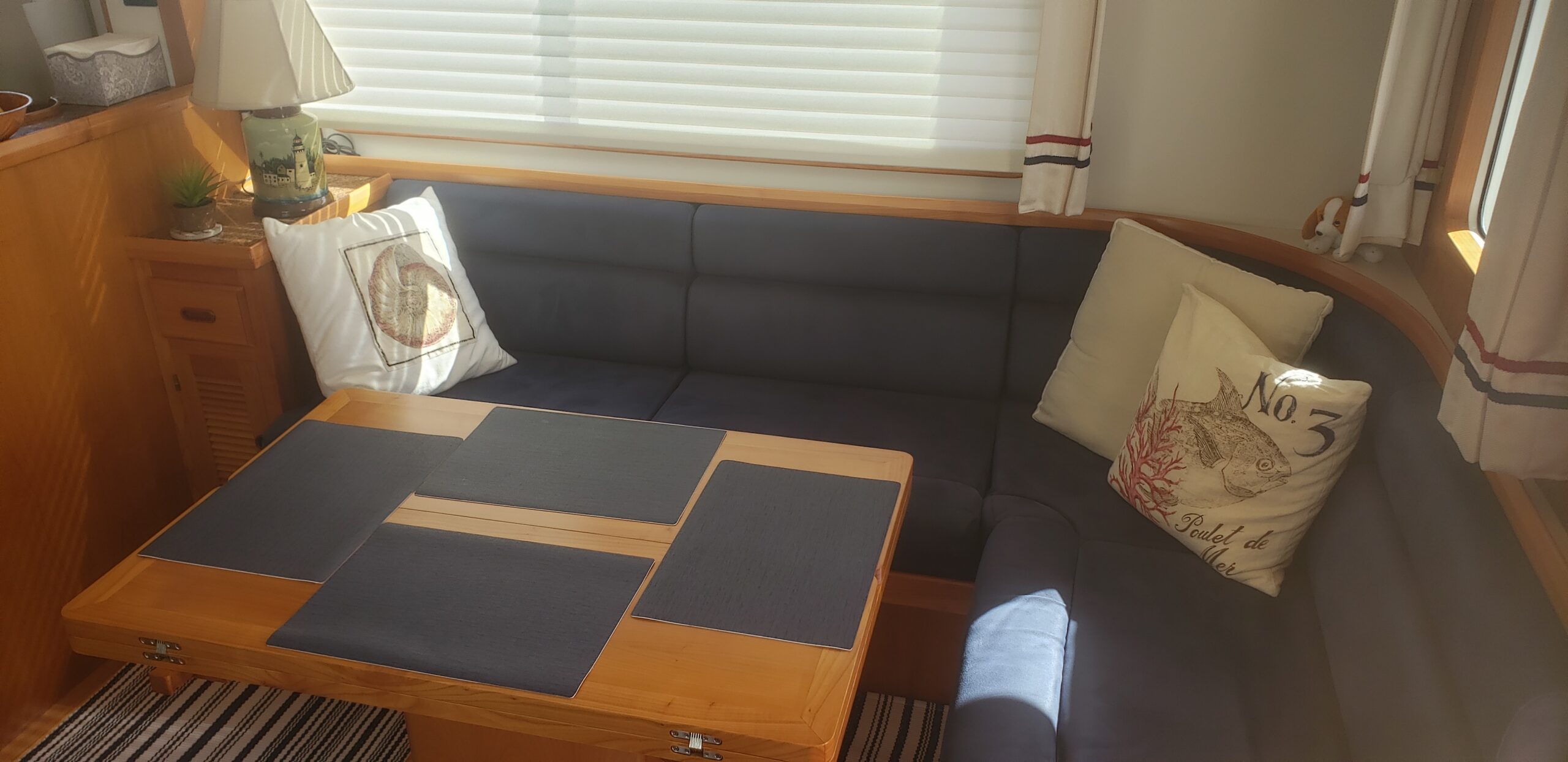

An L-settee that easily pulls out to a double berth highlights the flexible nature of the guest stateroom, while a Pullman berth adds additional sleeping capacity.  Located inboard is a large desk with drawers.  Aft and outboard is a large hanging locker while beneath the settee are two additional large drawers.  Two port lights and a screened hatch overhead make the GSR feel open and airy while 3 wall mounted lamps provide additional lighting for reading.  The bilge area below, or pump room, is home to the 3 CruiseAir reverse-cycle air conditioners, the water heater, fresh water pump, and shower drain system. A full head is located across the companionway.

• Flexible office/stateroom layout

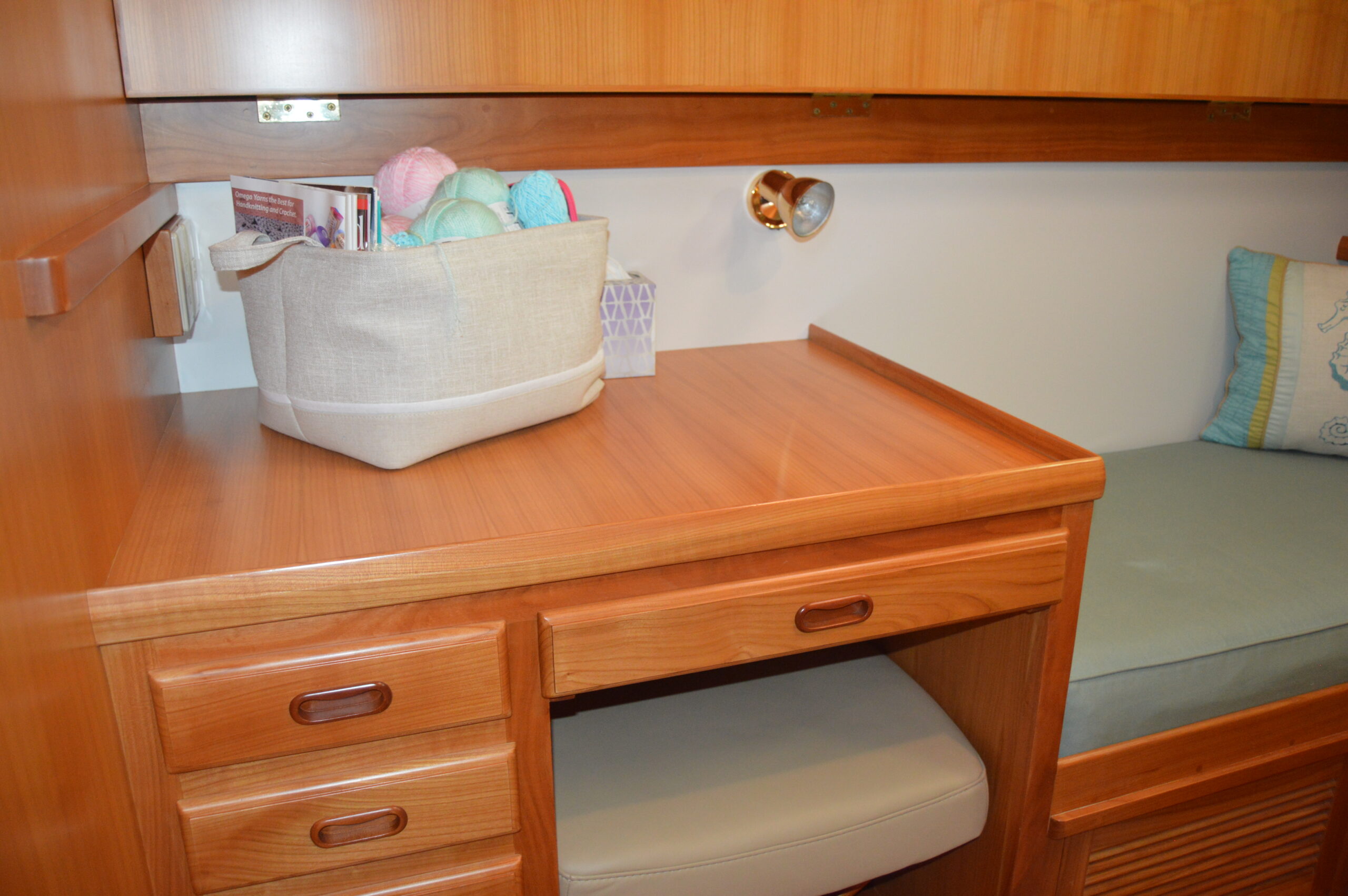

• Desk with drawers (4)
• 3 reading lamps
• Hanging locker
• Large drawers below settee
• Screened overhead hatch and two port lights

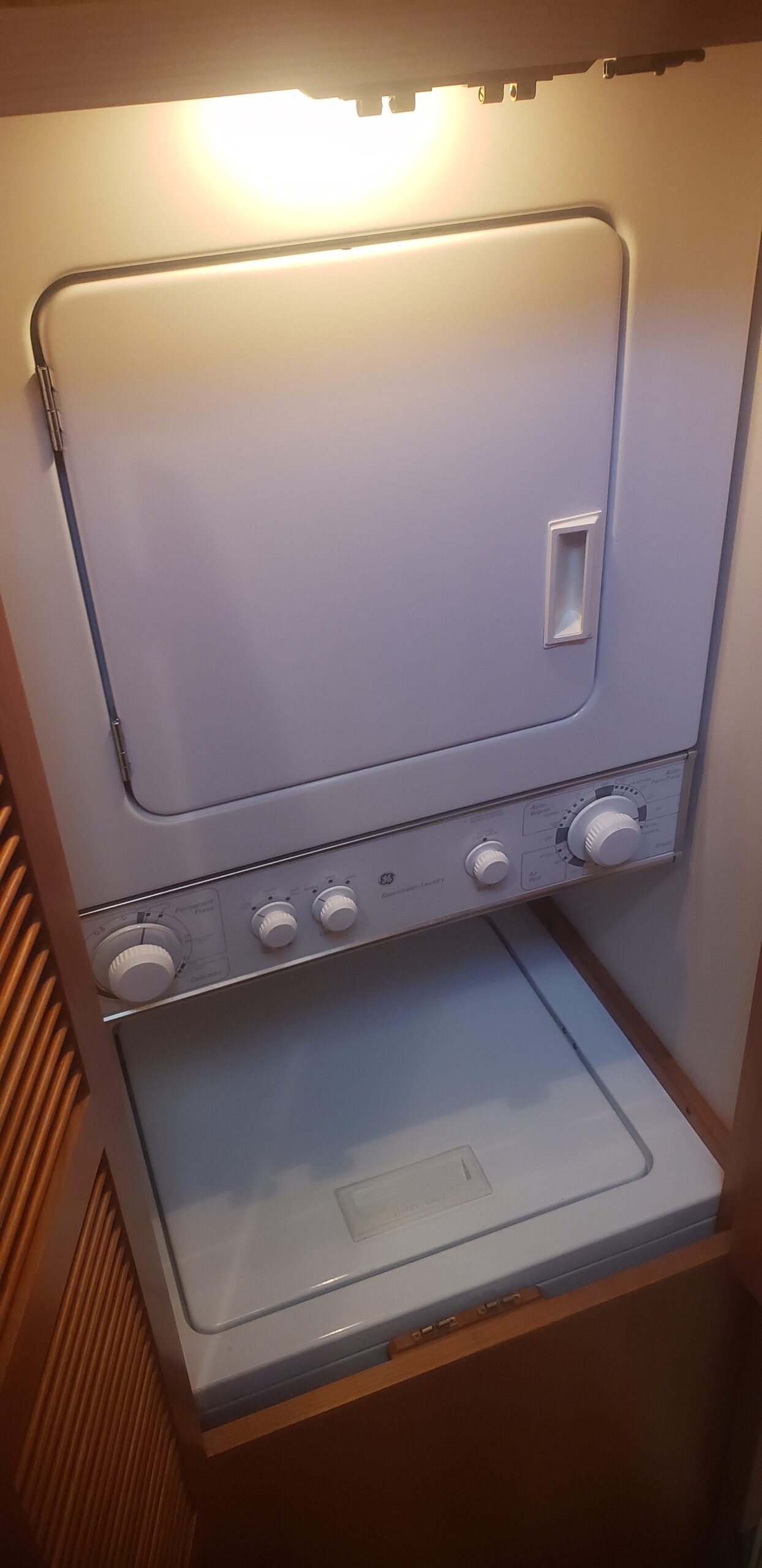

• GE stacked and vented washer/dryer in adjacent companionway

GSR Bilge/Pump Room

Beneath the guest stateroom, separated from engine room heat, is a dedicated space for 3 CruiseAir AC units, the freshwater pressure system, water heater, shower drain system, and the vacuum generator for the guest head.

• 3 CruiseAir reverse cycle AC systems
• 12 volt Headhunter X-Caliber freshwater pump
• 20 gal. Torrid stainless water heater w/ heat exchanger
• Inline pumps for showers (2)
• Vacuum generator for guest head toilet
• 2000 gph Rule bilge pump
• Depth transducers (2)

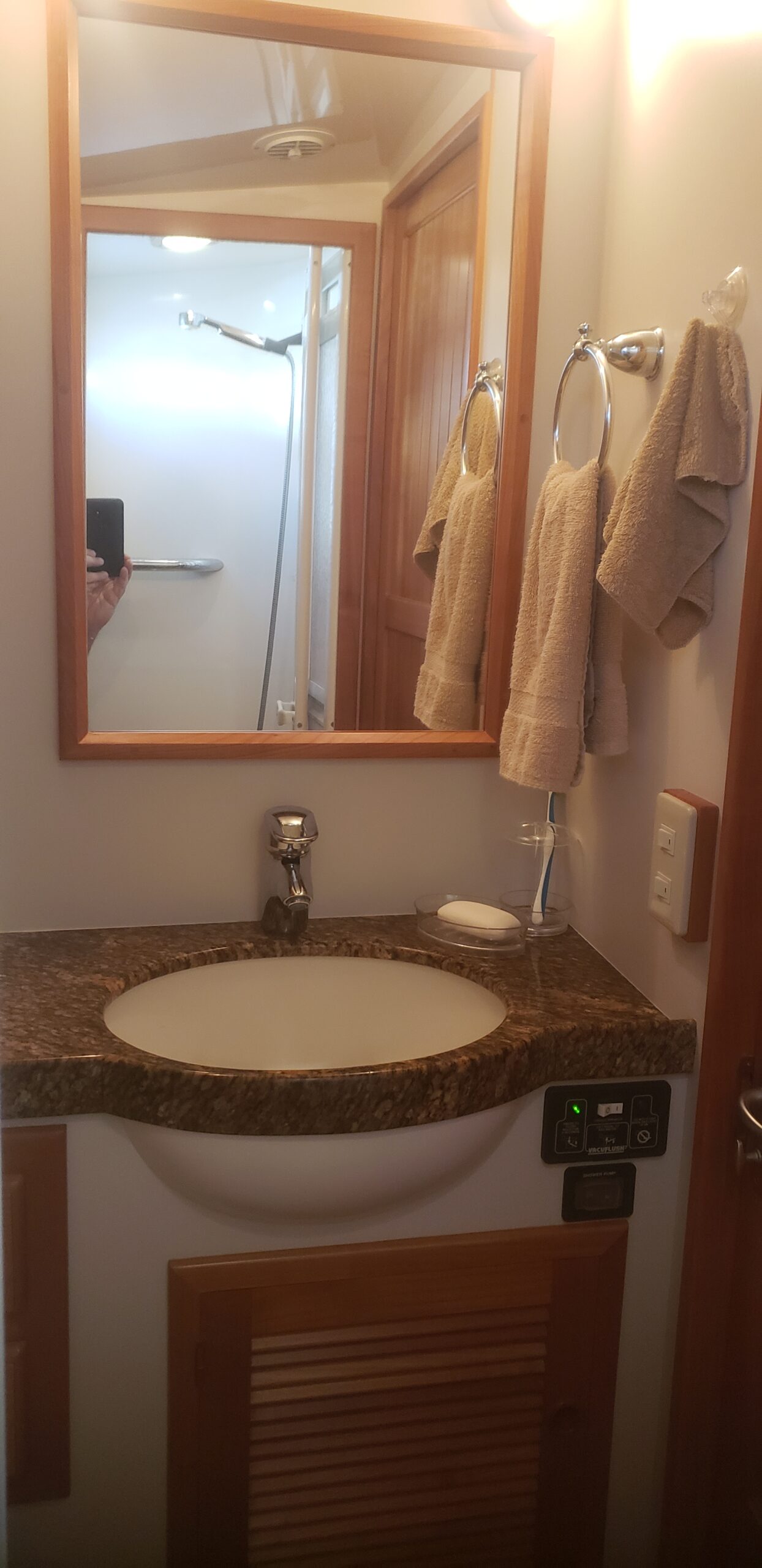

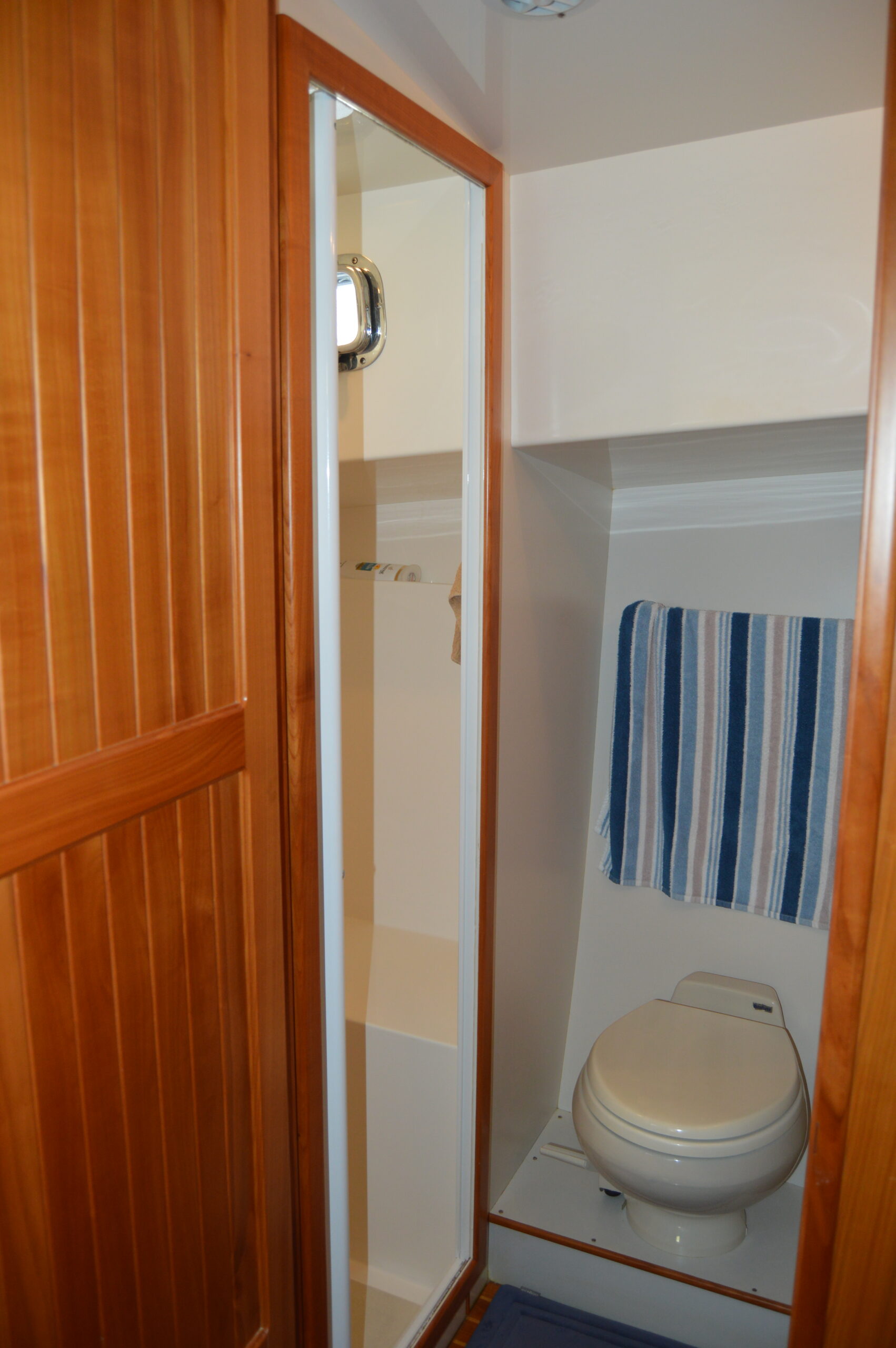

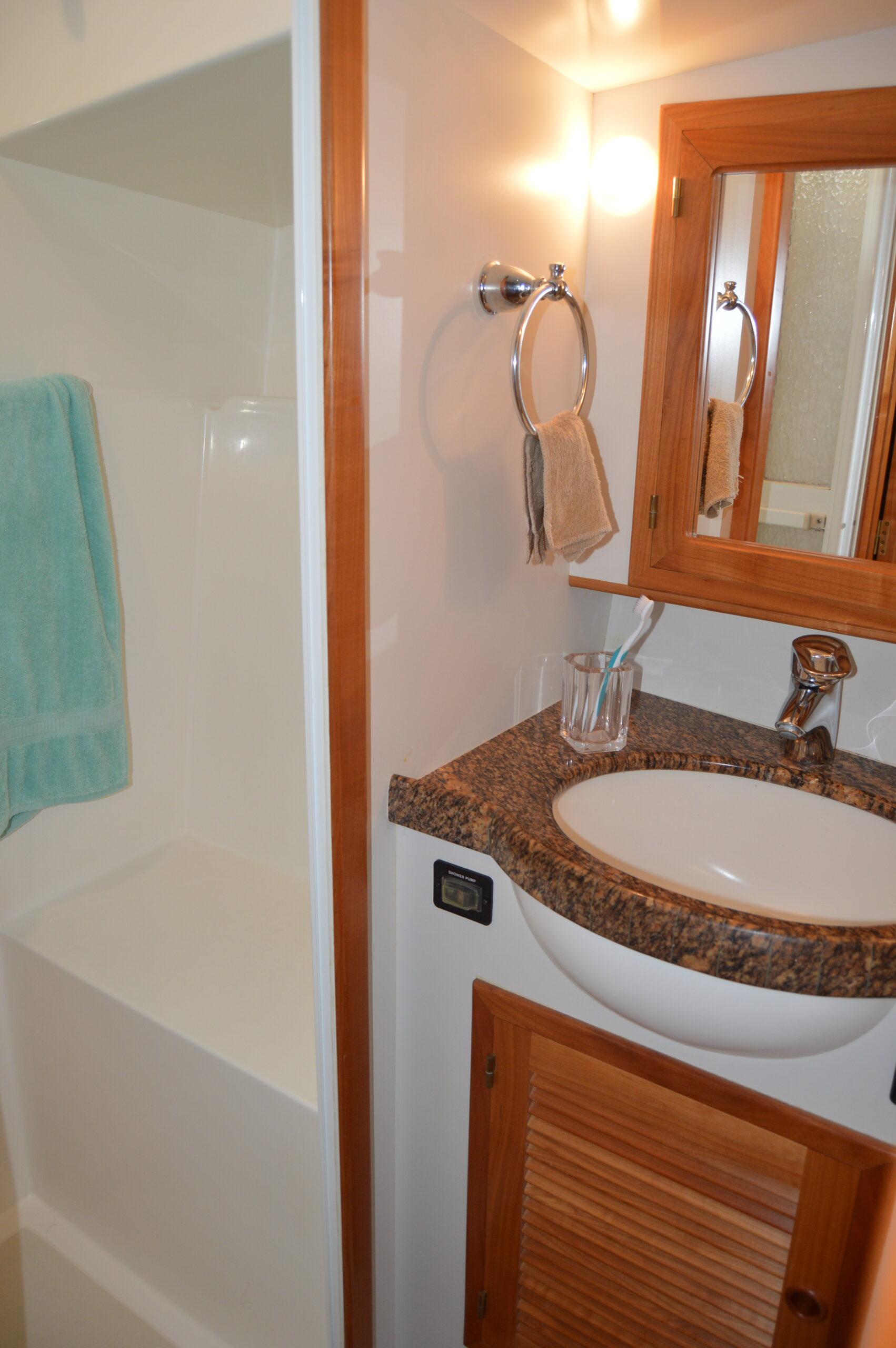

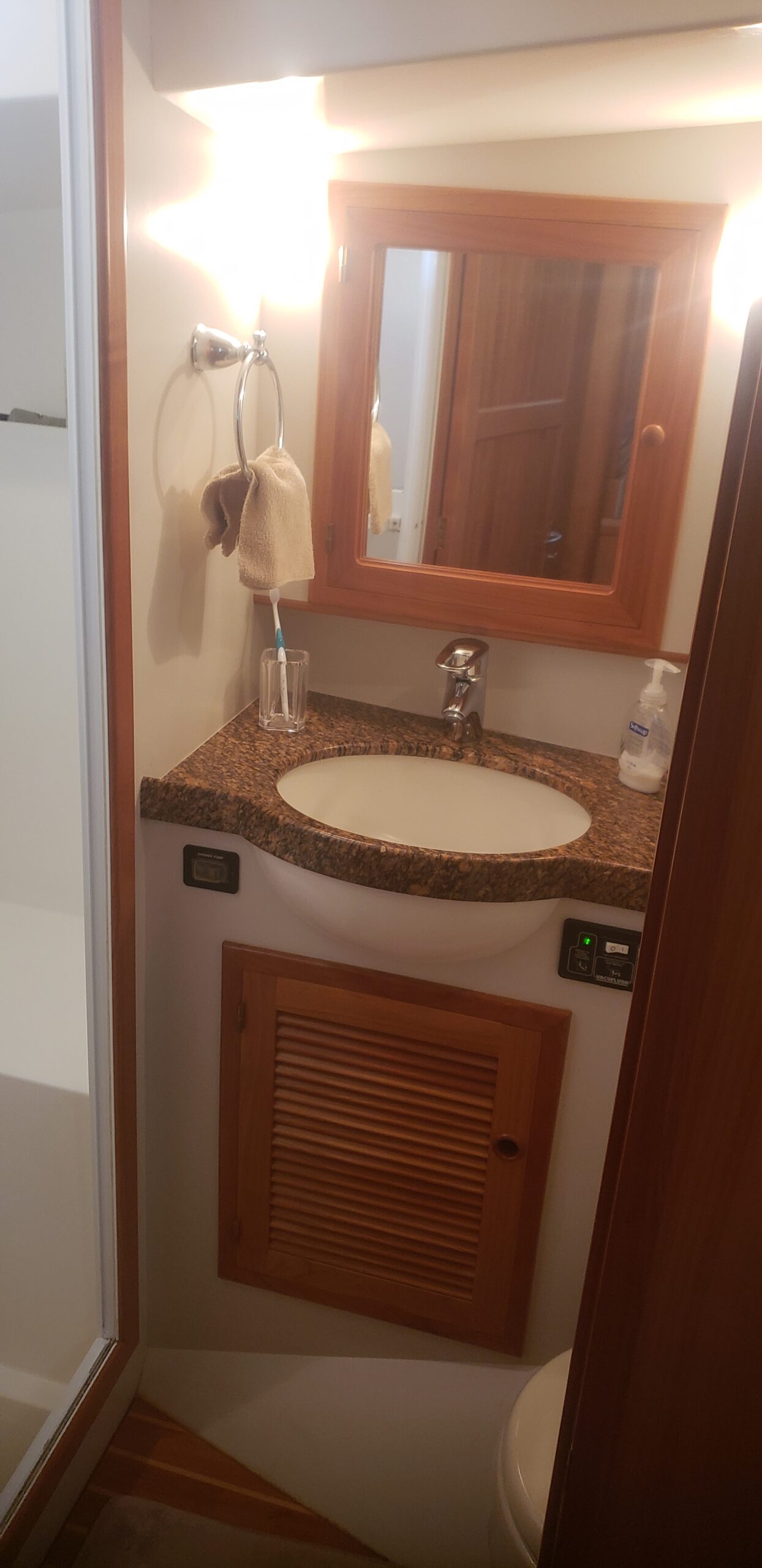

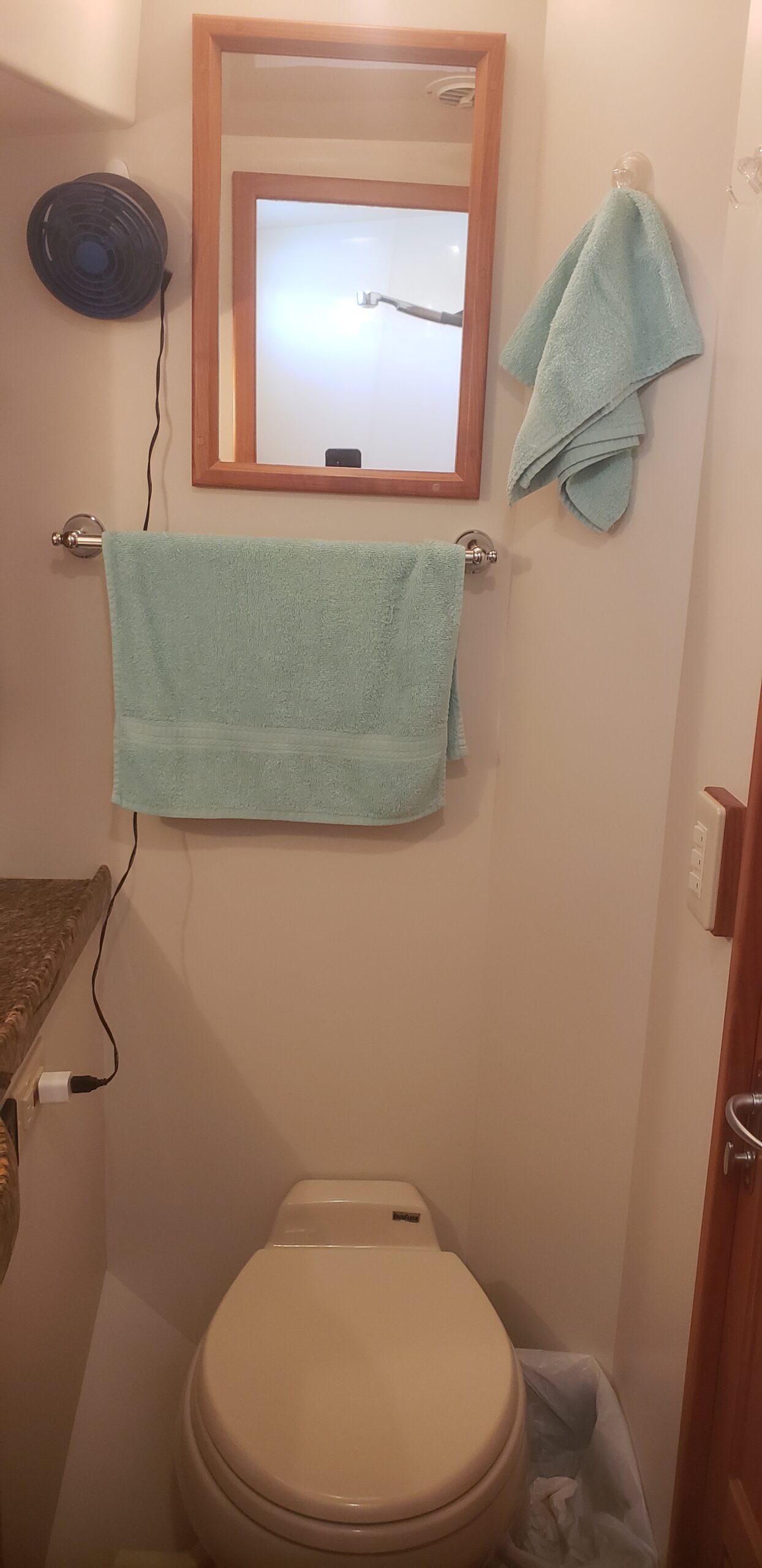

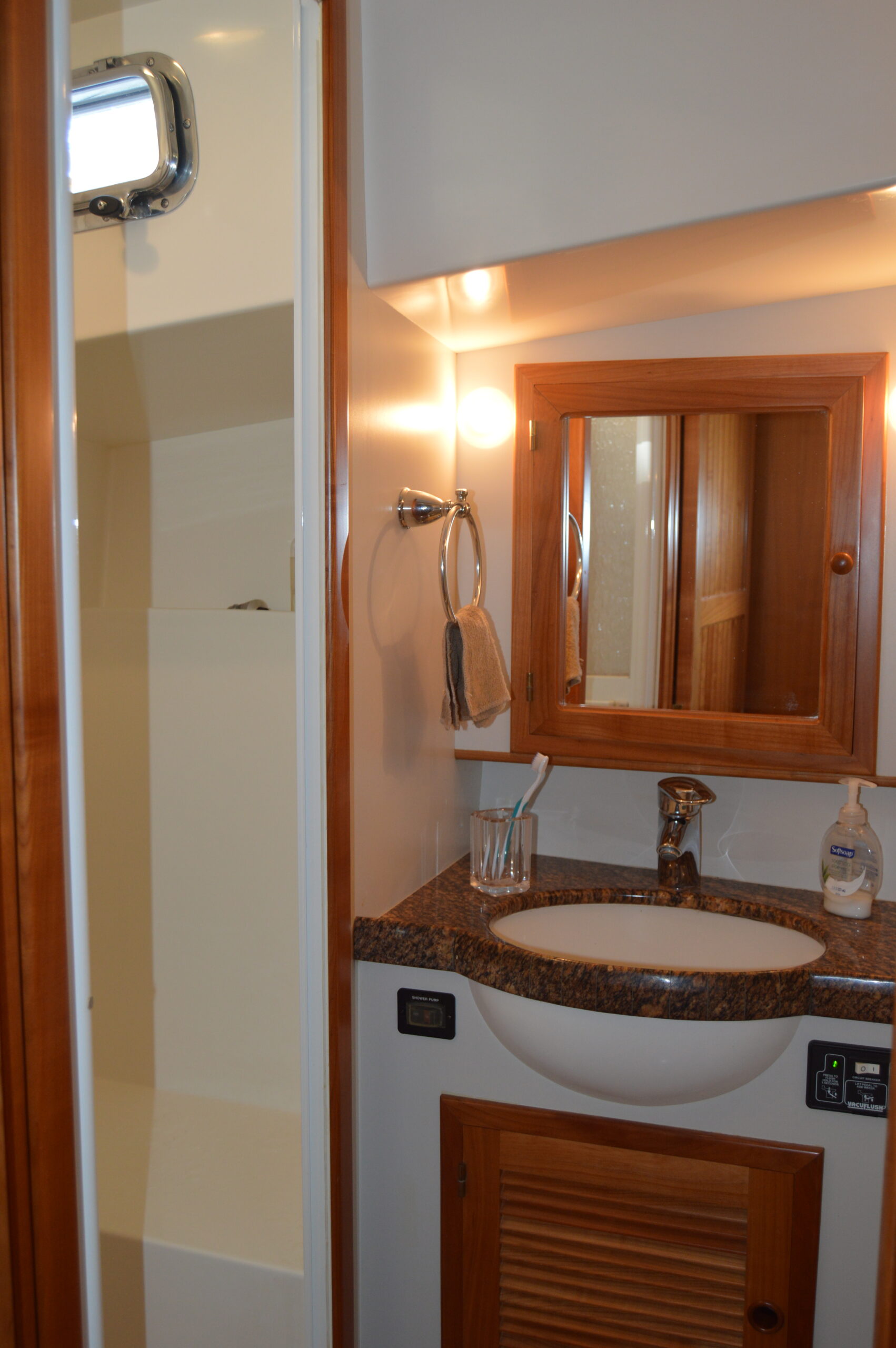

Guest/Day Head

Located to port abaft the guest stateroom is the guest head with separate stall shower.  Shower has molded in seat and bi-fold glass doors.

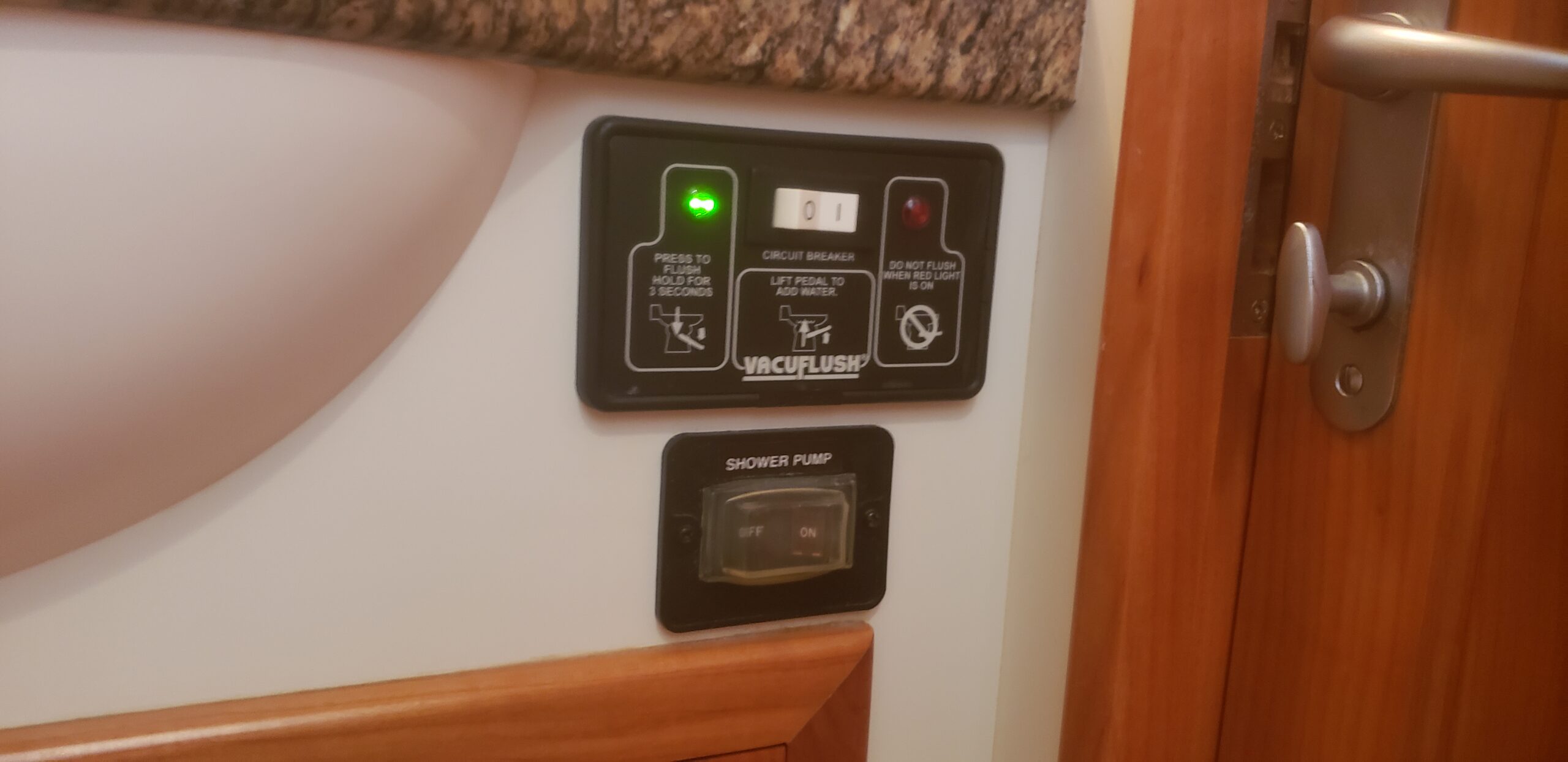

• Vacuflush toilet
• Granite counter top with fiddle and molded in sink
• Hansgrohe sink faucet and shower fixture
• Storage outboard of sink with drawers and additional space beneath
• Molded-in fiberglass shower stall w/seat
• Manship port light
• Towel racks (3)
• Mirror over sink
• Lighting above mirror and in shower overhead
• AC vent in overhead

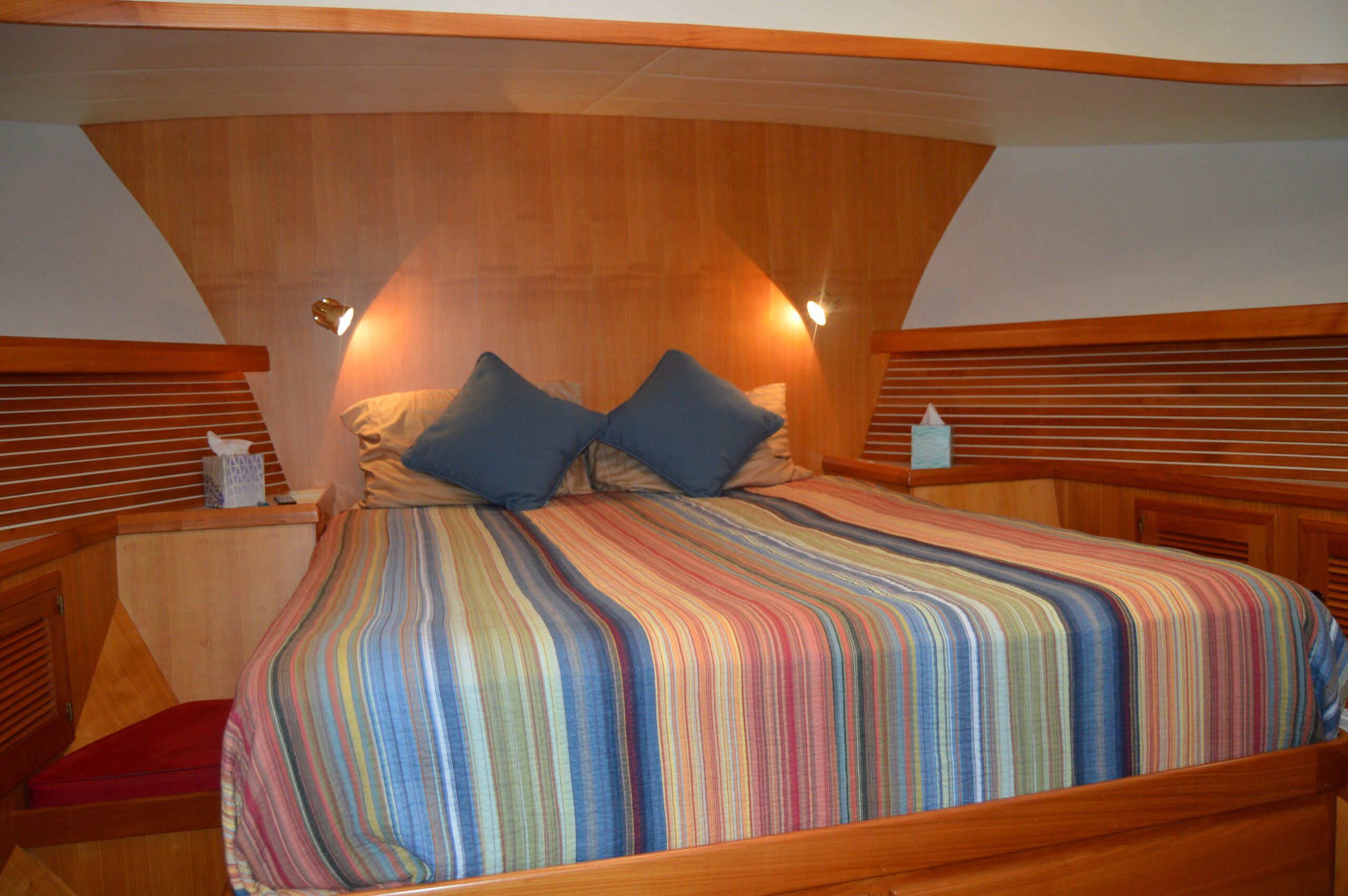

Master Stateroom

A true queen island berth is the centerpiece of the master stateroom. With over 7′ of headroom and light provided by 4 ports and a large screened deck hatch, the MSR feels surprisingly generous for a motoryacht this size. Hanging lockers on both sides, 6 deep drawers under the berth, and a dresser with drawers and shelved storage ensure her owners have ample room for their belongings.  A look beneath the berth reveals cavernous storage and provides access to the dedicated battery bank for the bow thruster and windlass. The ensuite head features a molded fiberglass shower stall with a seat, Vacuflush head, and granite countertops.

• Centerline standard queen island berth
• Over 7′ headroom
• Screened overhead hatch
• 4 Manship portlights with screens
• 2 reading lamps

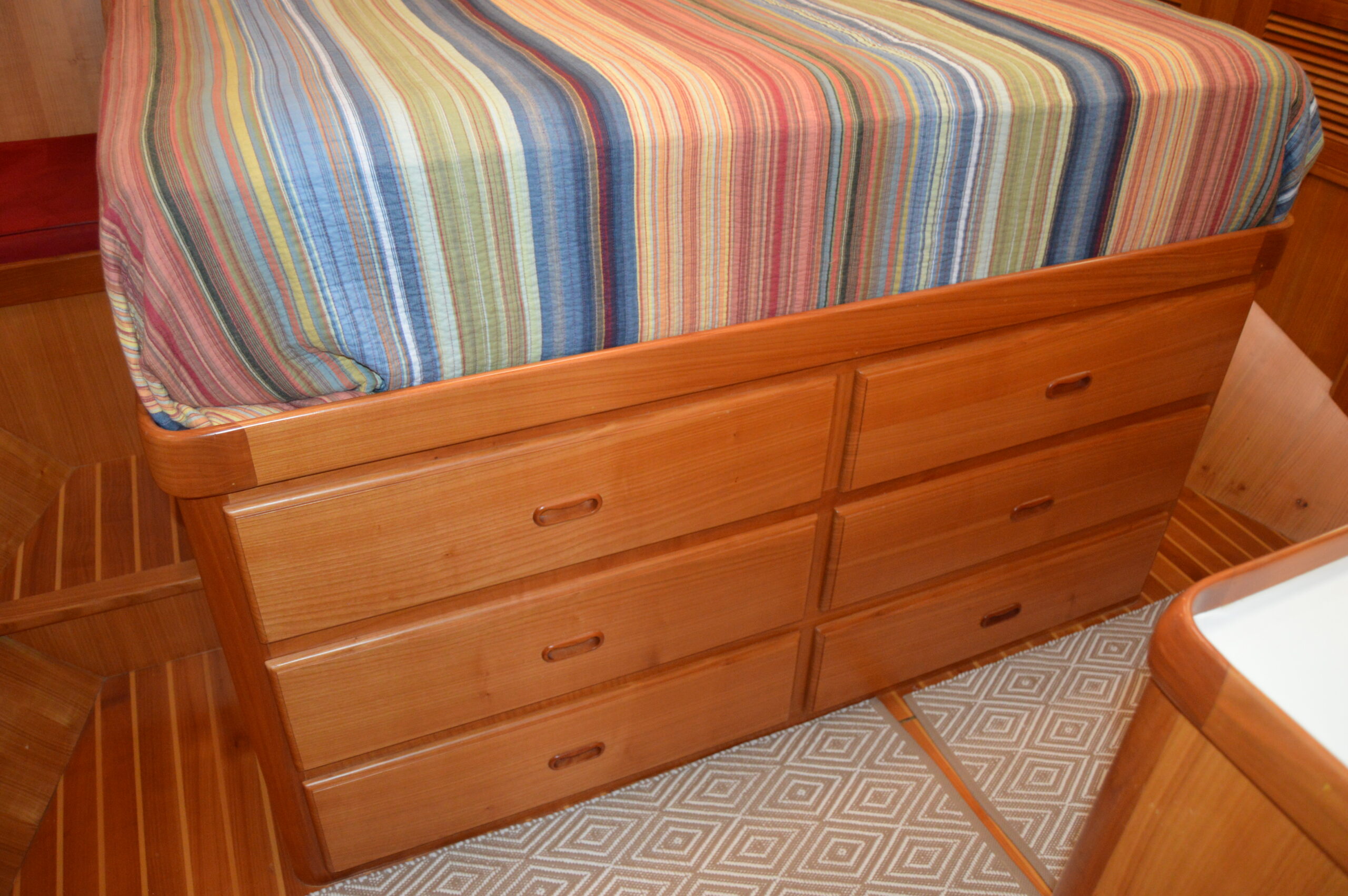

• 6 deep drawers beneath berth

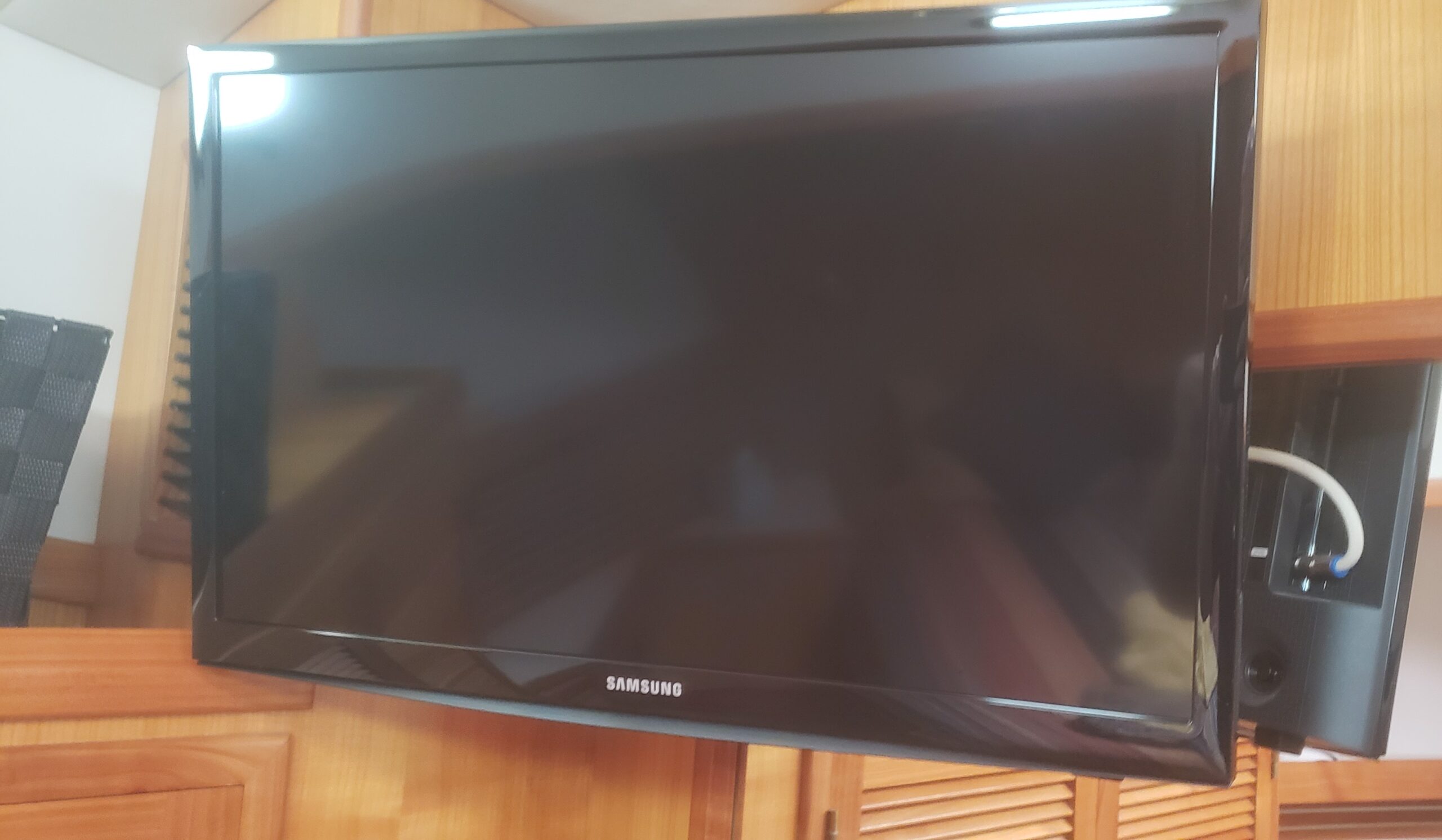

• Samsung 19″ TV

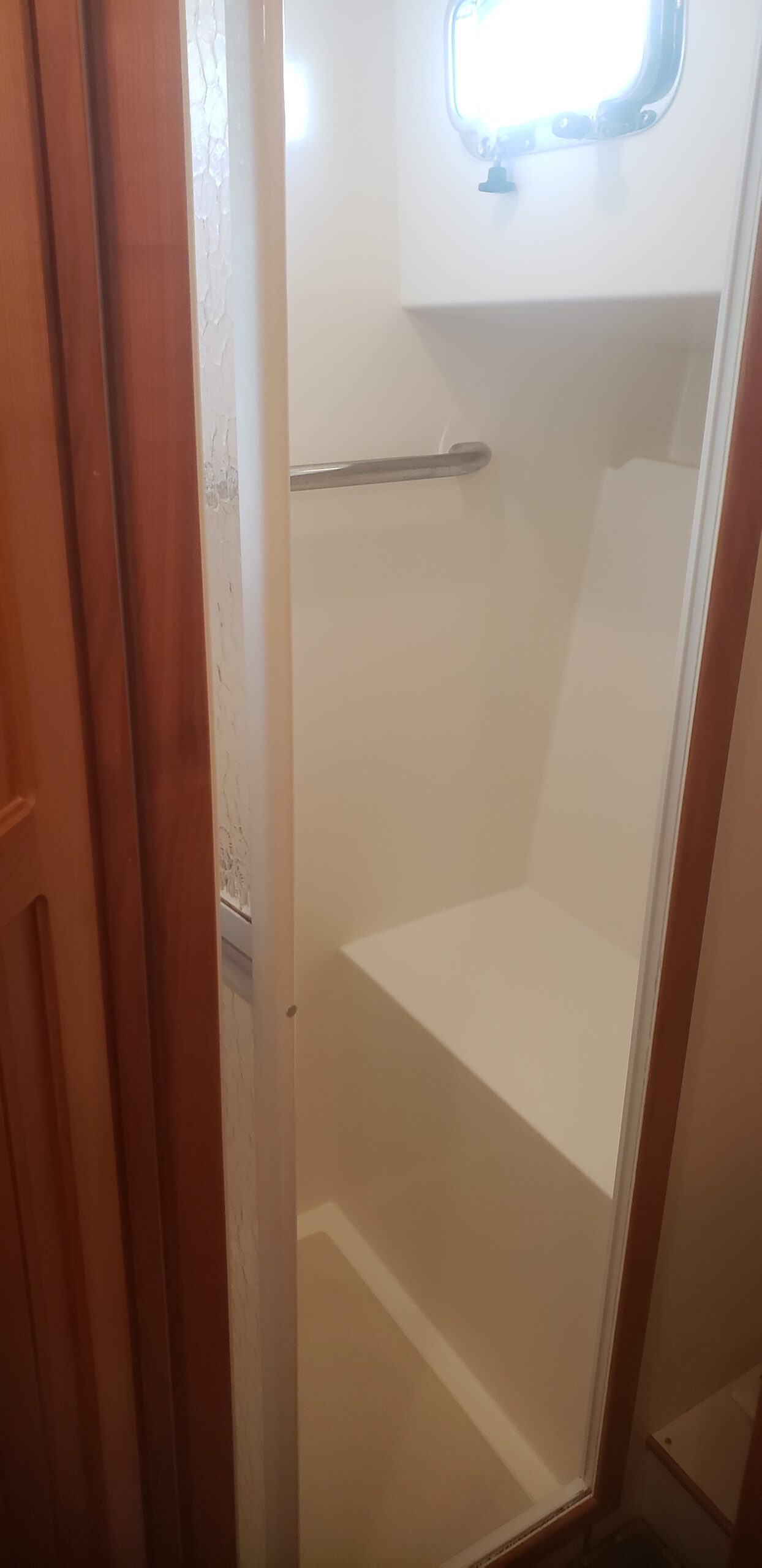

• Ensuite full head has molded shower with seat

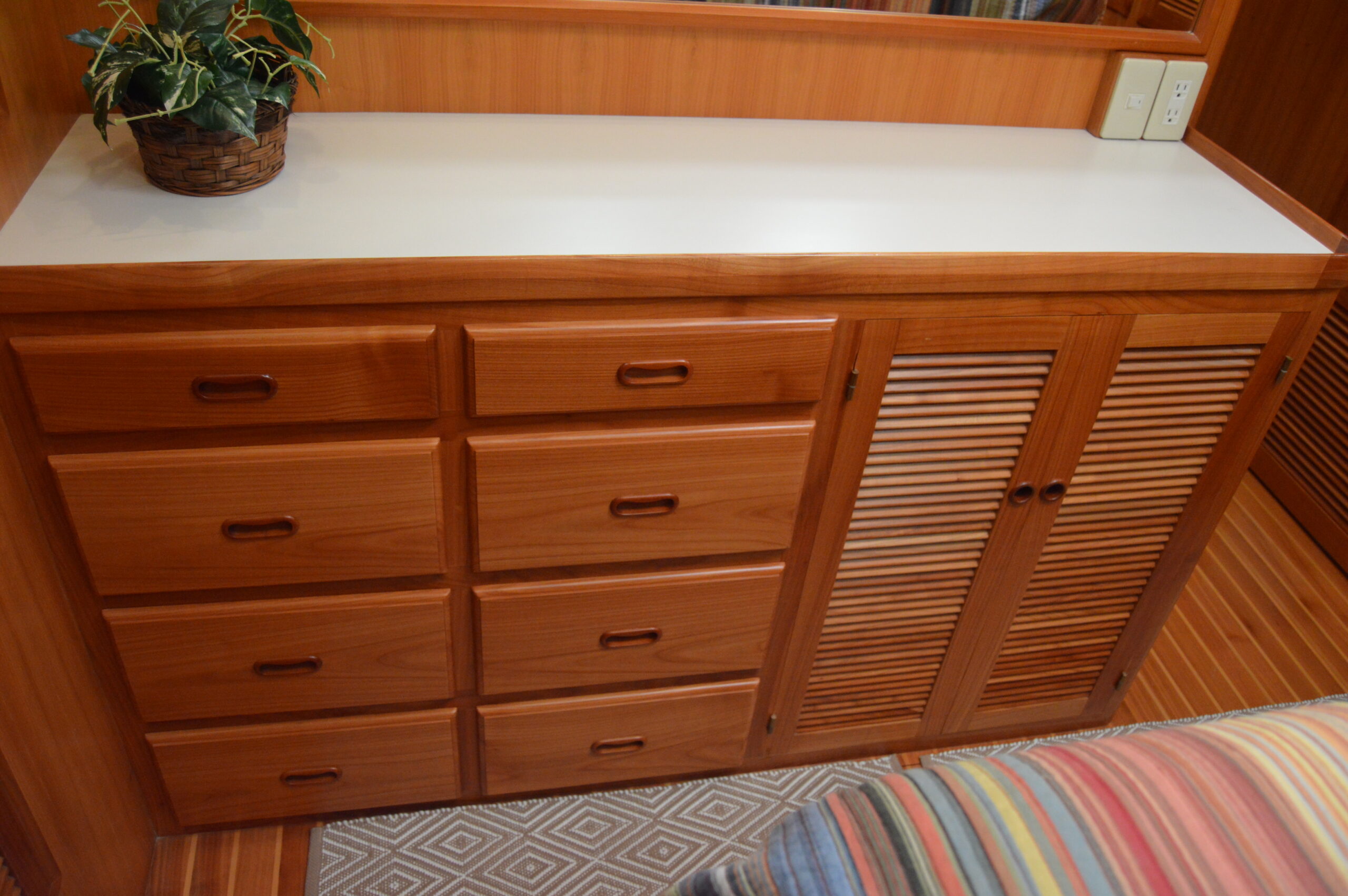

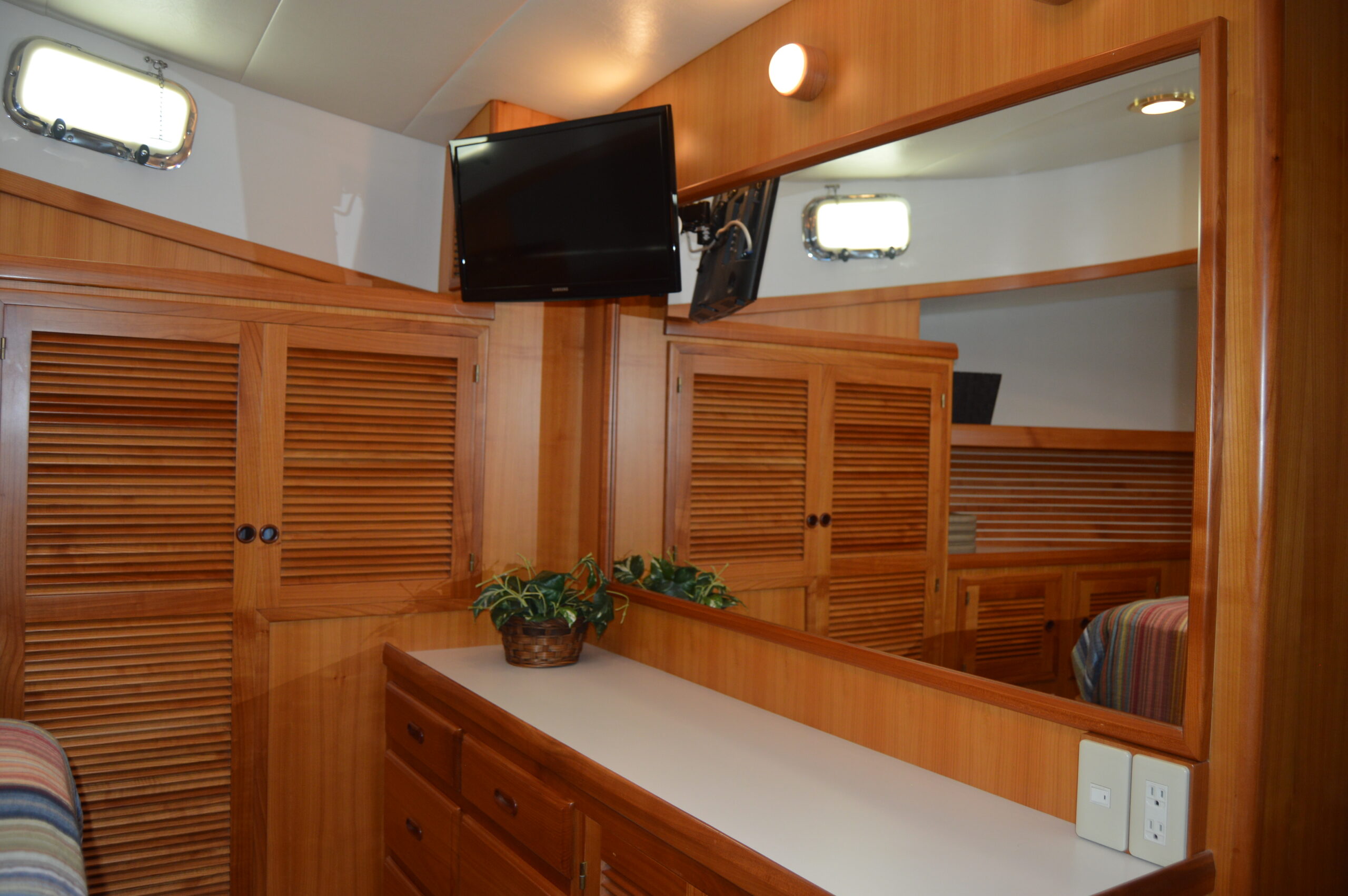

• Large dresser with drawers and shelved storage
• Hanging lockers (2) on both port and starboard
• Additional small lockers and cubbies at hullsides
• CruiseAir SMXir zone control

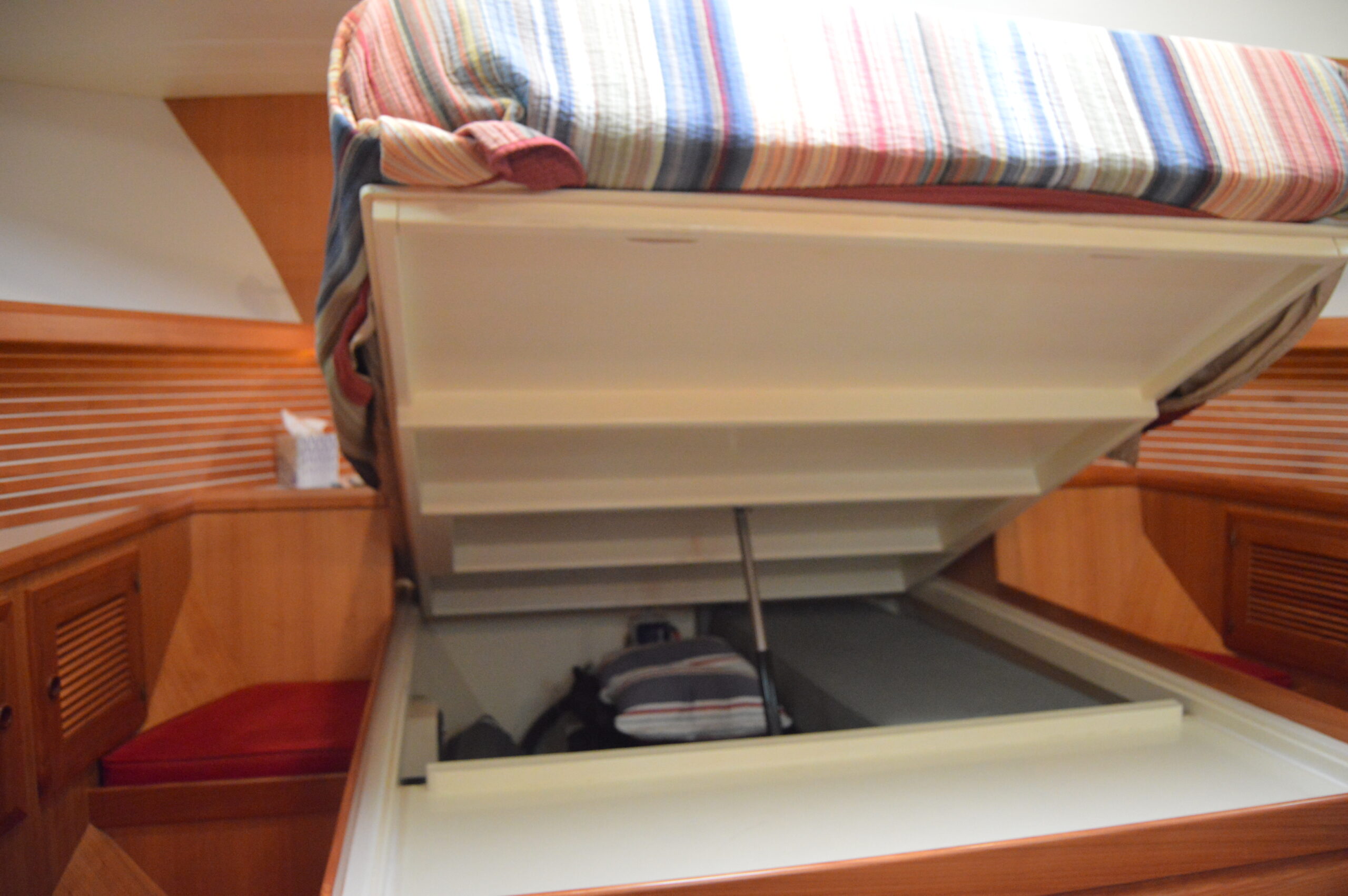

• Storage beneath berth and access to bow thruster is made easier with power hatch lift
• Dedicated battery bank for windlass and bow thruster (2-225Ah AGM 8Ds – Nov 2019)

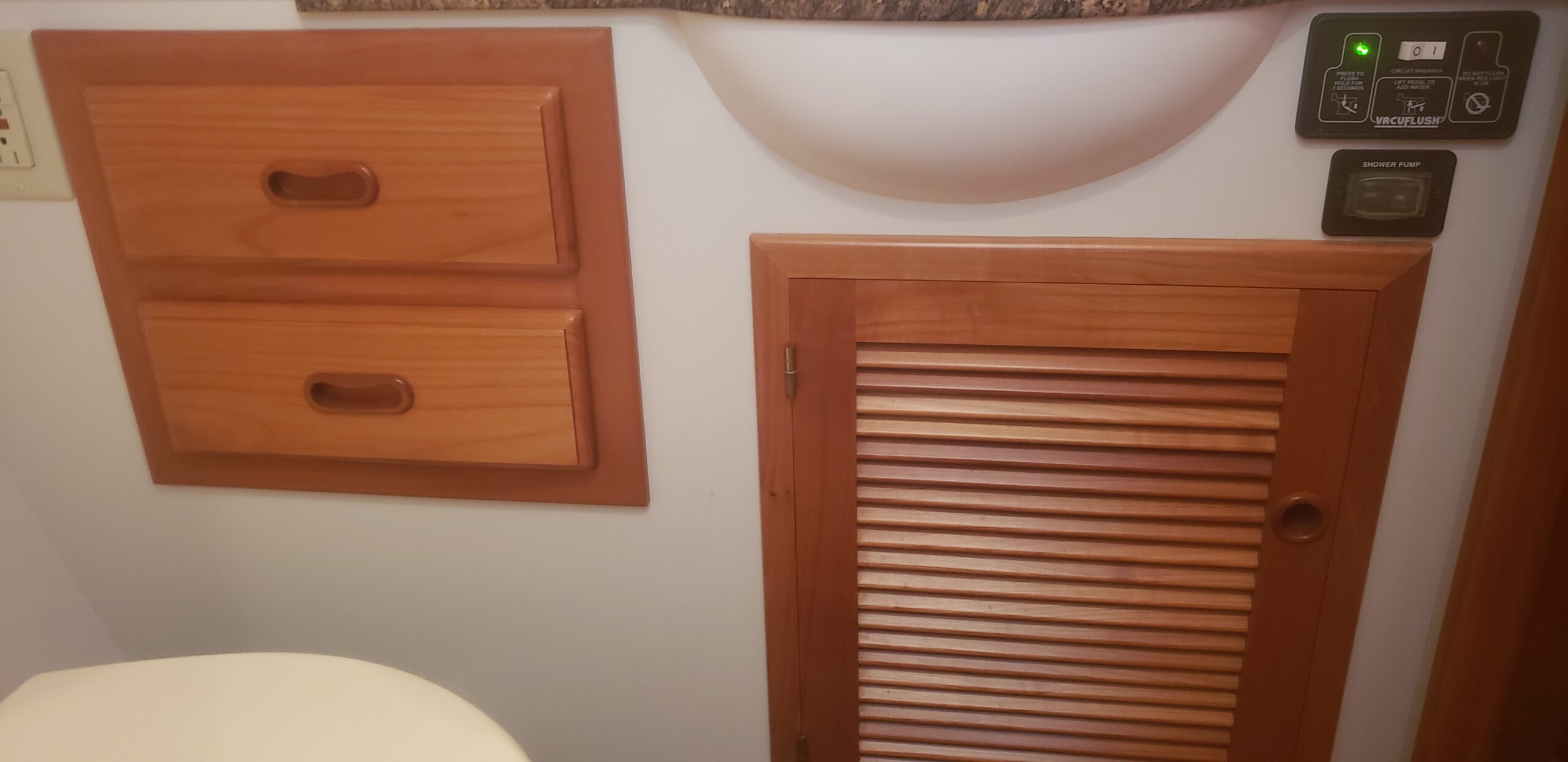

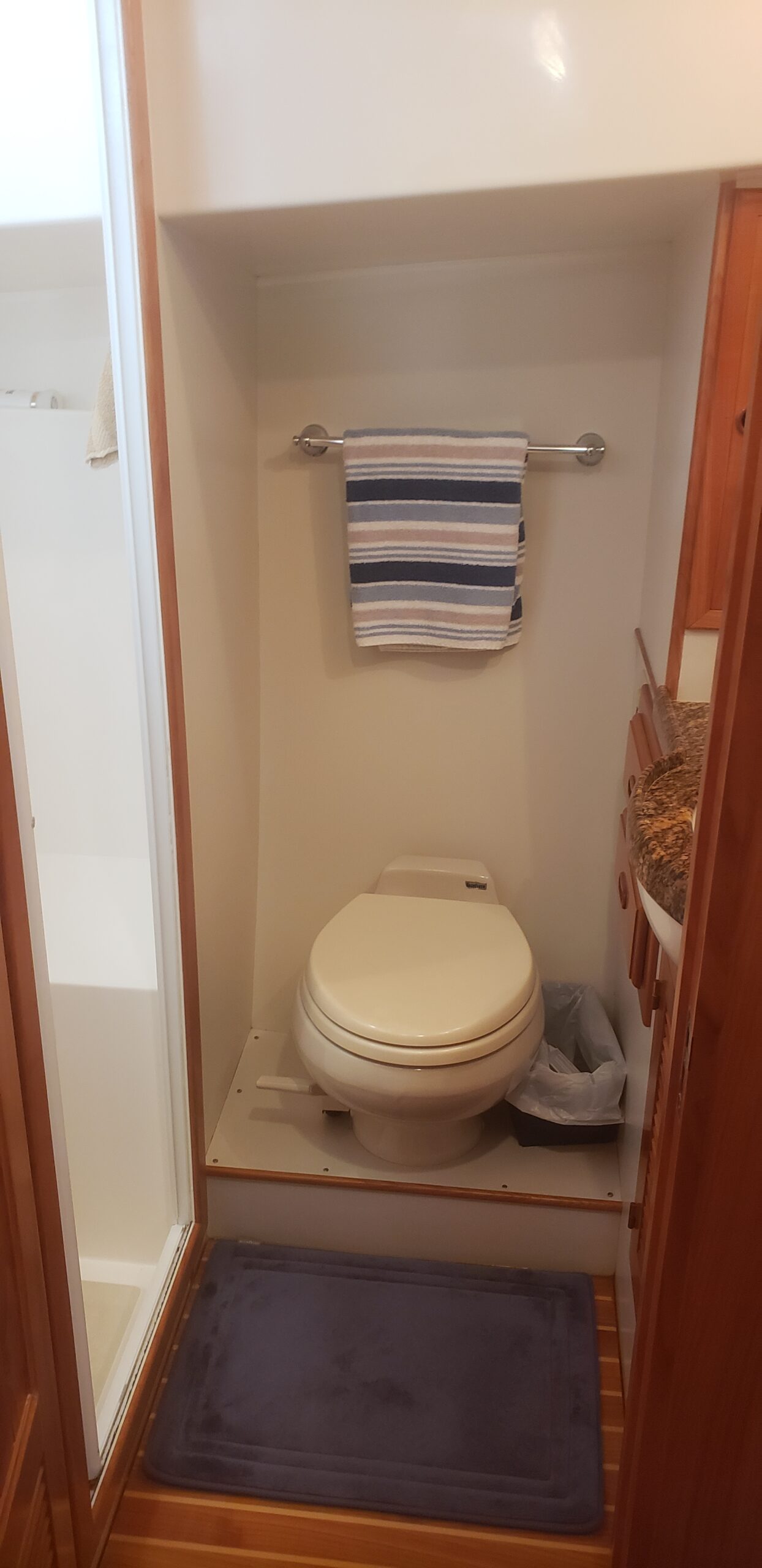

Master Head (ensuite)

The ensuite master head features a spacious stand up shower with molded in seat and bi-fold door, Vacuflush head, and fiddled granite countertop.

• Vacuflush toilet
• Granite counter top with fiddle and molded in sink
• Hansgrohe sink faucet and shower fixture
• Storage forward of sink with additional space beneath
• Molded-in fiberglass shower stall w/seat
• Manship port light in shower
• Towel racks (3)
• Mirror over sink
• Lighting above mirror and in shower overhead
• AC supply in overhead

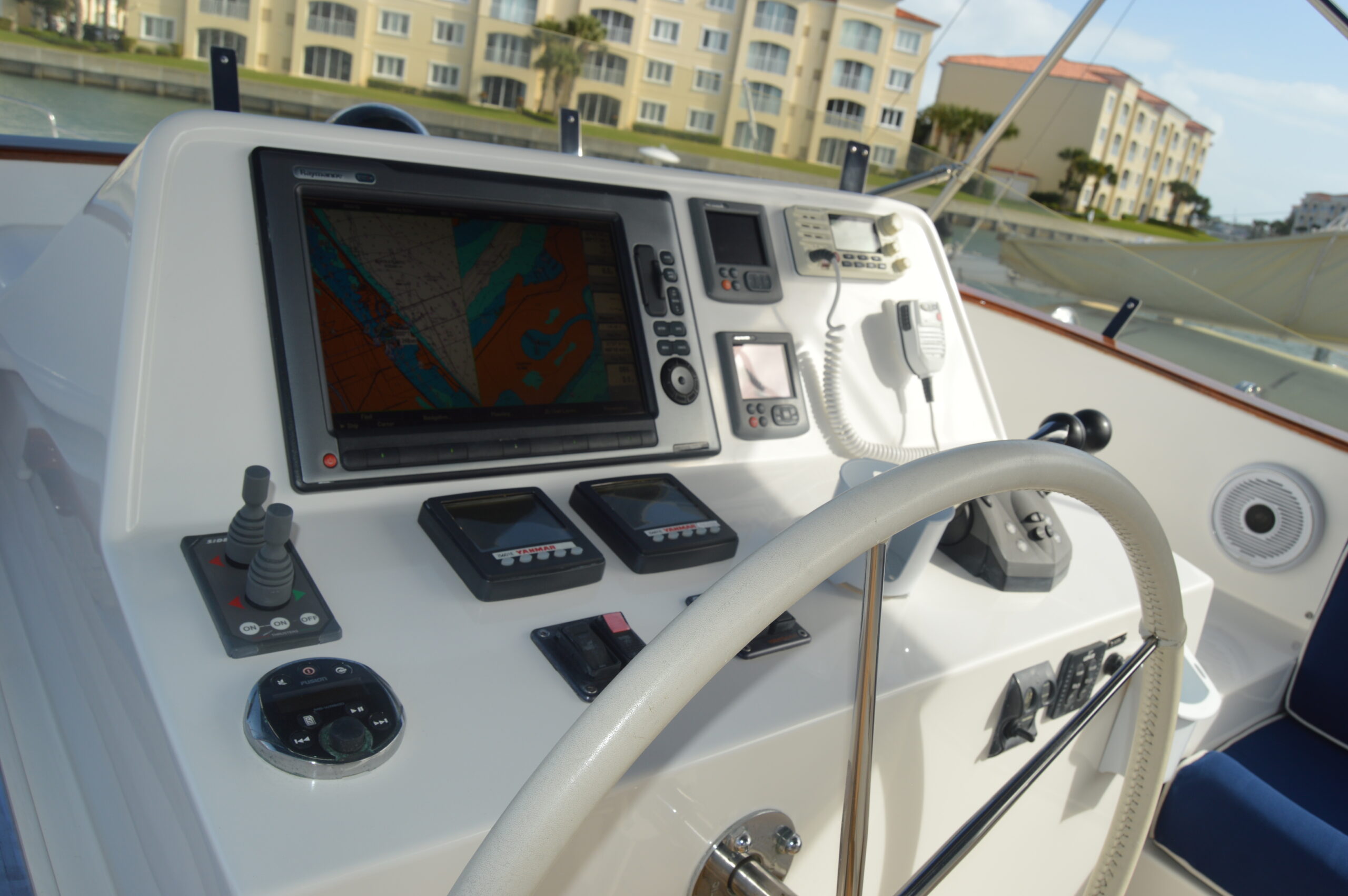

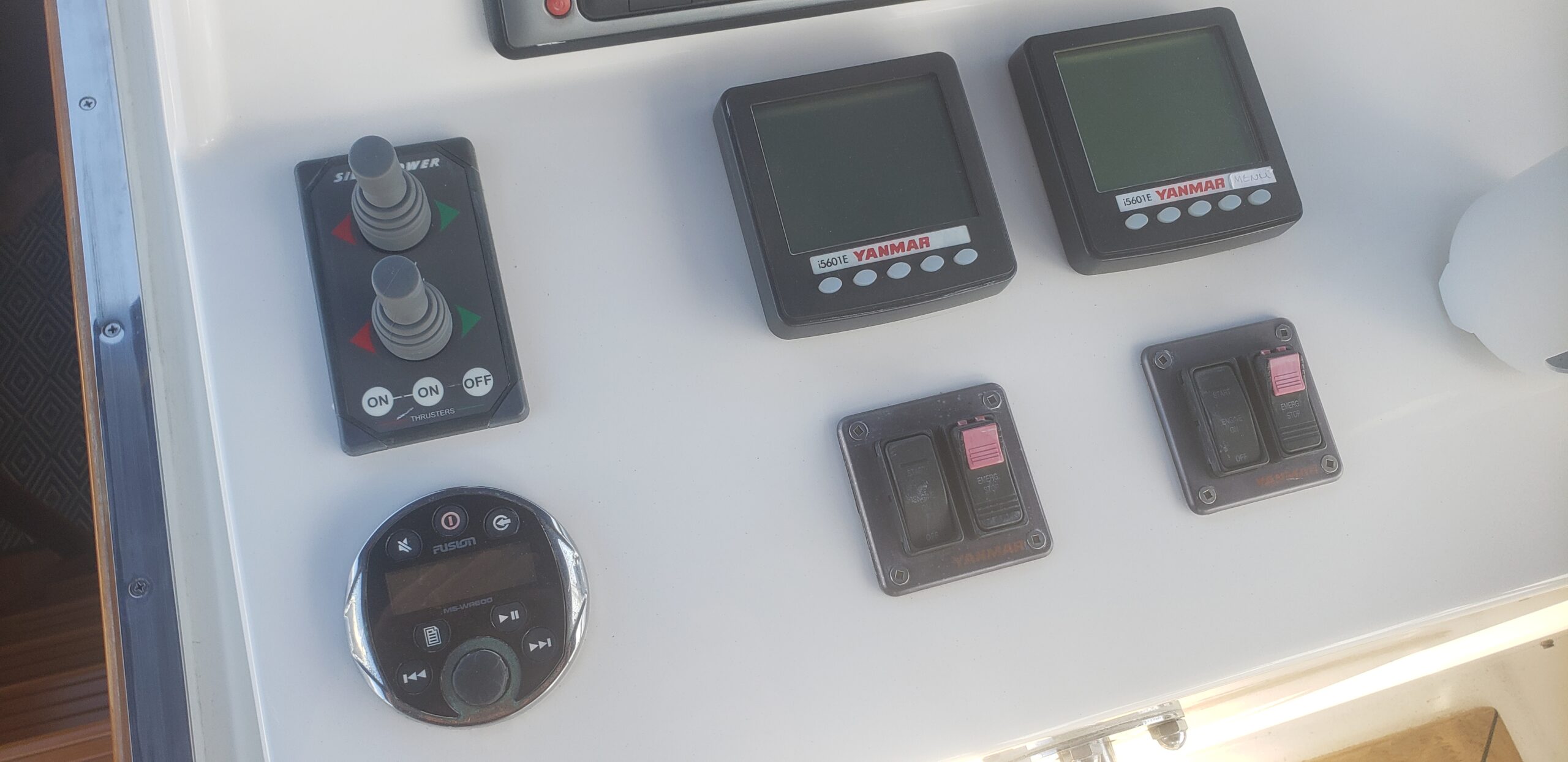

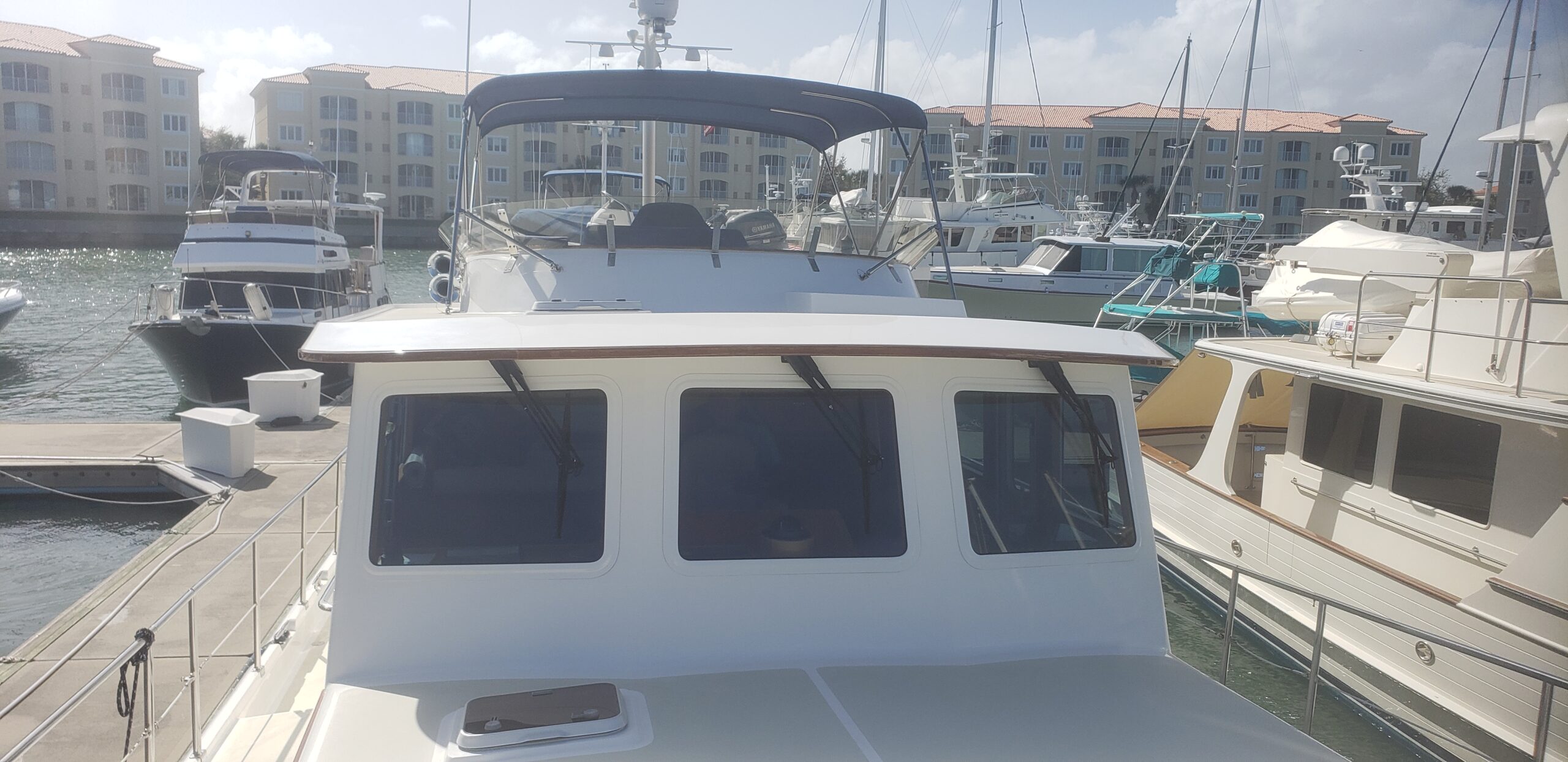

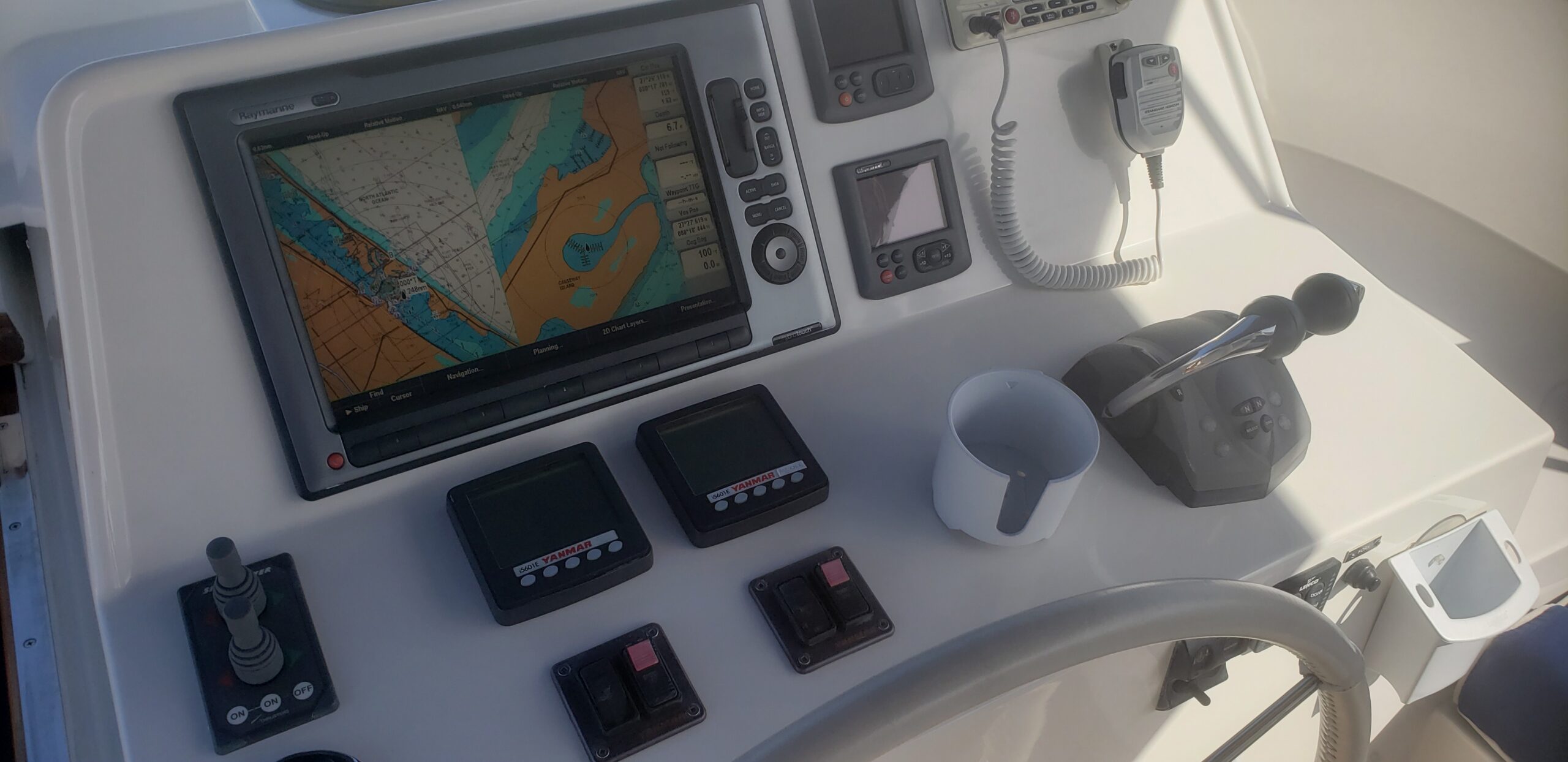

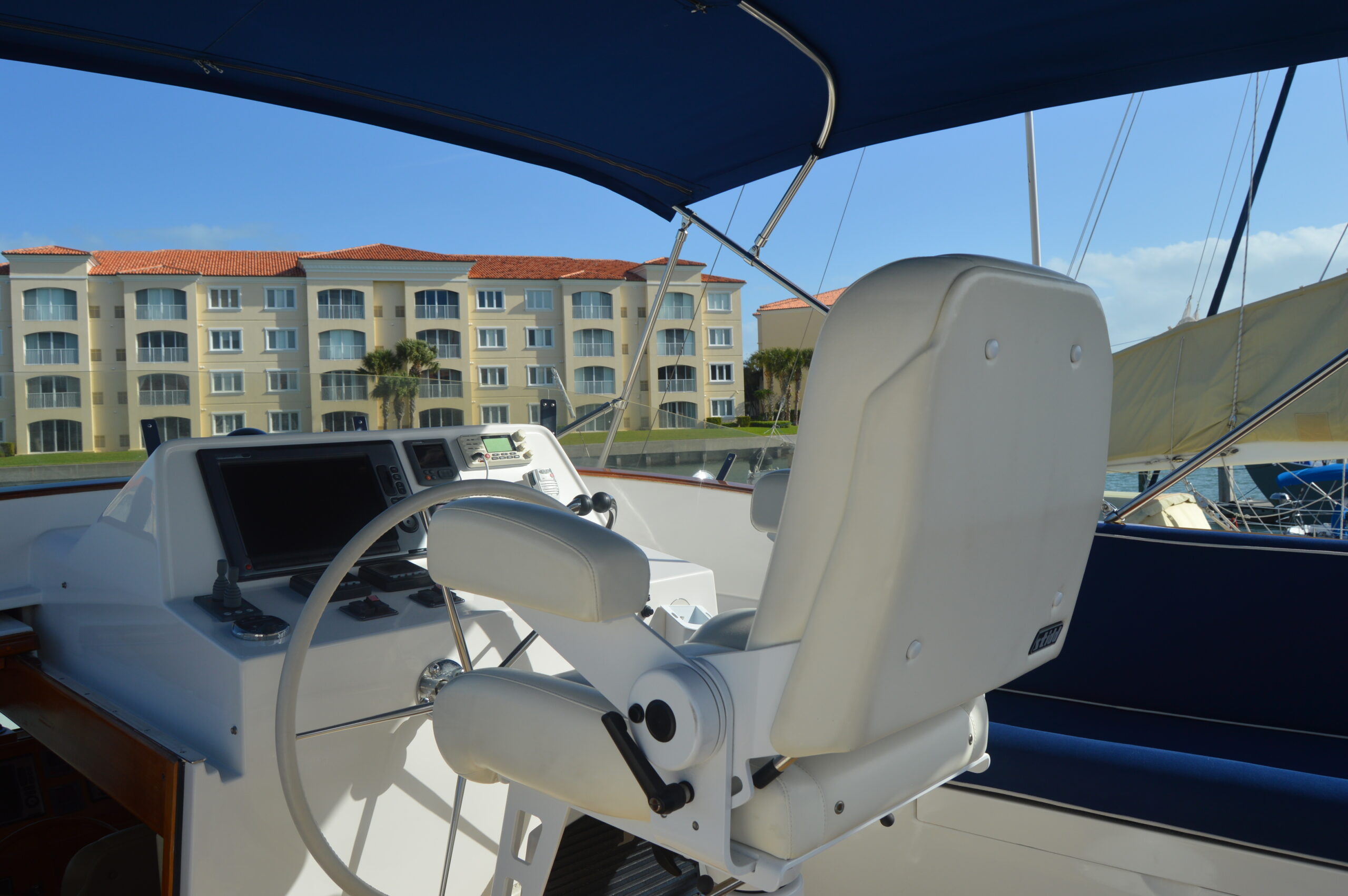

Flybridge and Boat Deck

While her pilothouse is fully capable, most Krogen Express owners prefer operating their vessels up top where they can better experience her cruising capabilities.  Conversations are easy as little engine noise makes its way up here, leaving only the soothing sounds of sea breezes and ocean waves with which to compete.  A frameless venturi windscreen deflects air above the captain sitting in the comfortable, raised centerline Stidd helm chair.  Matching Raymarine electronics provides full navigational support along with the large Ritchie compass.  A Standard Horizon VHF radio provides communications.  Controls for the Sidepower bow and stern thrusters, Lenco electric trim tabs, and Maxwell windlass are close at hand.  The Raymarine 4′ HD open array radar scanner and Intellian i3 satellite TV dome are mounted on an aluminum spar-style mast that can be lowered when needed.  Shaded by a Royal blue Sunbrella bimini top, the L-settee provides ample seating for crew and guests and contains storage beneath for the extensive canvas package as well as a propane locker.  Situated aft of the settee, the open boat deck easily accommodates two folding deck chairs and serves as access to the 11′ Nautica 4-seat luxury console tender. This is the ideal place to enjoy a cup of morning coffee or catch a beautiful evening sunset. The dinghy, with a raised console and seating for 4, is powered by a 25 hp 4-stroke Yamaha outboard and launched with the fully hydraulic Steelhead davit.

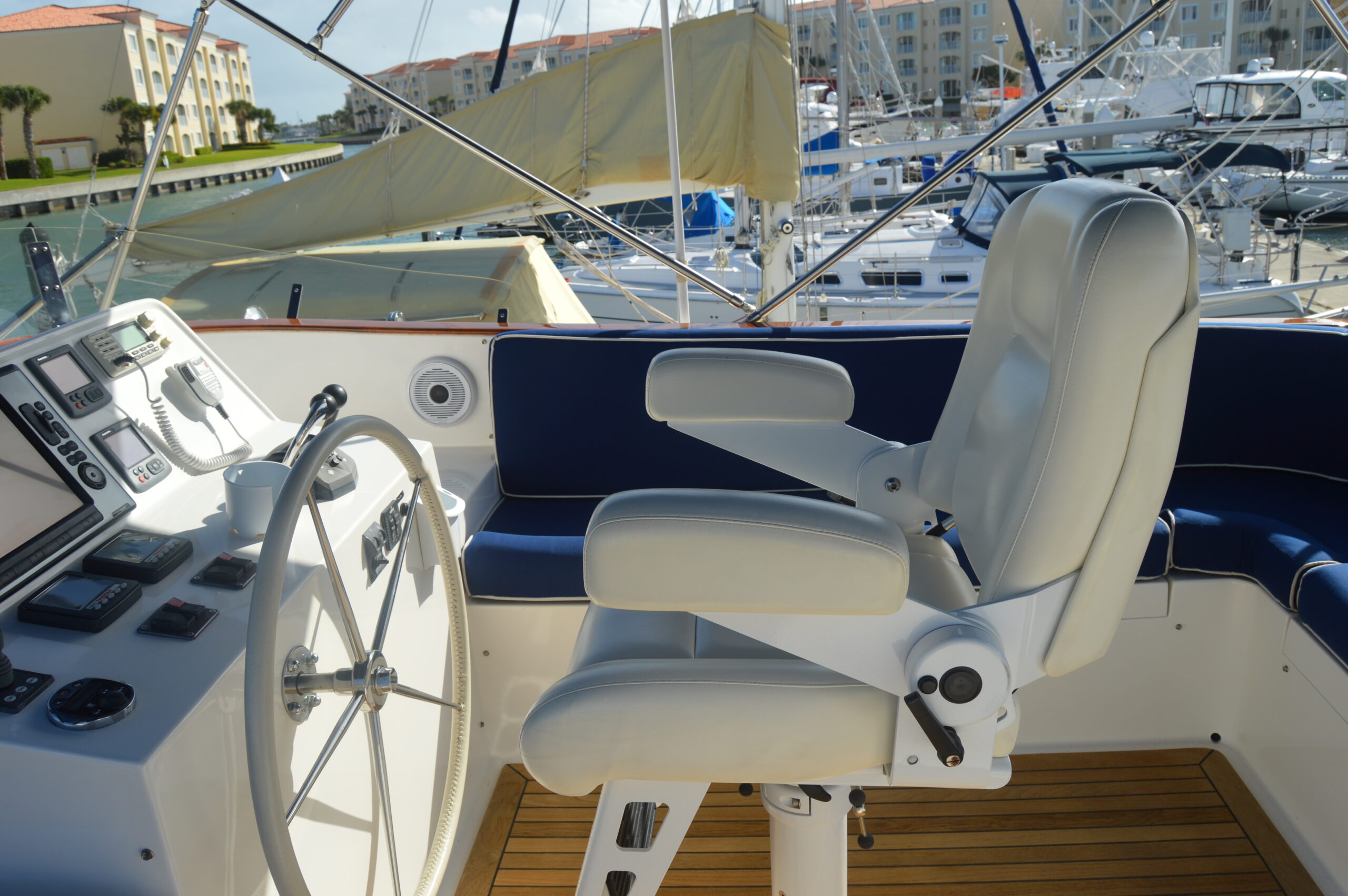

• Centerline helm with white Ultraleather Stidd helm chair
• Sunbrella bimini and L-settee cushions
• Sunbrella covers for helm, Stidd chair, and full flybridge
• Raymarine E140W 14″ Hybridtouch color radar chartplotter
• Raymarine MDF dedicated depth display
• Standard Horizon GX2000 VHF radio
• Raymarine autopilot control head
• Ritchie compass on centerline
• Yanmar i560e digital engine displays (2)
• Teleflex Morse Yanmar electronic engine controls
• Lenco electric trim tab rocker switch panel with LED indicators
• Maxwell Liberty windlass control
• Fusion stereo wired remote

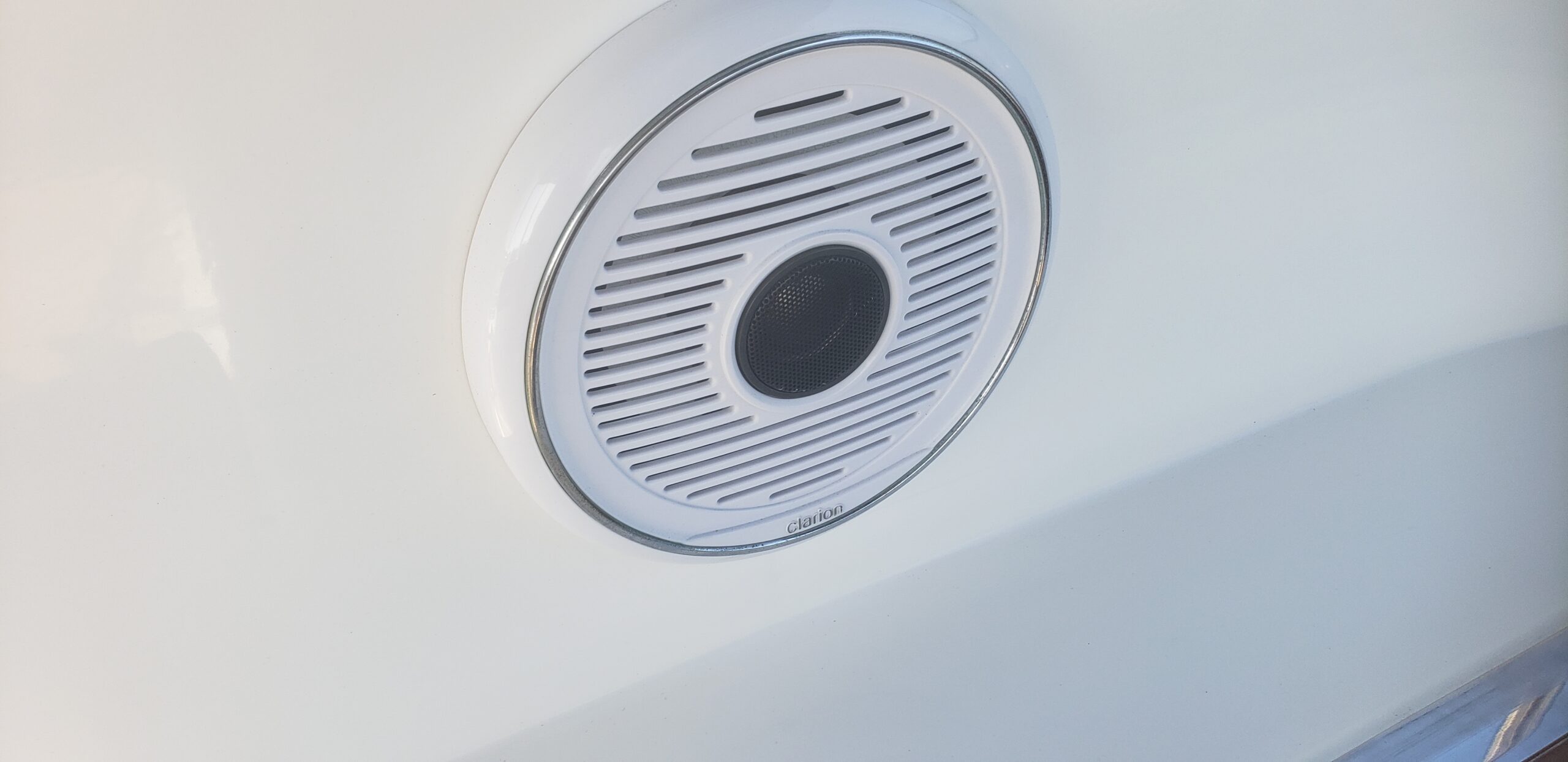

• Clarion coaxial speakers (2)
• 110V and 12V outlets
• Teak decking on flybridge
• Propane locker under starboard portion of settee
• Storage for canvas and more under aft section of settee
• Custom aluminum spar-style electronics mast folds for reduced clearance
• Raymarine 4′ HD open array radar

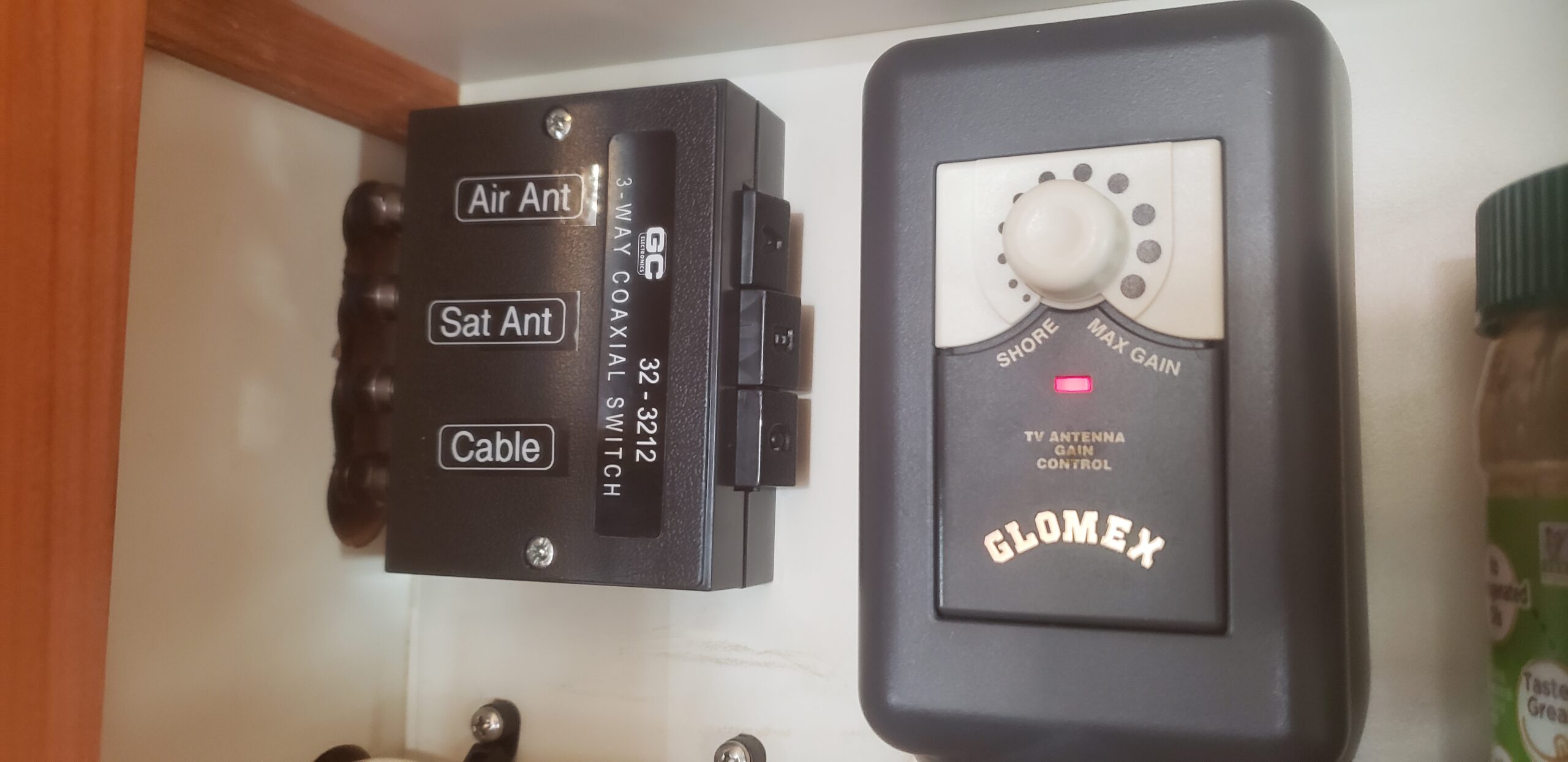

• Glomex over-the-air TV antenna
• Intellian i3 Sat TV system
• Spreader lights on mast

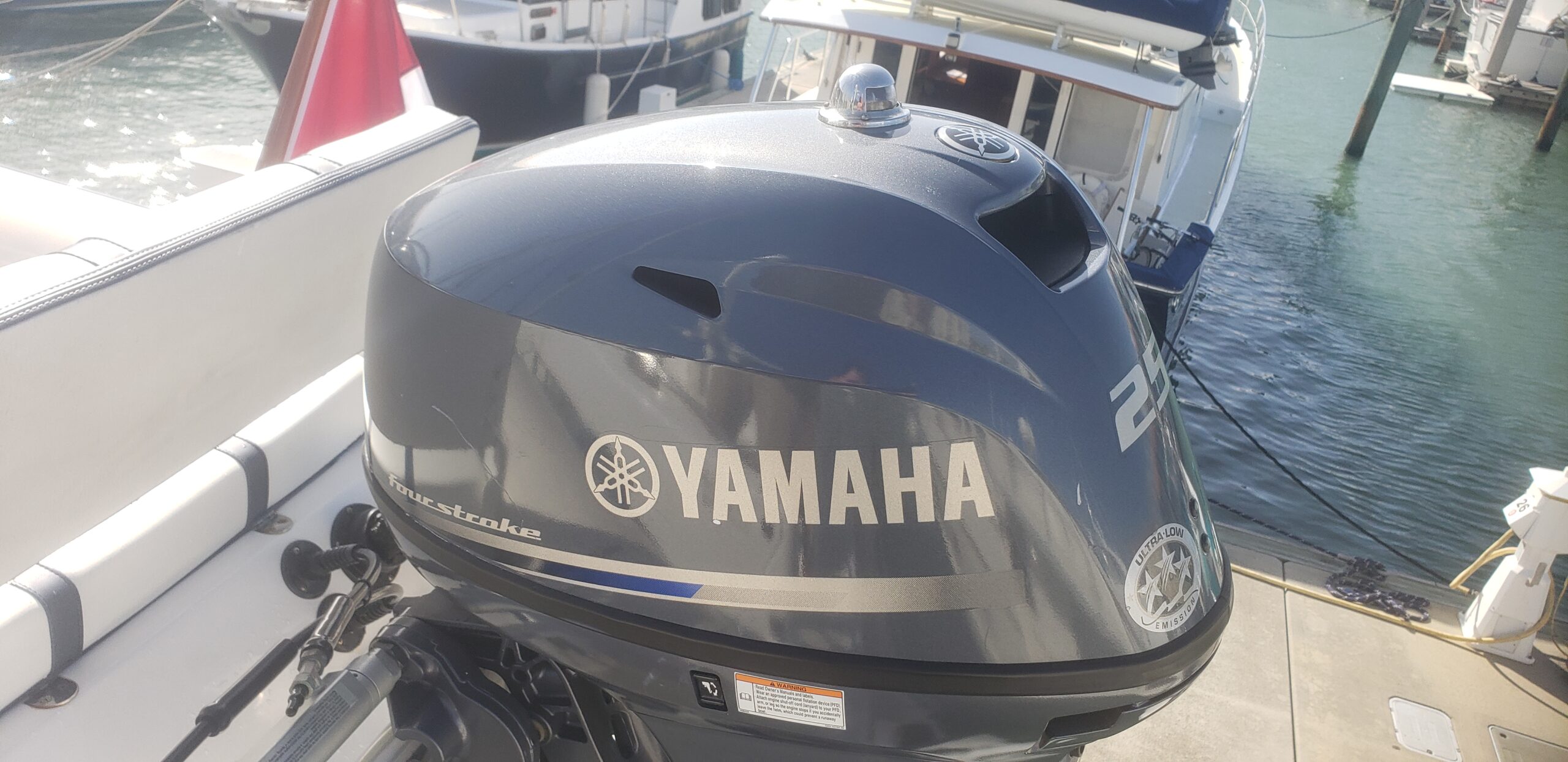

• 11′ Nautica DLX deluxe 4-seat console tender with 25 hp 4-stroke Yamaha outboard
• Steelhead SM1000R 1000 lb. fully hydraulic davit with wired remote

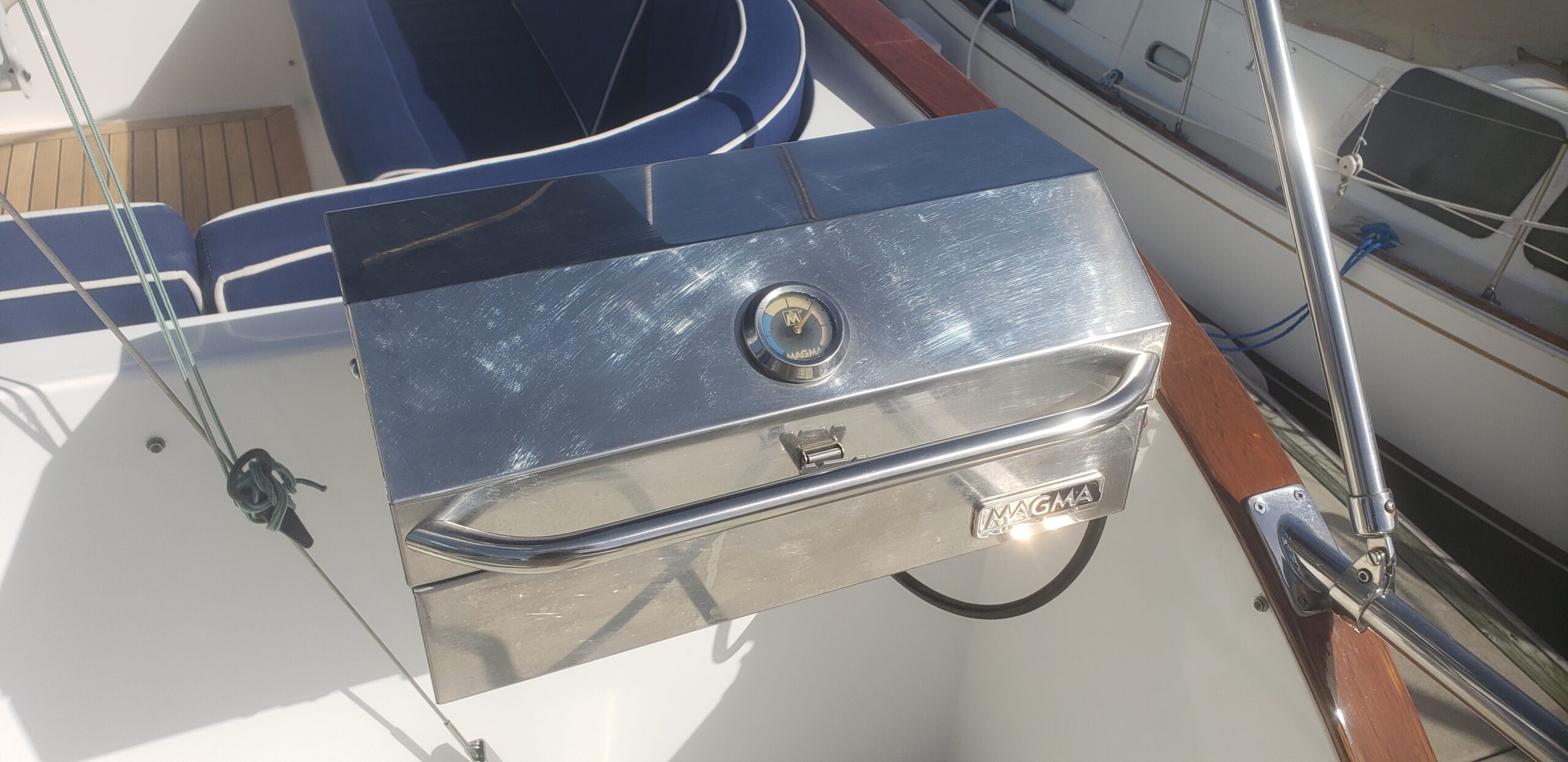

• Magma propane grill mounted on back side of settee

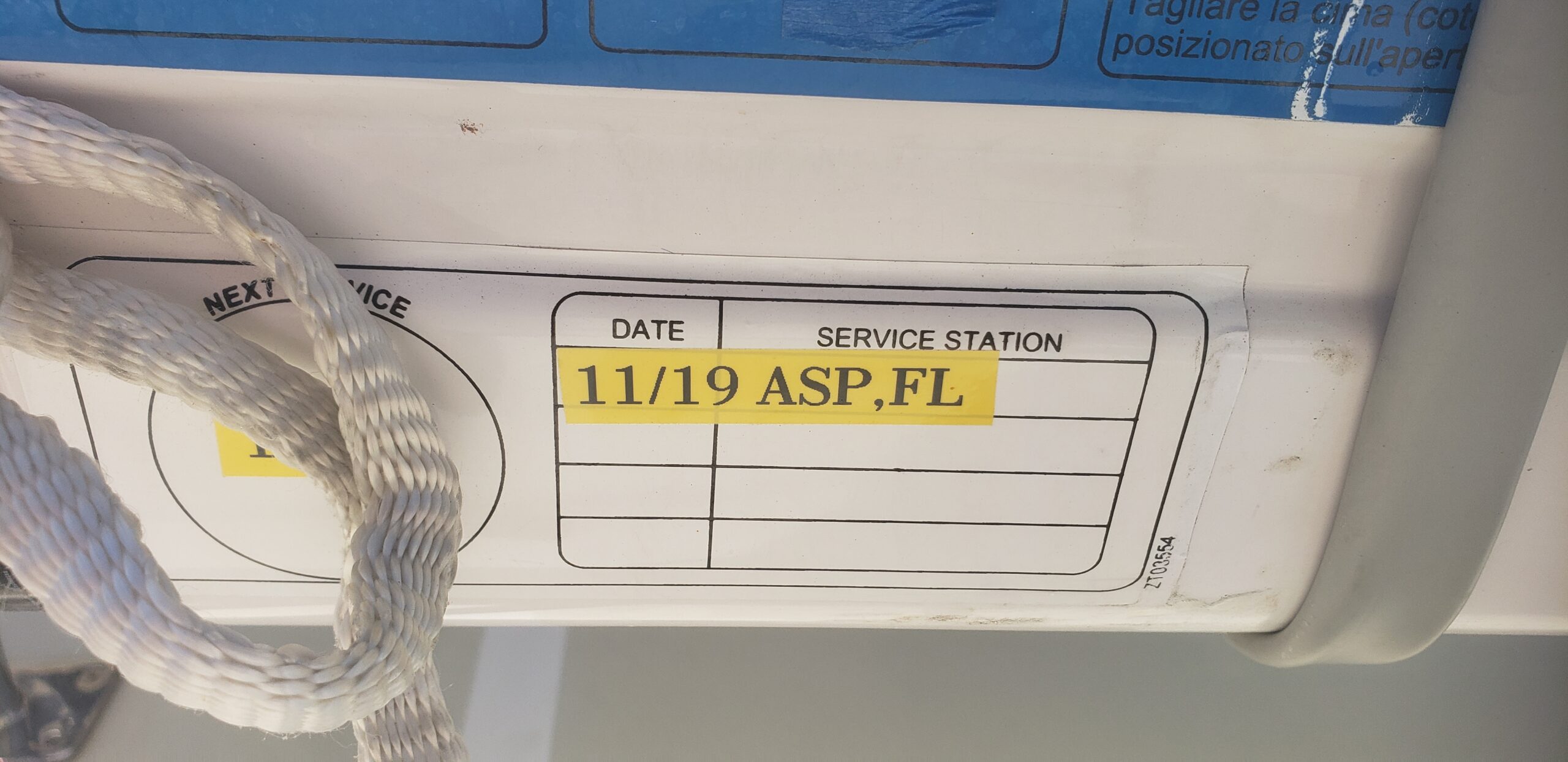

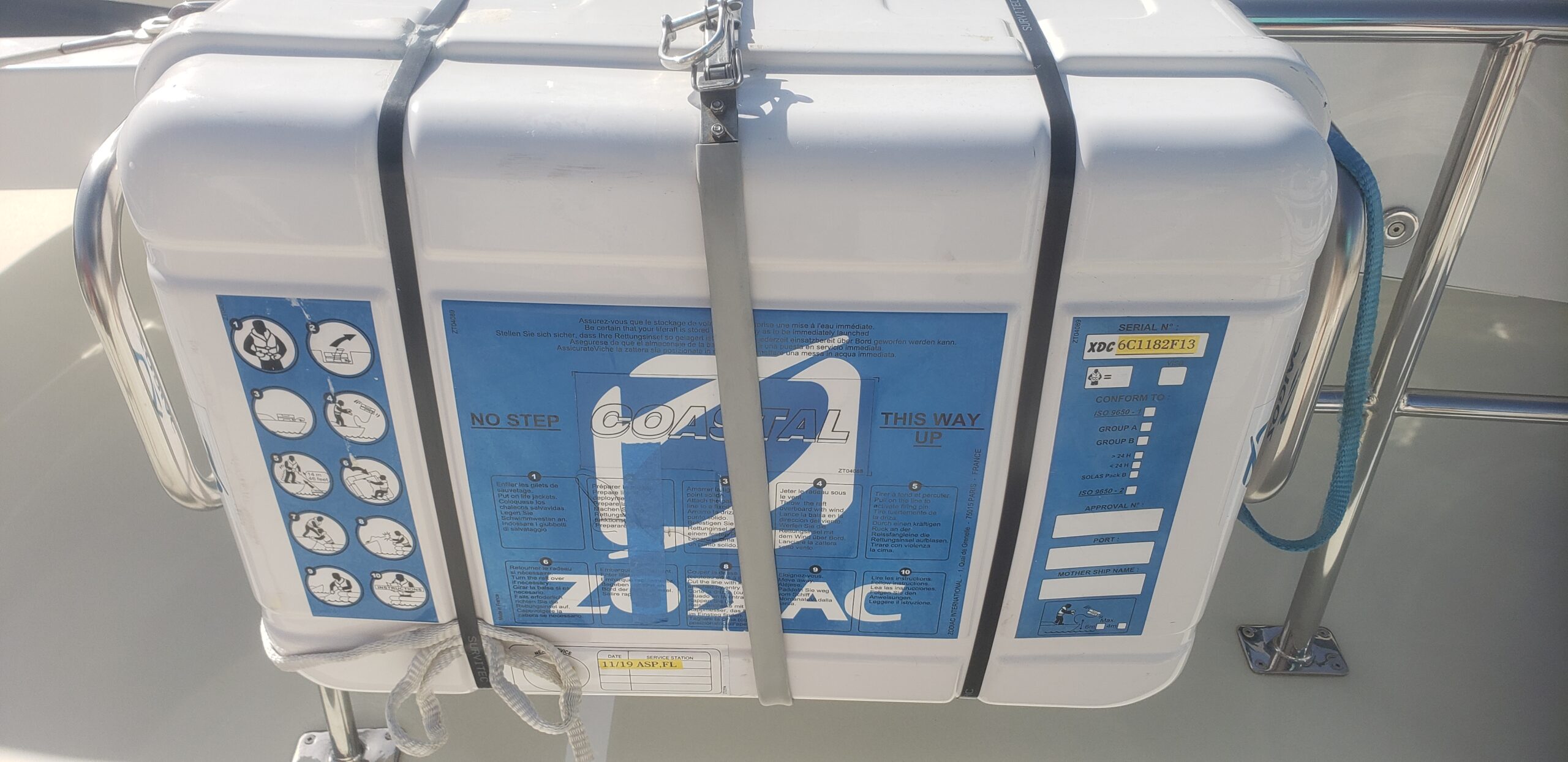

• Zodiac 6-person life raft, certified through 11/22.

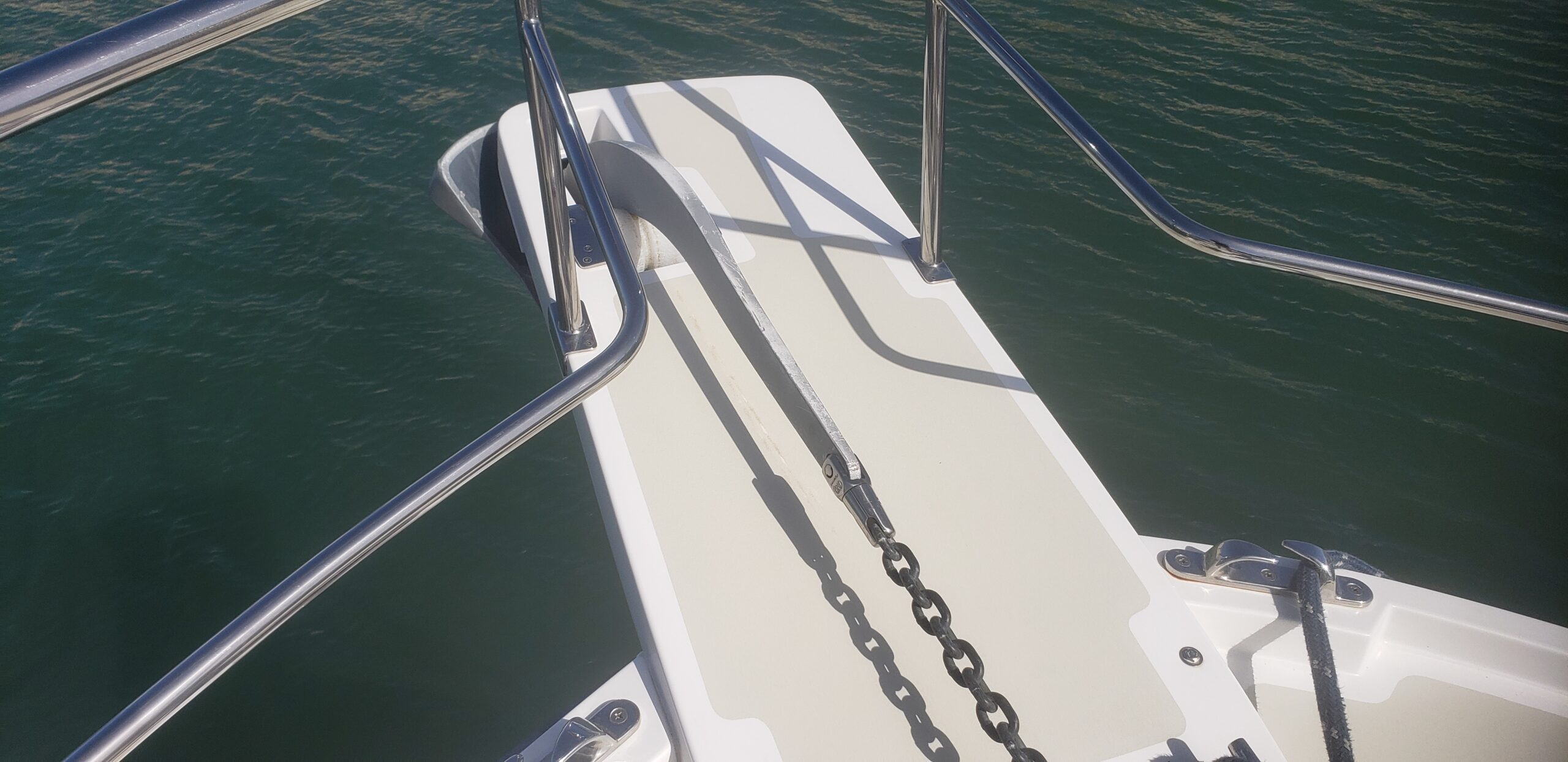

Fore & Side Decks

Access forward is simple with just two easy steps to the wide side decks on both sides and a single step just forward of the pilothouse Dutch doors.  A high rail inspires confidence and a feeling of safety and the crew will find line handling simplified compared to similar vessels with raised bulwarks and fashion plates covering side decks.  The two spring cleats, mounted conveniently on the toe rails, couldn’t be easier for securing lines, while the lack of a Portuguese bridge makes for quick passage forward.  Deck fills for fuel and water can be found on both sides mid ships while the waste pumpout is forward to starboard.  On the port side of the pilothouse forward are secondary 50A shorepower and cable TV connection points.  The Spade plow style anchor can be retrieved easily by her Maxwell Liberty windlass with foot pedals located to port and can be cleaned by either the raw water or fresh water washdowns.  The compartmented anchor locker is accessed by a ship quality Freeman deck hatch and houses the ground tackle, comprised of 50′ of 3/8″ high test galvanized chain and 200′ of 3/4″ line.  A ladder ensures easy access below and there is ample additional space for fenders, lines, and washdown hose.

• Freshwater washdown to port
• Saltwater washdown to starboard
• Maxwell Liberty windlass
• Foot pedals for windlass
• Spade anchor mounted to port allows second anchor (not present) to be mounted to starboard
• Anchor rode with 50′ 3/8″ galvanized H/T chain and 200′ 3/4″ line
• Chain stop

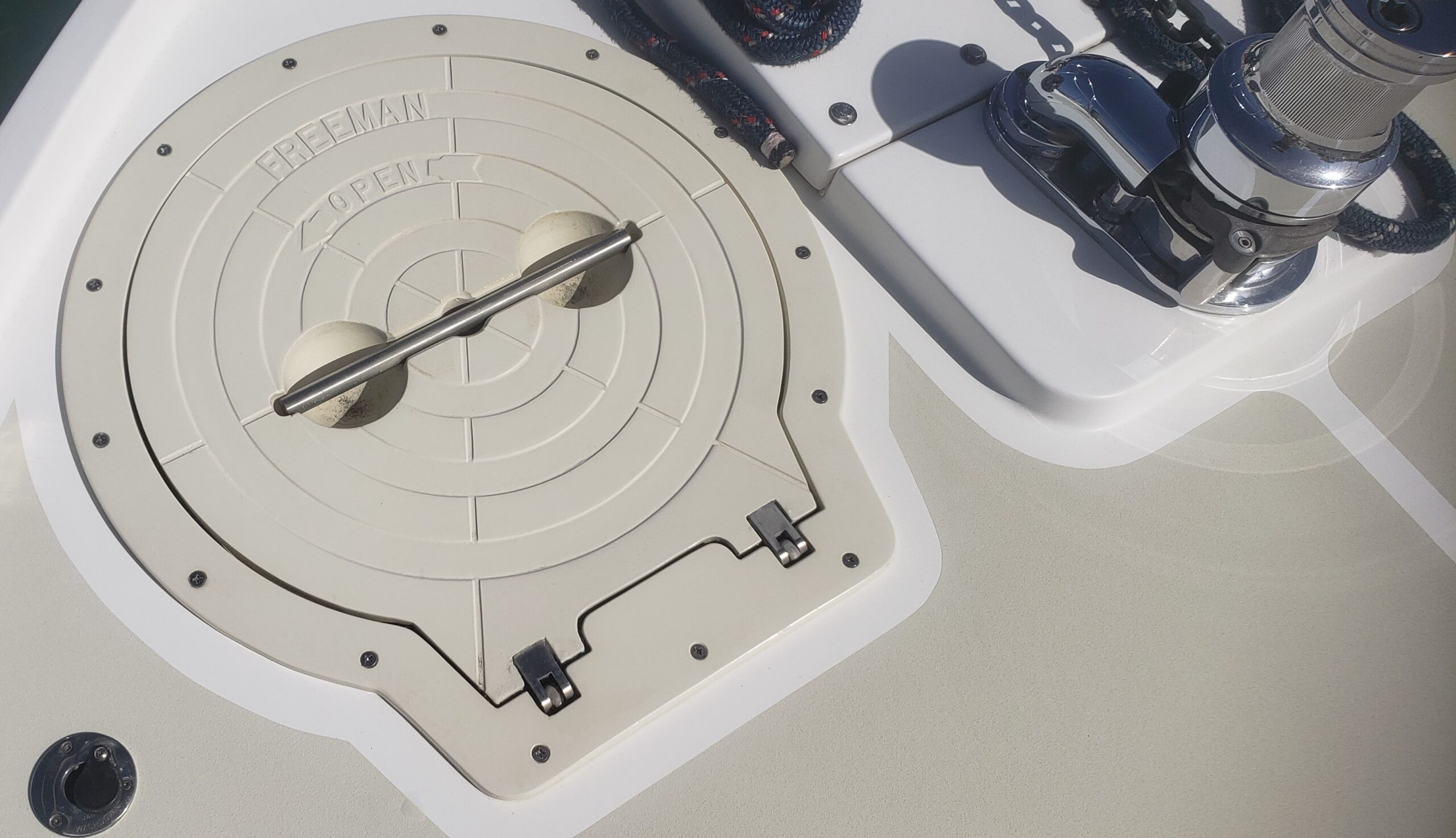

• Freeman deck hatch for access to anchor locker
• Anchor locker is accessed by a sturdy ladder, has a fore and aft divider, and room for storage of lines, fenders, and washdown hose
• Cleats (2) with fair leads
• Burgee mount with custom staff
• Deck fills for fuel (2), water (2), and waste (1)
• Forward connections for 50A shorepower cord and cable TV on port side of pilothouse

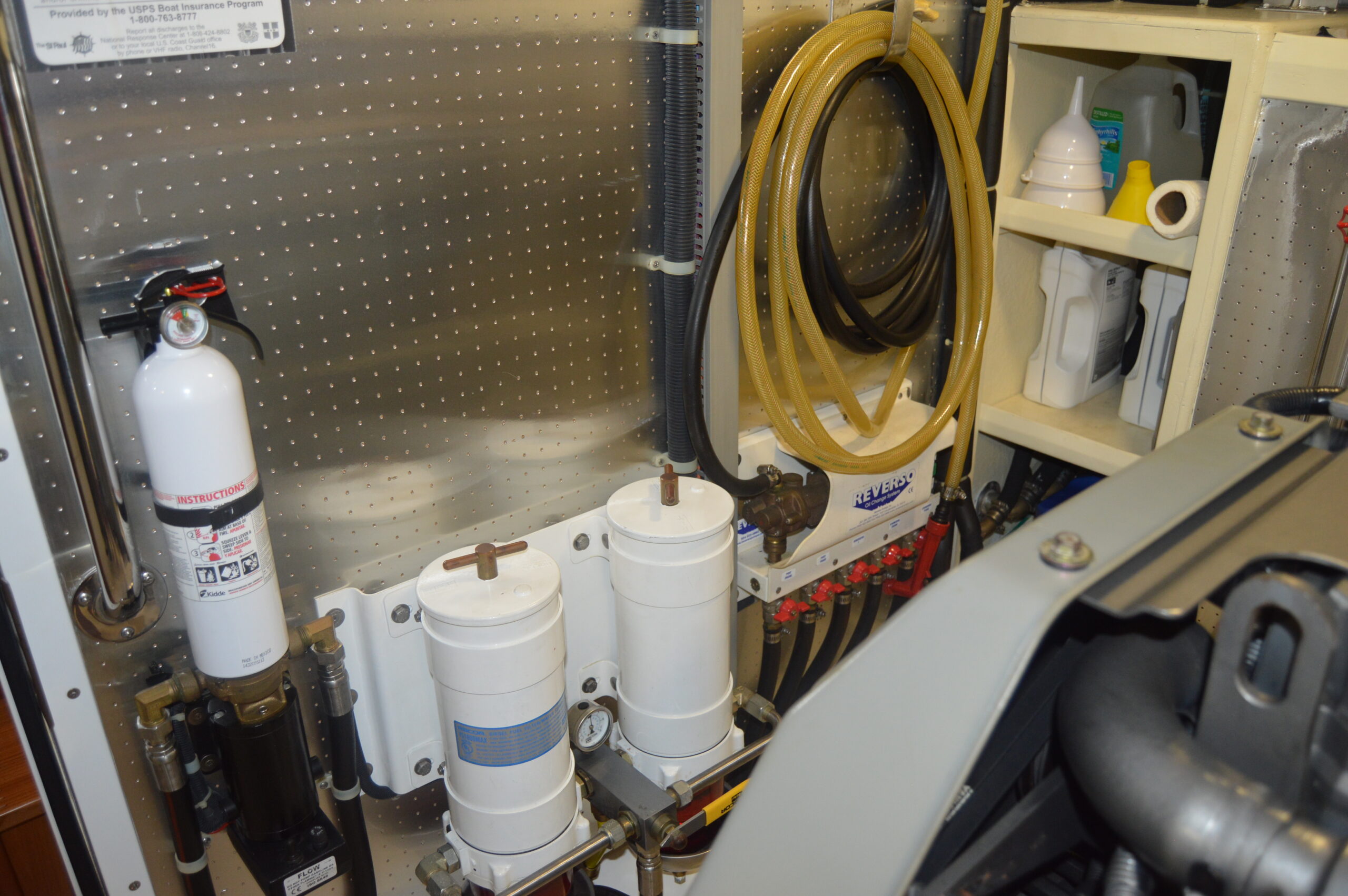

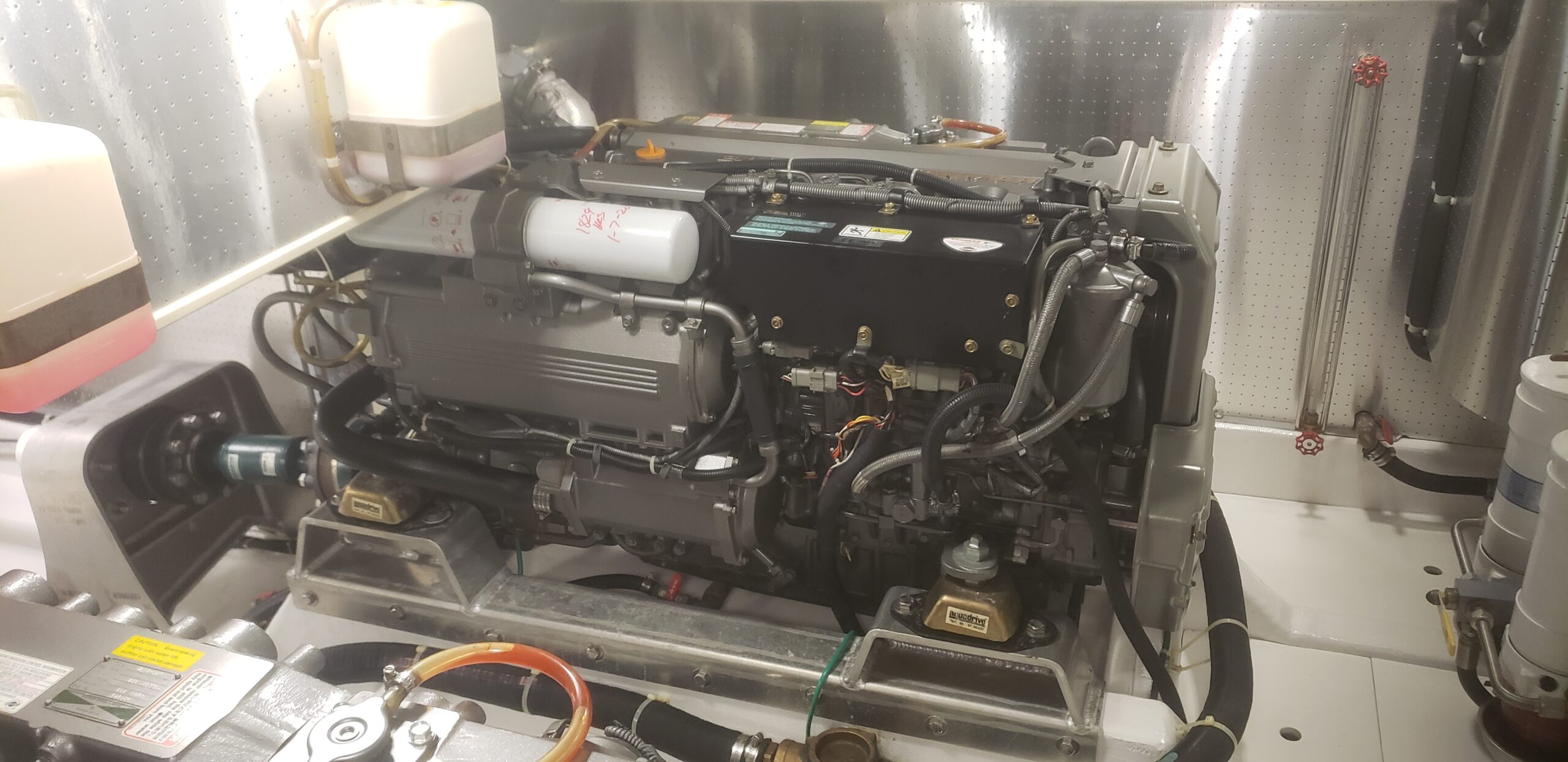

Engine Room

With over 6′ height on the centerline, the exceptionally clean, stand-up, walk-in engine room is accessed through a weathertight aluminum door with observation window.  Her powerful 480 hp electronic Yanmar diesels which can be easily accessed all around.  The engines are fired by dedicated 8D AGM starting batteries and drive through matched Yanmar/Kanzaki transmissions.  Vibration is kept to a minimum with the standard Aqua Drive systems.  The 12kw Northern Lights genset sits on the centerline and has its own starting battery, isolated from the others to ensure she starts every time.  A Reverso fluid changing system is connected to both engines, both transmissions, and the genset to improve serviceability, while a Groco fuel transfer pump makes equalizing the tanks a breeze.  As with the water tanks, diesel fuel levels can be easily assessed with convenient sight tubes.  A Seafire automatic fire suppression system, freshwater washdown, and storage for tools and supplies above and alongside the large water tanks are additional features welcomed by her owners.

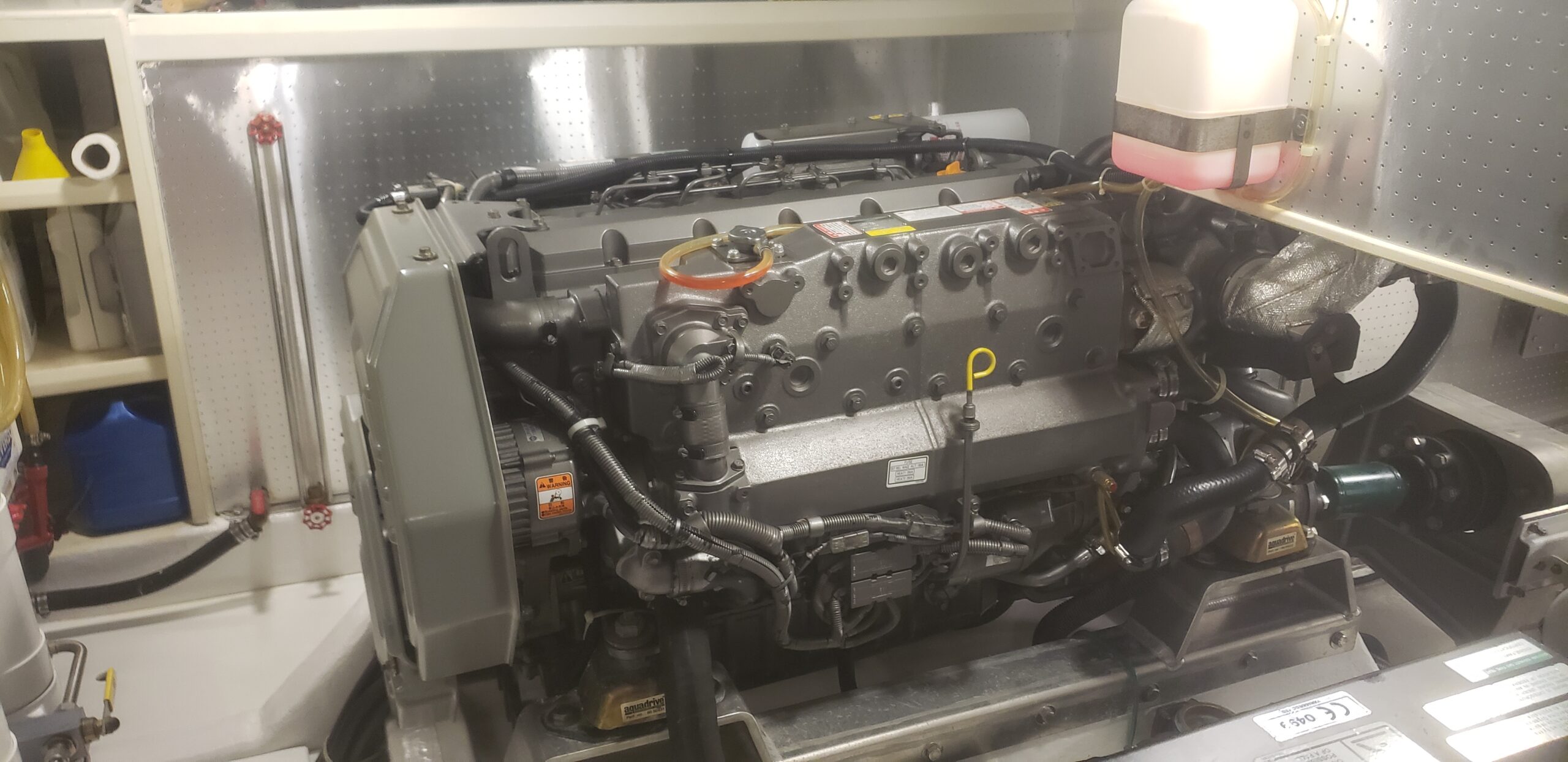

• Twin Yanmar 480 hp diesels, 1956/1953 hours
• All 1000 hour services up to date
• Yanmar/Kanzaki KMH-61A transmissions, 2.43:1

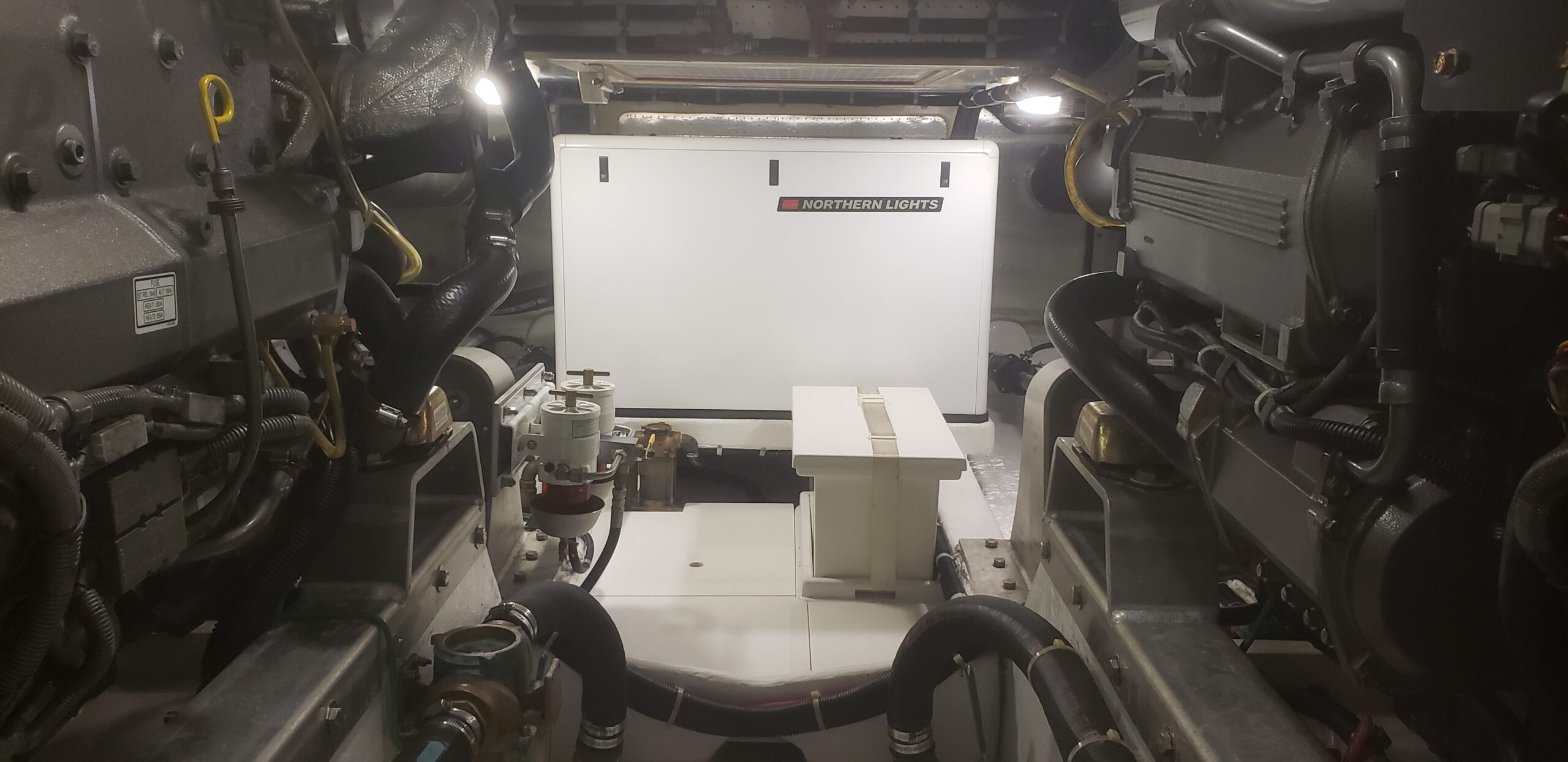

• Northern Lights 12 kw genset w/ soundshield, 1146 hours

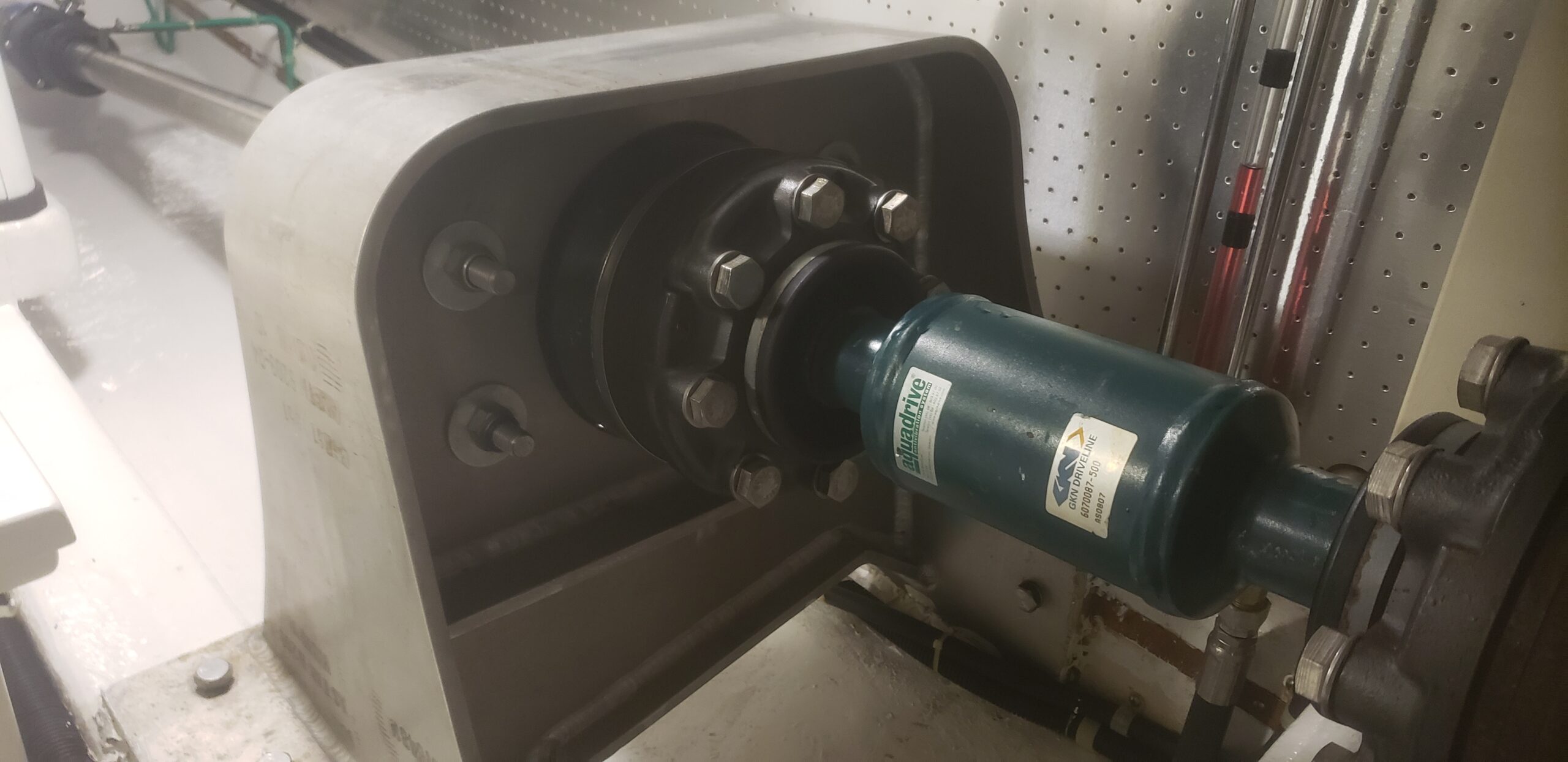

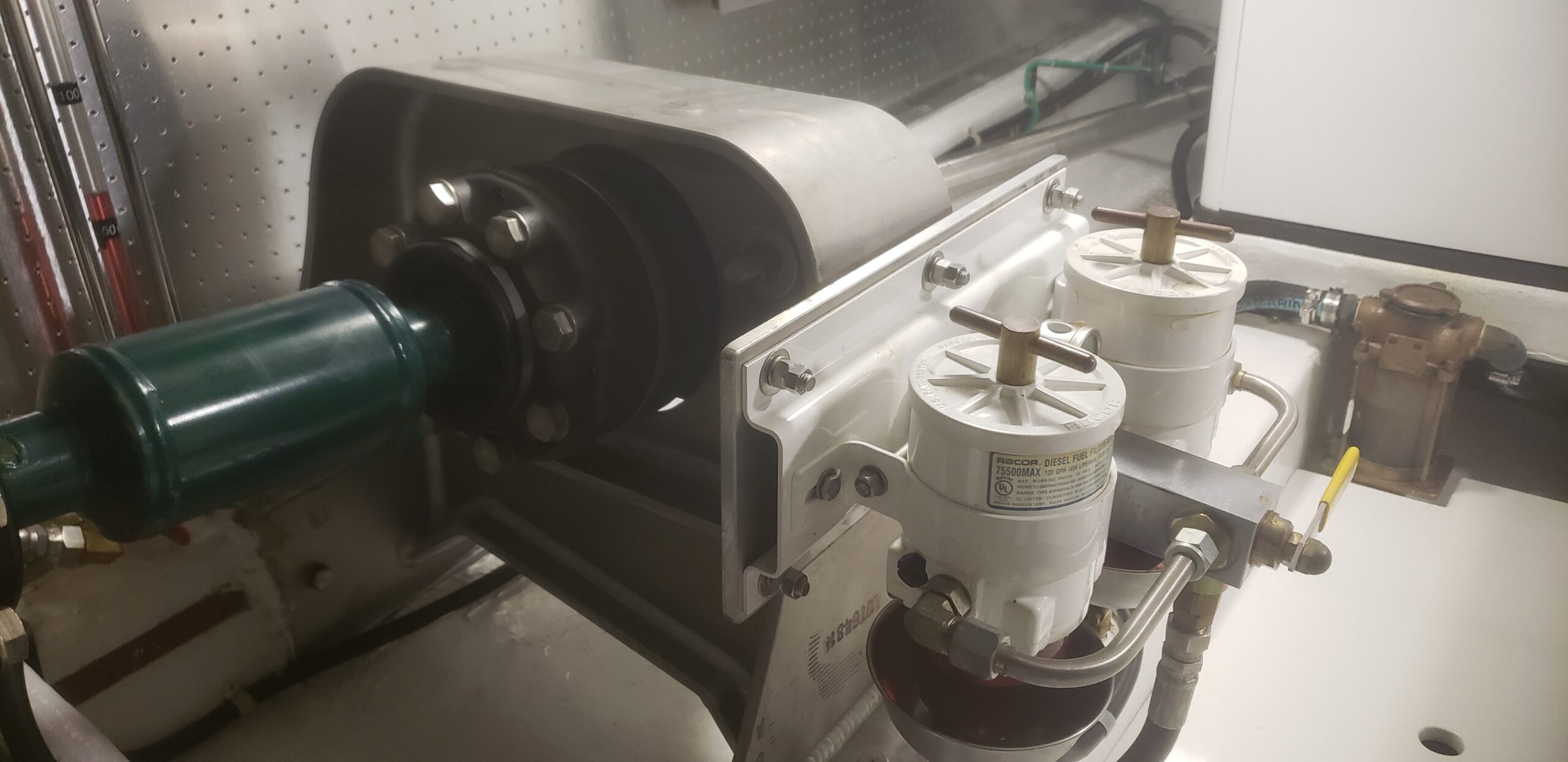

• Aquadrive vibration reduction system includes thrust bearings and softer engine mounts
• Tides dripless shaft seals
• 240V blower to starboard
• 12V engine room blowers (2) to port
• Groco fuel transfer pump
• Freshwater washdown
• Reverso oil changer for engines, gears, and generator
• Mastervolt 12/50-3 50 amp, 3-pole charger for start batteries
• Mastervolt MasterView Easy battery monitoring system
• 8D AGM start batteries for main engines (2)
• 4D AGM genset start battery
• Stainless steel freshwater tanks (2 x 185 gals) with sight glasses
• Aluminum diesel fuel tanks (2 x 350 gals) with sight glasses

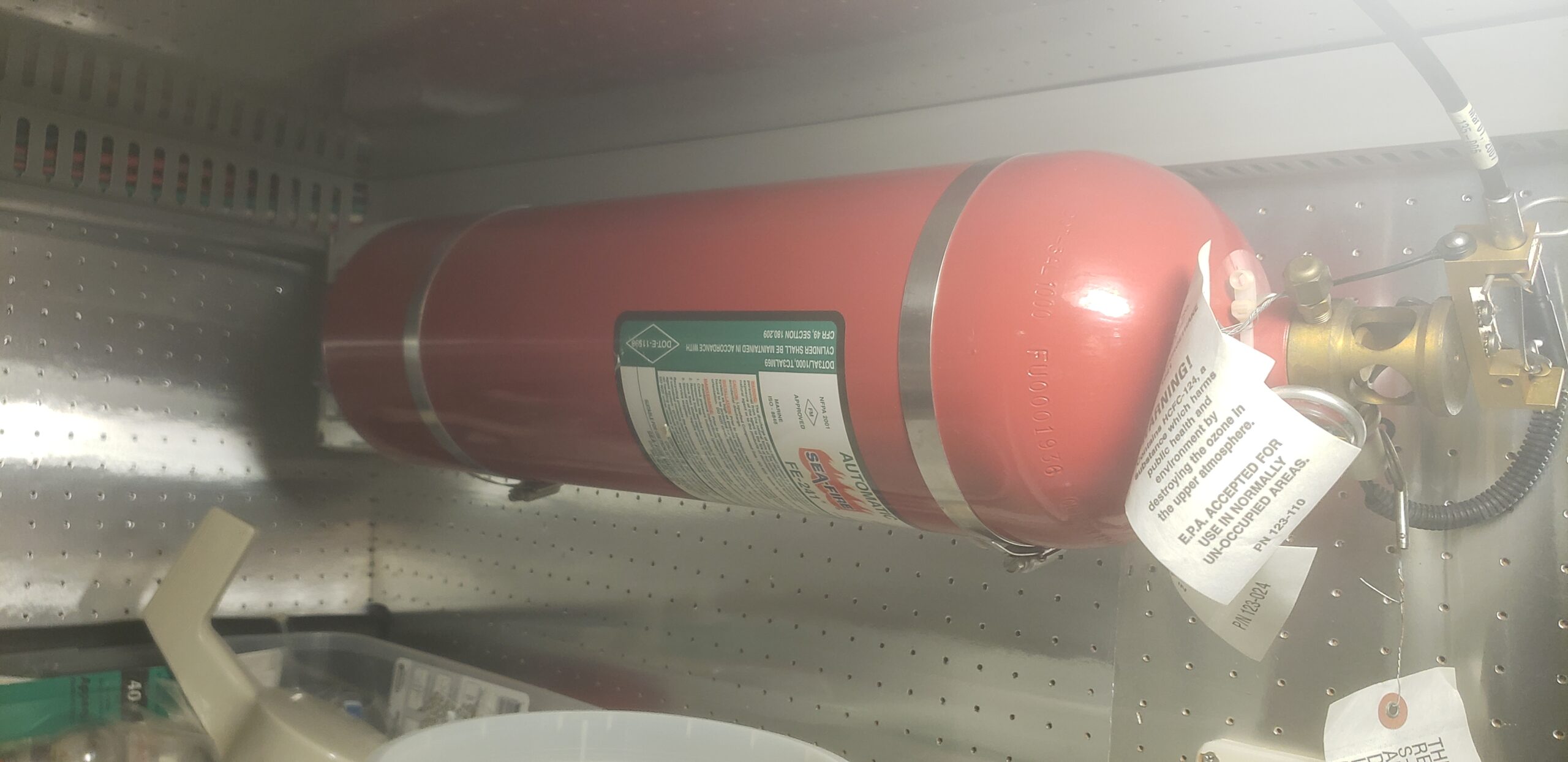

• Seafire FE-241 automatic fire suppression system
• Portable fire extinguisher

Upgrades

• Magma propane BBQ grill w/ spare tank, mounted on flybridge settee
• Folding chairs (4) and table on aft deck
• Zodiac 6-person life raft
• Textilene sunscreens for pilothouse windows

Exclusions
Owner’s personal effects, tools, loose galley and other items, artwork and all items seen aboard or in photos but not specifically stated on this listing sheet shall be considered to be excluded from the sale.

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Additional Specs, Equipment and Information:

Specs
Builder: Krogen Express Yachts
Designer:  James S. Krogen
Hull Warranty:
Hull Shape:  Semi-displacement

Dimensions
LOA:  57′, 6″
Beam:  15′, 11″
LWL:  51′, 4″
Length on Deck:  52′, 6″
Draft:  4′, 0″
Displacement:  44,000 lbs.
Bridge Clearance:  22′ 6″ mast up, 15′ mast down
Headroom:  7′, 4″ in Master cabin
Deadrise:  7 degrees

Engines
Engine 1: Port
Engine Brand:  Yanmar
Engine Model:  6LY3-ETP
Engine Type:  Inline 6 Cylinder Turbo Diesel
Engine/Fuel Type:  Diesel
Engine Hours:  1956
Drive Type:  Direct
Engine Power:  480 hp
Engine 2: Starboard
Engine Brand:  Yanmar
Engine Model:  6LY3-ETP
Engine Type:  Inline 6 Cylinder Turbo Diesel
Engine/Fuel Type:  Diesel
Engine Hours:  1953
Drive Type:  Direct
Engine Power:  480 hp

Cruising Speed:  15-18 knots
Maximum Speed:  20+ knots

Tanks

Fresh Water Tanks:  2 x 185 gals., 370 gals. total, stainless steel
Fuel Tanks:  2 x 300 gals., 600 gals. total, aluminum
Holding Tanks:  1 x 90 gals., fiberglass

Accommodations
Number of single berths:  2
Number of double berths:  3
Number of cabins:  2
Number of heads:  2

Electronics
Navigation center
Radar
Depth Sounder
Autopilot
Wind speed and direction
VHF
Repeater(s)
Chart Plotter
Compass
GPS
CD player
Thermal Camera

Inside Equipment
Washer/Dryer – GE Stacked, Vented 220v
Water Heater – Torrid 20 gal stainless, new
Air conditioning – CruiseAir reverse-cycle (3)
Battery charger – 4000 watt Mastervolt Combi inverter/200a charger, Mastervolt automatic battery charger
Stern thruster – Side Power
Bow thruster – Side Power
Heating – Reverse Cycle
Electric bilge pumps – (4) Rule 2000 gph bilge pump and float
Range/Oven – 3-burner, Force 10 Propane
Refrigerator – GE 14 cu. ft.
Heads – (2) Vacuflush
Microwave Oven – GE SS

Electrical Equipment
Generator – 12kw Northern Lights
Inverter – MasterVolt 4000/12/200 Combi
Shore Power Inlet – (2) 50A
Electrical System – 12VDC

Outside Equipment/Extras

Davit – Steelhead SM1000R
Swimming ladder
Electric windlass – Maxwell Liberty
Admiral Stidd helm chair on centerline
Raymarine 12″ hybrid touch color chartplotter
AIS System integrated with chartplotters
Raymarine autopilot control head
Raymarine Multifunction display (2)
Ritchie compass
Raymarine VHF
Yanmar MFD engine interface (2)
Sidepower bow and stern thrusters joystick controls
Lenco trim tab controls
Maxwell Liberty windlass control
Fusion stereo with 2 zones
Clarion speakers (2)
Teak decking on flybridge
L-settee cushions with Sunbrella
Magna Propane Grill

Covers

Extensive canvas package includes Sunbrella bimini and covers for the full flybridge, helm console, helm chair, grill, tender, and caprail in addition to inside mounted Textilene screens for the pilothouse.

Joy IV is an immaculately maintained, one-owner 2008 Krogen Express 52′ wearing elegant Tan hullsides w/ complementary Royal Blue canvas.  With under 2000 hours, her twin 480 hp Yanmar diesels are barely broken in and ready to provide her captain with mid to upper teen high cruise capabilities or efficient trawler-like cruise speeds between 8 and 9.5 knots.  Powerful Side Power bow and stern thrusters make close quarters handling a breeze.  Her complementary interior appointments, in various shades of Blue, include fabulous Stressless recliners in the salon and custom rugs throughout.  With a spacious, easy to board cockpit, French doors into the salon, galley up layout, plenty of storage, bright windows, and surprising headroom, her legendary Krogen livability is obvious everywhere.  Choose from two well equipped helms and enjoy a walk-in, full stand-up engine room.  This distinctive pilothouse motoryacht will carry you in style to the destinations of your dreams.  Call Bob Loudon today at 404.786.4514 to schedule a personal showing.

Hull Design

Designed by James Krogen, the KE52 combines classic, timeless style with exceptional seakeeping and efficiency.  Her plumb stem, raised bow, and broad beam forward allow her to slice through the waves with ease while providing surprising space in her accommodations.  Her low profile allows her to get under bridges as low as 15′ and with a draft of just 4′, she’ll take you places most 50 footers won’t.  Her semi-displacement hull delivers trawler-like efficiency at displacement speeds with true cruise capabilities in the mid-to-upper teens.  And her generous keel provides stability and protection for her twin 26×25 propellers.

• Semi-displacement hull allows efficient operation at trawler speeds along with mid-to-upper teen cruise speeds
• Plumb stem provides for a long waterline and exceptional volume below decks
• Lengthy, sturdy keel protects the props and adds stability
• 26 x 25 bronze 4-blade props
• 4′ water draft
• Hard height of less than 15′

Krogen Livability

Boarding a Krogen Express couldn’t be easier with a large transom door and wide boarding gates on either side of the spacious, covered cockpit.  Ample storage for lines, fenders, cleaning supplies, and more is provided by the cavernous lazarette below.  Entering the salon through double, watertight aluminum doors, her owners are treated to an inviting cherry wood interior. Along with her sumptuous joinery, old world craftsmanship is obvious with the quality of her appointments and overall fit and finish.  Legendary Krogen livability is evidenced by the large side windows and generous headroom along with the integral galley-up design.

• Large covered aft deck with three full depth boarding gates
• Cavernous lazarette provides ample storage
• Galley up layout
• Double watertight doors
• Large opening windows and port lights with screens
• Surprising headroom stem to stern
• Thoughtful, abundant storage throughout

Aft Deck

The covered aft deck is accessed by wide, full-depth boarding gates on both sides and in the transom.  4 chairs and a table provide for comfortable entertaining.  Steps on either side allow for easy access to the side decks.  Hawse pipes allow for line handling both aft and to the sides.  A Scandvik shower in the transom provides hot and cold water for washing down.  Located in the forward bulkhead to starboard are the 75′ Cablemaster shorepower cord, dockside water and cable TV inlets, freshwater outlet, and 110V receptacle.  Accessed through the generous boarding gate, the fiberglass swim platform allows aft access and can be boarded from the folding ladder beneath.  The spacious lazarette is accessed through a hatch in the teak sole on the centerline.

• Spacious covered cockpit with teak decking
• Generous full depth boarding gates on both sides along with transom door
• 4 chairs and cocktail table
• Scandvik hot/cold shower in transom
• 75′ Cablemaster 50A shorepower cord
• City water inlet
• Freshwater outlet
• Cable TV jack
• 110V receptacle
• Stern camera
• Folding ladder beneath swim platform
• Access port for emergency tiller

Lazarette

Beneath the cockpit sole, accessed through a hatch, is a surprisingly spacious lazarette.  In addition to the stern thruster, steering gear, and davit motor/pump assembly, there is abundant storage available for lines, fenders, cleaning supplies, boat hook, folding bikes, emergency tiller, secondary anchor, and more.

• 12V, 8 hp Sidepower stern thruster
• 2000 gph Rule bilge pump
• Convenient storage shelf forward
• Storage space is segmented with the sturdy stringer system
• Ladder for ease of ingress and egress
• Rudder table supporting steering gear
• Hynautic oil reservoir for hydraulic steering
• Motor/pump assembly for Steelhead davit forward to port

Salon

Located to starboard, the comfortable L-shaped settee, covered in subtle-striped blue fabric, has storage beneath and a nice end table forward.  The cherrywood hi-lo table has leaves that fold out for expanded seating capacity and can be moved outside for dining al fresco.  To port are a pair of comfortable Stressless reclining chairs.  Silhouette shades provide privacy and protection from the sun while custom end panels and tie backs add style.  Inviting Stressless recliners to port and an L-settee to starboard are perfectly situated for enjoying the built-in Samsung LCD TV and Bose surround sound home theater system.  To port is generous additional underdeck storage and a built-in bookcase featuring fiddled shelves and still more lockers.

• Double weather tight aluminum doors
• Port side bookcase with storage beneath
• Storage and side deck access below the L-settee
• Below side deck storage to port
• Ekornes Stressless reclining chairs and ottomans (2)
• L-settee in blue Ultrasuede
• Wall sconces to port (2)
• Silhouette shades supported by cherrywood cornices
• Decorative drapery panels with tie backs
• CruiseAir zone control (SMXir) for two air handlers
• Cherry hi-lo table
• Bose 5+1 surround sound home theater system
• Samsung LCD TV

Salon Bilge Compartment/Battery Room

Below the salon you’ll find the house battery bank (3 Mastervolt AGM 8Ds at 675 Ah total, a dedicated stern thruster bank, Cable Master drum (75′ 50 A cord), Mastervolt Combi 4000 Watt inverter / 200 Amp charger, and Sounddown mufflers.  There’s also a 2000 gph Rule bilge pump and the water lift muffler for the Northern Lights genset.  Access is simple with both a day hatch and larger service hatch in support of major mechanical work.

• House battery bank – Three Mastervolt 8D AGM at 225 Ah each, 675 Ah total
• Dedicated stern thruster bank – Two Deka Group 31 AGM at 100 Ah each, 200 Ah total
• Mastervolt 12/4000/200 Combi inverter charger – 4000 watt inverter, 200 amp charger
• 75′ 50 amp Cablemaster shorepower cord in storage drum with wirelesss remote control
• 2000 gph Rule automatic bilge pump
• Sounddown main engine mufflers
• Water lift muffler for 12 kw Northern Lights generator

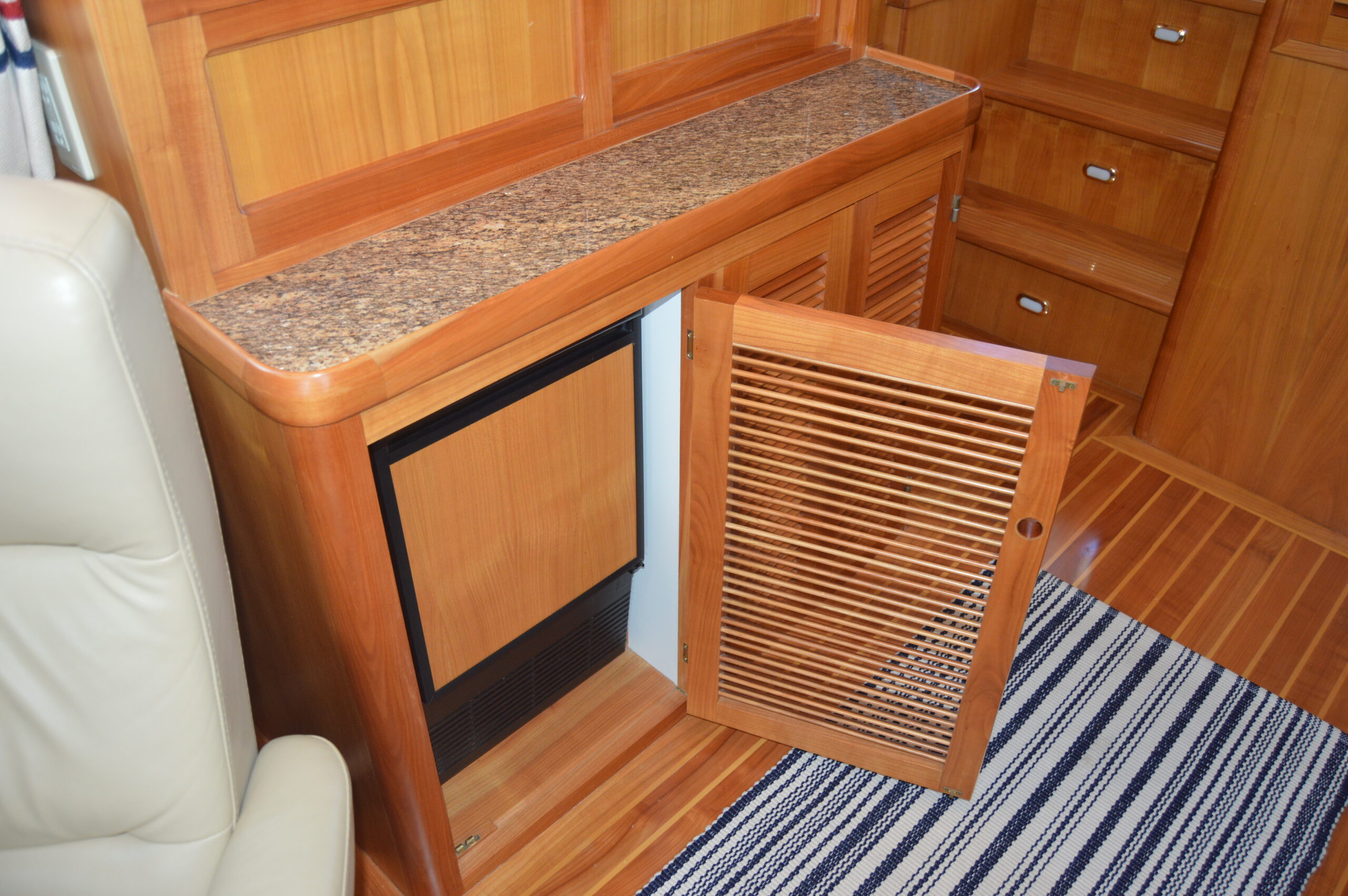

Galley

The gourmet galley is located up where her chef can always be part of the activity.  She’s well equipped for meal preparation with a 3-burner, Force 10 propane range, 14 cu. ft. GE refrigerator/freezer, GE microwave oven, and deep Elkay sink with pullout sprayer faucet. Elegant granite counter tops are easy to maintain and will complement any decor, while the raised section is ideal for serving crew and guests. Traditional round port lights provides ventilation while abundant storage ensures a good home can be found for all provisions. Beneath the starboard side bookcase, the U-line ice maker frees up space in the ice box and ensures drinks will be well chilled.

• Galley up layout
• Force 10, 3-burner propane range
• 14 cu. ft. GE refrigerator
• GE microwave oven, stainless steel
• Elkay stainless steel sink
• Pullout sprayer faucet
• Granite countertops
• Trident propane control
• Manship round port light (2)
• U-line ice maker
• Fire extinguisher
• Fireboy carbon monoxide detector
• Electrical panel – 240VAC, 120VAC, 12V, Inverter section
• Mastervolt inverter/charger remote panel
• Floor hatch for secondary engine room access

Pilothouse Helm

The centerline helm console in the raised pilothouse is equipped with a full complement of Raymarine navigational electronics, all within easy reach of the fine Buff Ultraleather Stidd helm chair.  Precise Teleflex Morse controls allow smooth control of the twin 480hp Yanmar 6-cylinder diesels while her rudders are guided by a custom, handcrafted cherry helm wheel.  Electronics include a pair of 12″ Raymarine E120W Hybridtouch chartplotters, a matched Raymarine autopilot, a dedicated depth display, and a Standard Horizon VHF radio. Two large chart drawers and a wide, lighted table to starboard allow for easy storage and use of paper charts.  Side Power bow and stern thrusters assure confident close quarters handling.  Controls for the dual trumpet Kahlenberg horns, intermittent Exalto wiper/washer system, Maxwell windlass, and Lenco electric trim tabs are all close at hand.

• Centerline helm with Buff Ultraleather Stidd chair
• Custom cherrywood helm wheel
• Raymarine E120W Hybridtouch color radar chartplotters (2)
• Raymarine autopilot with wireless remote
• Raymarine MFD dedicated depth display for redundancy
• Standard Horizon VHF radio
• Yanmar i560e digital engine displays (2)
• Sidepower joystick controls for bow and stern thrusters with wireless remote
• Northern Lights 12kw genset control panel (1146 hrs.)
• Danforth compass on centerline
• Kahlenberg M-511A whistle control for dual trumpet horns
• Lenco electric trim tab control (rocker switches and LED indicators)
• Exalto intermittent wiper/washer system
• Maxwell windlass control
• CruiseAir SMXir zone control
• Overhead lighting dims and is switchable to red for nighttime operation
• Fusion stereo system
• JVC speakers overhead (2)
• Stair access to flybridge (aft) and accommodations (forward)
• Manship overhead hatch with screen
• V-Cool window film for UV and heat reduction
• Northern Lights genset control panel
• Bilge pump control panel for bilge pumps (4)
• Chart drawers and chart table with light to starboard
• Small drawers (2) and table to port

Pilothouse Settee

The pilothouse watch berth is elevated for optimal forward visibility, long enough for naps underway, and converts to a 3/4 double berth to accommodate overnight guests.  A table provides a convenient work surface and the wall mounted lamp to starboard makes this an ideal location to retire with a good book.  Above the settee, a color coordinated half hull model showcases her elegant lines and makes for interesting conversation. Beneath the settee are several small lockers for equipment storage.  High quality, weathertight Dutch doors lead directly to the wide side decks while stairs to the port side of the settee provide easy access to the flybridge.  Textilene screens for all pilothouse windows provide sun protection.

• Proper watch berth is elevated for visibility and long enough for sleeping
• Half hull model is color coordinated with actual hull
• Reading lights (2) to port and starboard
• Textilene screens for all pilothouse windows
• Lockers beneath settee and first flybridge step
• Weathertight Dutch doors (2) provide access to both side decks
• Inside access to flybridge

Guest Stateroom/Office

An L-settee that easily pulls out to a double berth highlights the flexible nature of the guest stateroom, while a Pullman berth adds additional sleeping capacity.  Located inboard is a large desk with drawers.  Aft and outboard is a large hanging locker while beneath the settee are two additional large drawers.  Two port lights and a screened hatch overhead make the GSR feel open and airy while 3 wall mounted lamps provide additional lighting for reading.  The bilge area below, or pump room, is home to the 3 CruiseAir reverse-cycle air conditioners, the water heater, fresh water pump, and shower drain system. A full head is located across the companionway.

• Flexible office/stateroom layout
• Desk with drawers (4)
• 3 reading lamps
• Hanging locker
• Large drawers below settee
• Screened overhead hatch and two port lights
• GE stacked and vented washer/dryer in adjacent companionway

GSR Bilge/Pump Room

Beneath the guest stateroom, separated from engine room heat, is a dedicated space for 3 CruiseAir AC units, the freshwater pressure system, water heater, shower drain system, and the vacuum generator for the guest head.

• 3 CruiseAir reverse cycle AC systems
• 12 volt Headhunter X-Caliber freshwater pump
• 20 gal. Torrid stainless water heater w/ heat exchanger
• Inline pumps for showers (2)
• Vacuum generator for guest head toilet
• 2000 gph Rule bilge pump
• Depth transducers (2)

Guest/Day Head

Located to port abaft the guest stateroom is the guest head with separate stall shower.  Shower has molded in seat and bi-fold glass doors.

• Vacuflush toilet
• Granite counter top with fiddle and molded in sink
• Hansgrohe sink faucet and shower fixture
• Storage outboard of sink with drawers and additional space beneath
• Molded-in fiberglass shower stall w/seat
• Manship port light
• Towel racks (3)
• Mirror over sink
• Lighting above mirror and in shower overhead
• AC vent in overhead

Master Stateroom

A true queen island berth is the centerpiece of the master stateroom. With over 7′ of headroom and light provided by 4 ports and a large screened deck hatch, the MSR feels surprisingly generous for a motoryacht this size. Hanging lockers on both sides, 6 deep drawers under the berth, and a dresser with drawers and shelved storage ensure her owners have ample room for their belongings.  A look beneath the berth reveals cavernous storage and provides access to the dedicated battery bank for the bow thruster and windlass. The ensuite head features a molded fiberglass shower stall with a seat, Vacuflush head, and granite countertops.

• Centerline standard queen island berth
• Over 7′ headroom
• Screened overhead hatch
• 4 Manship portlights with screens
• 2 reading lamps
• 6 deep drawers beneath berth
• Samsung 19″ TV
• Ensuite full head has molded shower with seat
• Large dresser with drawers and shelved storage
• Hanging lockers (2) on both port and starboard
• Additional small lockers and cubbies at hullsides
• CruiseAir SMXir zone control
• Storage beneath berth and access to bow thruster is made easier with power hatch lift
• Dedicated battery bank for windlass and bow thruster (2 AGM 8Ds)

Master Head (ensuite)

The ensuite master head features a spacious stand up shower with molded in seat and bi-fold door, Vacuflush head, and fiddled granite countertop.

• Vacuflush toilet
• Granite counter top with fiddle and molded in sink
• Hansgrohe sink faucet and shower fixture
• Storage forward of sink with additional space beneath
• Molded-in fiberglass shower stall w/seat
• Manship port light in shower
• Towel racks (3)
• Mirror over sink
• Lighting above mirror and in shower overhead
• AC supply in overhead

Flybridge and Boat Deck

While her pilothouse is fully capable, most Krogen Express owners prefer operating their vessels up top where they can better experience her cruising capabilities.  Conversations are easy as little engine noise makes its way up here, leaving only the soothing sounds of sea breezes and ocean waves with which to compete.  A frameless venturi windscreen deflects air above the captain sitting in the comfortable, raised centerline Stidd helm chair.  Matching Raymarine electronics provides full navigational support along with the large Ritchie compass.  A Standard Horizon VHF radio provides communications.  Controls for the Sidepower bow and stern thrusters, Lenco electric trim tabs, and Maxwell windlass are close at hand.  The Raymarine 4′ HD open array radar scanner and Intellian i3 satellite TV dome are mounted on an aluminum spar-style mast that can be lowered when needed.  Shaded by a Royal blue Sunbrella bimini top, the L-settee provides ample seating for crew and guests and contains storage beneath for the extensive canvas package as well as a propane locker.  Situated aft of the settee, the open boat deck easily accommodates two folding deck chairs and serves as access to the 11′ Nautica 4-seat luxury console tender. This is the ideal place to enjoy a cup of morning coffee or catch a beautiful evening sunset. The dinghy, with a raised console and seating for 4, is powered by a 25 hp 4-stroke Yamaha outboard and launched with the fully hydraulic Steelhead davit.

• Centerline helm with white Ultraleather Stidd helm chair
• Sunbrella bimini and L-settee cushions
• Sunbrella covers for helm, Stidd chair, and full flybridge
• Raymarine E140W 14″ Hybridtouch color radar chartplotter
• Raymarine MDF dedicated depth display
• Standard Horizon VHF radio
• Raymarine autopilot control head
• Ritchie compass on centerline
• Yanmar i560e digital engine displays (2)
• Teleflex Morse Yanmar electronic engine controls
• Lenco electric trim tab rocker switch panel with LED indicators
• Maxwell Liberty windlass control
• ABT-Trac stabilizer remote panel
• Fusion stereo wired remote
• Clarion coaxial speakers (2)
• 110V and 12V outlets
• Teak decking on flybridge
• Propane locker under starboard portion of settee
• Storage for canvas and more under aft section of settee
• Custom aluminum spar-style electronics mast folds for reduced clearance
• Raymarine 4′ HD open array radar
• Glomex over-the-air TV antenna
• Intellian i3 Sat TV system
• Spreader lights on mast
• 11′ Nautica DLX deluxe console tender with 25 hp 4-stroke Yamaha outboard
• Steelhead SM1000R 1000 lb. fully hydraulic davit with wireless remote
• Magma propane grill mounted on back side of settee
• Zodiac 6-person life raft

Fore & Side Decks

Access forward is simple with just two easy steps to the wide side decks on both sides and a single step just forward of the pilothouse Dutch doors.  A high rail inspires confidence and a feeling of safety and the crew will find line handling simplified compared to similar vessels with raised bulwarks and fashion plates covering side decks.  The two spring cleats, mounted conveniently on the toe rails, couldn’t be easier for securing lines, while the lack of a Portuguese bridge makes for quick passage forward.  Deck fills for fuel and water can be found on both sides mid ships while the waste pumpout is forward to starboard.  On the port side of the pilothouse forward are secondary 50A shorepower and cable TV connection points.  The Spade plow style anchor can be retrieved easily by her Maxwell Liberty windlass with foot pedals located to port and can be cleaned by either the raw water or fresh water washdowns.  The compartmented anchor locker is accessed by a ship quality Freeman deck hatch and houses the ground tackle, comprised of 50′ of 3/8″ high test galvanized chain and 200′ of 3/4″ line.  A ladder ensures easy access below and there is ample additional space for fenders, lines, and washdown hose.

• Freshwater washdown to port
• Saltwater washdown to starboard
• Maxwell Liberty windlass
• Foot pedals for windlass
• Spade anchor mounted to port allows second anchor (not present) to be mounted to starboard
• Anchor rode with 50′ 3/8″ galvanized H/T chain and 200′ 3/4″ line
• Chain stop
• Freeman deck hatch for access to anchor locker
• Anchor locker is accessed by a sturdy ladder, has a fore and aft divider, and room for storage of lines, fenders, and washdown hose
• Cleats (2) with fair leads
• Burgee mount with custom staff
• Deck fills for fuel (2), water (2), and waste (1)
• Forward connections for 50A shorepower cord and cable TV on port side of pilothouse

Engine Room

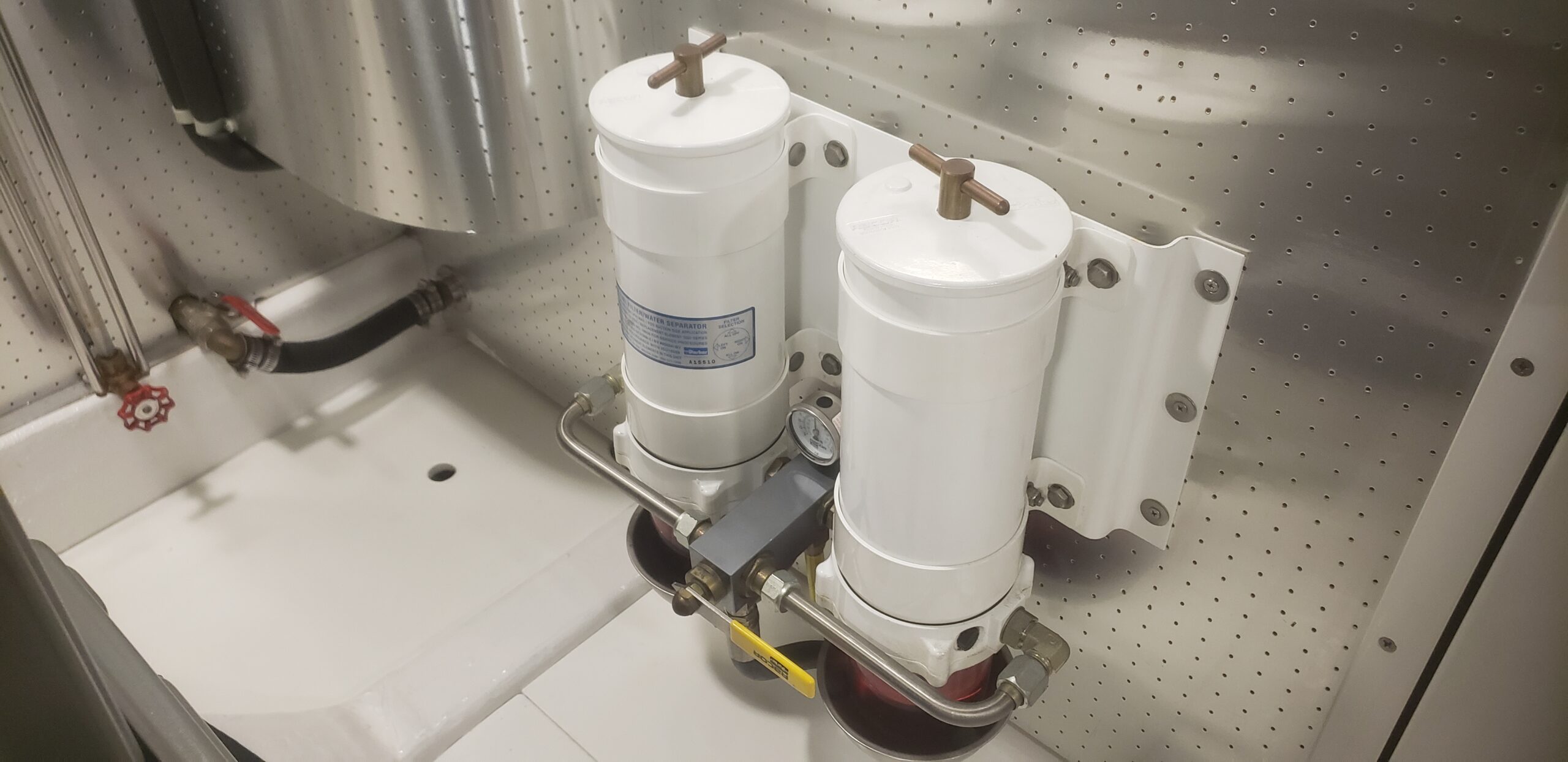

With over 6′ height on the centerline, the exceptionally clean, stand-up, walk-in engine room is accessed through a weathertight aluminum door with observation window.  Her powerful 480 hp electronic Yanmar diesels which can be easily accessed all around.  The engines are fired by dedicated 8D AGM starting batteries and drive through matched Yanmar/Kanzaki transmissions.  Vibration is kept to a minimum with the standard Aqua Drive systems.  The 12kw Northern Lights genset sits on the centerline and has its own starting battery, isolated from the others to ensure she starts every time.  A Reverso fluid changing system is connected to both engines, both transmissions, and the genset to improve serviceability, while a Groco fuel transfer pump makes equalizing the tanks a breeze.  As with the water tanks, diesel fuel levels can be easily assessed with convenient sight tubes.  A Seafire automatic fire suppression system, freshwater washdown, and storage for tools and supplies above and alongside the large water tanks are additional features welcomed by her owners.

• Twin Yanmar 480 hp diesels, 1956/1953 hours
• All 1000 hour services up to date
• Yanmar/Kanzaki KMH-61A transmissions, 2.43:1
• Northern Lights 12 kw genset w/ soundshield, 1146 hours
• Aquadrive vibration reduction system includes thrust bearings and softer engine mounts
• Tides dripless shaft seals
• 240V blower to starboard
• 12V engine room blowers (2) to port
• Groco fuel transfer pump
• Freshwater washdown
• Reverso oil changer for engines, gears, and generator
• Mastervolt 12/50-3 50 amp, 3-pole charger for start batteries
• Mastervolt MasterView Easy battery monitoring system
• 8D AGM start batteries for main engines (2)
• 4D AGM genset start battery
• Stainless steel freshwater tanks (2 x 185 gals) with sight glasses
• Aluminum diesel fuel tanks (2 x 350 gals) with sight glasses
• Seafire FE-241 automatic fire suppression system
• Portable fire extinguisher

Upgrades

• Magma propane BBQ grill w/ spare tank, mounted on flybridge settee
• Folding chairs (4) and table on aft deck
• Zodiac 6-person life raft
• Textilene sunscreens for pilothouse windows

Exclusions
Owner’s personal effects, tools, loose galley and other items, artwork and all items seen aboard or in photos but not specifically stated on this listing sheet shall be considered to be excluded from the sale.

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Additional Specs, Equipment and Information:

Specs
Builder: Krogen Express Yachts
Designer:  James S. Krogen
Hull Warranty:
Hull Shape:  Semi-displacement

Dimensions
LOA:  57′, 6″
Beam:  15′, 11″
LWL:  51′, 4″
Length on Deck:  52′, 6″
Draft:  4′, 0″
Displacement:  44,000 lbs.
Bridge Clearance:  22′ 6″ mast up, 15′ mast down
Headroom:  7′, 4″ in Master cabin
Deadrise:  7 degrees

Engines
Engine 1: Port
Engine Brand:  Yanmar
Engine Model:  6LY3-ETP
Engine Type:  Inline 6 Cylinder Turbo Diesel
Engine/Fuel Type:  Diesel
Engine Hours:  1956
Drive Type:  Direct
Engine Power:  480 hp
Engine 2: Starboard
Engine Brand:  Yanmar
Engine Model:  6LY3-ETP
Engine Type:  Inline 6 Cylinder Turbo Diesel
Engine/Fuel Type:  Diesel
Engine Hours:  1953
Drive Type:  Direct
Engine Power:  480 hp

Cruising Speed:  15-18 knots
Maximum Speed:  20+ knots

Tanks

Fresh Water Tanks:  2 x 185 gals., 370 gals. total, stainless steel
Fuel Tanks:  2 x 300 gals., 600 gals. total, aluminum
Holding Tanks:  1 x 90 gals., fiberglass

Accommodations
Number of single berths:  2
Number of double berths:  3
Number of cabins:  2
Number of heads:  2

Electronics
Navigation center
Radar
Depth Sounder
Autopilot
Wind speed and direction
VHF
Repeater(s)
Chart Plotter
Compass
GPS
CD player
Thermal Camera

Inside Equipment
Washer/Dryer – GE Stacked, Vented 220v
Water Heater – Torrid 20 gal stainless, new
Air conditioning – CruiseAir reverse-cycle (3)
Battery charger – 4000 watt Mastervolt Combi inverter/200a charger, Mastervolt automatic battery charger
Stern thruster – Side Power
Bow thruster – Side Power
Heating – Reverse Cycle
Electric bilge pumps – (4) Rule 2000 gph bilge pump and float
Range/Oven – 3-burner, Force 10 Propane
Refrigerator – GE 14 cu. ft.
Heads – (2) Vacuflush
Microwave Oven – GE SS

Electrical Equipment
Generator – 12kw Northern Lights
Inverter – MasterVolt 4000/12/200 Combi
Shore Power Inlet – (2) 50A
Electrical System – 12VDC

Outside Equipment/Extras

Davit – Steelhead SM1000R
Swimming ladder
Electric windlass – Maxwell Liberty
Admiral Stidd helm chair on centerline
Raymarine 12″ hybrid touch color chartplotter
AIS System integrated with chartplotters
Raymarine autopilot control head
Raymarine Multifunction display (2)
Ritchie compass
Raymarine VHF
Yanmar MFD engine interface (2)
Sidepower bow and stern thrusters joystick controls
Lenco trim tab controls
Maxwell Liberty windlass control
Fusion stereo with 2 zones
Clarion speakers (2)
Teak decking on flybridge
L-settee cushions with Sunbrella
Magna Propane Grill

Covers

Extensive canvas package includes Sunbrella bimini and covers for the full flybridge, helm console, helm chair, grill, tender, and caprail in addition to inside mounted Textilene screens for the pilothouse.
